Thread: [PATCH] Tables node (pgAdmin4)

[PATCH] Tables node (pgAdmin4)

From

Murtuza Zabuawala

Date:

18 April 2016, 16:34:32

Hi,

Please find initial patch for tables node.

This patch includes below nodes,

1) Tables node

2) Columns node

3) Index node

4) Trigger node

5) Constraints node (Primary key & Unique constraints only) -- From: Harshal

6) Roles node -- From: Surinder

This patch also includes "VacuumSettings control" required by table node.

Please apply Fieldset Control UI patch sent earlier.

Please note that constraint node is still partial, It has Primary Key & Unique constraint working & integrated in tables node.

1) I have used initial patch of index constraints node from Harshal & further extend it it to work with table node.

[ Harshal will integrate rest of constraints in tables node, he is working on it.]

2) I have also used initial patches of rules node and VacuumSettings control from Surinder & further extend them it to work with table node.

Regards,

Murtuza Zabuawala
EnterpriseDB: http://www.enterprisedb.com
The Enterprise PostgreSQL Company

Attachment

tables_node_v1.patch.zip

Re: [PATCH] Tables node (pgAdmin4)

From

Harshal Dhumal

Date:

27 April 2016, 12:22:21

Hi,

PFA attached patches for table node and all table child nodes.

This patch includes below nodes,

1) Table node -- Initial patch by Murtuza, constraints compatibility by Harshal.

2) Column node -- by Murtuza.

3) Index node -- by Murtuza.

4) Trigger node -- by Murtuzz.

6) Rules node -- by Surinder.

7) Constraints nodes:

i] Index Constraint -- Initial patch by Harshal, Integration with table node by Murtuza.

ii] Foreign key -- Initial patch and Integration with table node by Harshal.

iii] Check constraint -- Initial patch and Integration with table node by Harshal.

iv] Exclusion constraint -- Initial patch and Integration with table node by Harshal.

Please apply patches in following order as all of them depends on each other.

Order: Table Node ----> Index constraint ---> remaining patches in any order.

Harshal Dhumal

Software Engineer

EenterpriseDB

On Mon, Apr 18, 2016 at 7:04 PM, Murtuza Zabuawala <murtuza.zabuawala@enterprisedb.com> wrote:

Hi,

Please find initial patch for tables node.

This patch includes below nodes,

1) Tables node
2) Columns node
3) Index node
4) Trigger node
5) Constraints node (Primary key & Unique constraints only) -- From: Harshal
6) Roles node -- From: Surinder

This patch also includes "VacuumSettings control" required by table node.

Please apply Fieldset Control UI patch sent earlier.

Please note that constraint node is still partial, It has Primary Key & Unique constraint working & integrated in tables node.

1) I have used initial patch of index constraints node from Harshal & further extend it it to work with table node.
[ Harshal will integrate rest of constraints in tables node, he is working on it.]

2) I have also used initial patches of rules node and VacuumSettings control from Surinder & further extend them it to work with table node.

--
Regards,
Murtuza Zabuawala
EnterpriseDB: http://www.enterprisedb.com
The Enterprise PostgreSQL Company

--
Sent via pgadmin-hackers mailing list (pgadmin-hackers@postgresql.org)
To make changes to your subscription:
http://www.postgresql.org/mailpref/pgadmin-hackers

Attachment

Re: [PATCH] Tables node (pgAdmin4)

From

Harshal Dhumal

Date:

27 April 2016, 12:52:16

Hi,

The exclusion constraint has minor validation issue (this won't block testing of patch). I'm closely working with Ashesh to fix this.

Harshal Dhumal

Software Engineer

EenterpriseDB

On Wed, Apr 27, 2016 at 2:52 PM, Harshal Dhumal <harshal.dhumal@enterprisedb.com> wrote:

Hi,

PFA attached patches for table node and all table child nodes.

This patch includes below nodes,

1) Table node                              -- Initial patch by Murtuza, constraints compatibility by Harshal.
2) Column node                           -- by Murtuza.
3) Index node                              -- by Murtuza.
4) Trigger node                            -- by Murtuzz.
6) Rules node    -- by Surinder.
7) Constraints nodes:
      i] Index Constraint                 -- Initial patch by Harshal, Integration with table node by Murtuza.
      ii] Foreign key                        -- Initial patch and Integration with table node by Harshal.
      iii] Check constraint                -- Initial patch and Integration with table node by Harshal.
      iv] Exclusion constraint           -- Initial patch and Integration with table node by Harshal.

Please apply patches in following order as all of them depends on each other.

Order: Table Node ----> Index constraint ---> remaining patches in any order.

--
Harshal Dhumal
Software Engineer

EenterpriseDB

On Mon, Apr 18, 2016 at 7:04 PM, Murtuza Zabuawala <murtuza.zabuawala@enterprisedb.com> wrote:
Hi,

Please find initial patch for tables node.

This patch includes below nodes,

1) Tables node
2) Columns node
3) Index node
4) Trigger node
5) Constraints node (Primary key & Unique constraints only) -- From: Harshal
6) Roles node -- From: Surinder

This patch also includes "VacuumSettings control" required by table node.

Please apply Fieldset Control UI patch sent earlier.

Please note that constraint node is still partial, It has Primary Key & Unique constraint working & integrated in tables node.

1) I have used initial patch of index constraints node from Harshal & further extend it it to work with table node.
[ Harshal will integrate rest of constraints in tables node, he is working on it.]

2) I have also used initial patches of rules node and VacuumSettings control from Surinder & further extend them it to work with table node.

--
Regards,
Murtuza Zabuawala
EnterpriseDB: http://www.enterprisedb.com
The Enterprise PostgreSQL Company

--
Sent via pgadmin-hackers mailing list (pgadmin-hackers@postgresql.org)
To make changes to your subscription:
http://www.postgresql.org/mailpref/pgadmin-hackers

Re: [PATCH] Tables node (pgAdmin4)

From

Thom Brown

Date:

27 April 2016, 16:00:49

On 27 April 2016 at 10:22, Harshal Dhumal
<harshal.dhumal@enterprisedb.com> wrote:
>
> Hi,
>
> PFA attached patches for table node and all table child nodes.
>
> This patch includes below nodes,
>
> 1) Table node                              -- Initial patch by Murtuza, constraints compatibility by Harshal.
> 2) Column node                           -- by Murtuza.
> 3) Index node                              -- by Murtuza.
> 4) Trigger node                            -- by Murtuzz.
> 6) Rules node                              -- by Surinder.
> 7) Constraints nodes:
>       i]  Index Constraint                 -- Initial patch by Harshal, Integration with table node by Murtuza.
>       ii] Foreign key                        -- Initial patch and Integration with table node by Harshal.
>       iii] Check constraint                -- Initial patch and Integration with table node by Harshal.
>       iv] Exclusion constraint           -- Initial patch and Integration with table node by Harshal.
>
> Please apply patches in following order as all of them depends on each other.
>
> Order:  Table Node ----> Index constraint ---> remaining patches in any order.
>
>

Nice work.  Here's some initial feedback from a very quick play around.

On the Create table editor, in the Advance tab (which should probably
be labelled "Advanced"), the Like section should grey out the "With *"
values if no relation is selected in the drop-down box.

The way primary keys are defined are kinda awkward.  It might be
useful to provide some kind of checkbox on the initial column list
that tells it which columns are involved in the primary key, then the
user could just select which ones they want.  If they want to refine
it, they could edit it in the Constraints > Primary Key section.

I'm getting weird spacing in the SQL output.  Here's an example:

CREATE UNLOGGED TABLE public.test
(
    id integer COLLATE pg_catalog."de_DE.utf8" NOT NULL DEFAULT -1,
    stuff text COLLATE pg_catalog."C.UTF-8" DEFAULT "hello",
    CONSTRAINT pk PRIMARY KEY (id, stuff) WITH (FILLFACTOR=33) DEFERRABLE
)
WITH (
    OIDS = TRUE,
    FILLFACTOR = 88,
    autovacuum_enabled = TRUE,
    autovacuum_analyze_scale_factor = 0.33,
    autovacuum_analyze_threshold = 30,
    autovacuum_freeze_max_age = 3333333,
    autovacuum_vacuum_cost_delay = 30,
    autovacuum_vacuum_cost_limit = 3,
    autovacuum_vacuum_scale_factor = 0.33,
    autovacuum_vacuum_threshold = 33,
    autovacuum_freeze_min_age = 3300000,
    autovacuum_freeze_table_age = 333000000
)
TABLESPACE pg_default;

ALTER TABLE public.test
    OWNER to thom;
GRANT ALL ON TABLE public.test TO thom;

COMMENT ON TABLE public.test
    IS 'This is just a test table';

COMMENT ON COLUMN public.test.id
    IS 'the main ID';

ALTER TABLE public.test
    ALTER COLUMN id
    SET (n_distinct='0.2');
COMMENT ON CONSTRAINT pk ON public.test
    IS 'primary key test'

Note there are 2 blank lines after the GRANT ALL ON TABLE line, and
none before the COMMENT ON CONSTRAINT line.

This SQL fails because collations aren't allowed on integer columns,
and the DEFAULT value for the column named stuff doesn't quote it as a
string literal, so it's looking for a column called "hello".

There's also no way to view the autovacuum options I defined other
than the SQL pane.

Thom

Re: [PATCH] Tables node (pgAdmin4)

From

Thom Brown

Date:

27 April 2016, 16:35:31

On 27 April 2016 at 13:43, Thom Brown <thom@linux.com> wrote:
> On 27 April 2016 at 10:22, Harshal Dhumal
> <harshal.dhumal@enterprisedb.com> wrote:
>>
>> Hi,
>>
>> PFA attached patches for table node and all table child nodes.
>>
>> This patch includes below nodes,
>>
>> 1) Table node                              -- Initial patch by Murtuza, constraints compatibility by Harshal.
>> 2) Column node                           -- by Murtuza.
>> 3) Index node                              -- by Murtuza.
>> 4) Trigger node                            -- by Murtuzz.
>> 6) Rules node                              -- by Surinder.
>> 7) Constraints nodes:
>>       i]  Index Constraint                 -- Initial patch by Harshal, Integration with table node by Murtuza.
>>       ii] Foreign key                        -- Initial patch and Integration with table node by Harshal.
>>       iii] Check constraint                -- Initial patch and Integration with table node by Harshal.
>>       iv] Exclusion constraint           -- Initial patch and Integration with table node by Harshal.
>>
>> Please apply patches in following order as all of them depends on each other.
>>
>> Order:  Table Node ----> Index constraint ---> remaining patches in any order.
>>
>>
>
> Nice work.  Here's some initial feedback from a very quick play around.
>
> On the Create table editor, in the Advance tab (which should probably
> be labelled "Advanced"), the Like section should grey out the "With *"
> values if no relation is selected in the drop-down box.
>
> The way primary keys are defined are kinda awkward.  It might be
> useful to provide some kind of checkbox on the initial column list
> that tells it which columns are involved in the primary key, then the
> user could just select which ones they want.  If they want to refine
> it, they could edit it in the Constraints > Primary Key section.
>
> I'm getting weird spacing in the SQL output.  Here's an example:
>
> CREATE UNLOGGED TABLE public.test
> (
>     id integer COLLATE pg_catalog."de_DE.utf8" NOT NULL DEFAULT -1,
>     stuff text COLLATE pg_catalog."C.UTF-8" DEFAULT "hello",
>     CONSTRAINT pk PRIMARY KEY (id, stuff) WITH (FILLFACTOR=33) DEFERRABLE
> )
> WITH (
>     OIDS = TRUE,
>     FILLFACTOR = 88,
>     autovacuum_enabled = TRUE,
>     autovacuum_analyze_scale_factor = 0.33,
>     autovacuum_analyze_threshold = 30,
>     autovacuum_freeze_max_age = 3333333,
>     autovacuum_vacuum_cost_delay = 30,
>     autovacuum_vacuum_cost_limit = 3,
>     autovacuum_vacuum_scale_factor = 0.33,
>     autovacuum_vacuum_threshold = 33,
>     autovacuum_freeze_min_age = 3300000,
>     autovacuum_freeze_table_age = 333000000
> )
> TABLESPACE pg_default;
>
> ALTER TABLE public.test
>     OWNER to thom;
> GRANT ALL ON TABLE public.test TO thom;
>
>
> COMMENT ON TABLE public.test
>     IS 'This is just a test table';
>
> COMMENT ON COLUMN public.test.id
>     IS 'the main ID';
>
> ALTER TABLE public.test
>     ALTER COLUMN id
>     SET (n_distinct='0.2');
> COMMENT ON CONSTRAINT pk ON public.test
>     IS 'primary key test'
>
> Note there are 2 blank lines after the GRANT ALL ON TABLE line, and
> none before the COMMENT ON CONSTRAINT line.
>
> This SQL fails because collations aren't allowed on integer columns,
> and the DEFAULT value for the column named stuff doesn't quote it as a
> string literal, so it's looking for a column called "hello".
>
> There's also no way to view the autovacuum options I defined other
> than the SQL pane.

A couple more:

If I go to create a new table, give it a name, select a table to
inherit from, and then do nothing else, I get an error:

ERROR: syntax error at or near "INHERITS"
LINE 2: INHERITS (test)
^

This is because no column list was provided, and in this case, an
empty one would be needed.  So instead of:

CREATE TABLE public.test2
(
)
    INHERITS (test)
WITH (
    OIDS = FALSE
)
TABLESPACE pg_default;

It should be:

CREATE TABLE public.test2
    INHERITS (test)
WITH (
    OIDS = FALSE
)
TABLESPACE pg_default;


If I go to create another new table, give it a name, and then in the
Like section on the Advance tab, I select a table, and enable each of
the With * options, the following SQL is produced:

CREATE TABLE public.test2
    LIKE public.test
        INCLUDING DEFAULTS
        INCLUDING CONSTRAINTS
        INCLUDING INDEXES
        INCLUDING STORAGE
        INCLUDING COMMENTSWITH (
    OIDS = FALSE
)
TABLESPACE pg_default;

The LIKE statement should appear in the column list section, so should
be surrounded in parentheses.  Also, the WITH statement here is not on
a new line.

So this should be:

CREATE TABLE public.test2
(
    LIKE public.test
        INCLUDING DEFAULTS
        INCLUDING CONSTRAINTS
        INCLUDING INDEXES
        INCLUDING STORAGE
        INCLUDING COMMENTS
)
WITH (
    OIDS = FALSE
)
TABLESPACE pg_default;

Regards

Thom

Re: [PATCH] Tables node (pgAdmin4)

From

Murtuza Zabuawala

Date:

28 April 2016, 08:11:16

Hi Thom,

Thank you for your inputs, Will work on it & send updated patch again.


Regards,
Murtuza


> On 27-Apr-2016, at 7:04 pm, Thom Brown <thom@linux.com> wrote:
>
> On 27 April 2016 at 13:43, Thom Brown <thom@linux.com> wrote:
>> On 27 April 2016 at 10:22, Harshal Dhumal
>> <harshal.dhumal@enterprisedb.com> wrote:
>>>
>>> Hi,
>>>
>>> PFA attached patches for table node and all table child nodes.
>>>
>>> This patch includes below nodes,
>>>
>>> 1) Table node                              -- Initial patch by Murtuza, constraints compatibility by Harshal.
>>> 2) Column node                           -- by Murtuza.
>>> 3) Index node                              -- by Murtuza.
>>> 4) Trigger node                            -- by Murtuzz.
>>> 6) Rules node                              -- by Surinder.
>>> 7) Constraints nodes:
>>>      i]  Index Constraint                 -- Initial patch by Harshal, Integration with table node by Murtuza.
>>>      ii] Foreign key                        -- Initial patch and Integration with table node by Harshal.
>>>      iii] Check constraint                -- Initial patch and Integration with table node by Harshal.
>>>      iv] Exclusion constraint           -- Initial patch and Integration with table node by Harshal.
>>>
>>> Please apply patches in following order as all of them depends on each other.
>>>
>>> Order:  Table Node ----> Index constraint ---> remaining patches in any order.
>>>
>>>
>>
>> Nice work.  Here's some initial feedback from a very quick play around.
>>
>> On the Create table editor, in the Advance tab (which should probably
>> be labelled "Advanced"), the Like section should grey out the "With *"
>> values if no relation is selected in the drop-down box.
>>
>> The way primary keys are defined are kinda awkward.  It might be
>> useful to provide some kind of checkbox on the initial column list
>> that tells it which columns are involved in the primary key, then the
>> user could just select which ones they want.  If they want to refine
>> it, they could edit it in the Constraints > Primary Key section.
>>
>> I'm getting weird spacing in the SQL output.  Here's an example:
>>
>> CREATE UNLOGGED TABLE public.test
>> (
>>    id integer COLLATE pg_catalog."de_DE.utf8" NOT NULL DEFAULT -1,
>>    stuff text COLLATE pg_catalog."C.UTF-8" DEFAULT "hello",
>>    CONSTRAINT pk PRIMARY KEY (id, stuff) WITH (FILLFACTOR=33) DEFERRABLE
>> )
>> WITH (
>>    OIDS = TRUE,
>>    FILLFACTOR = 88,
>>    autovacuum_enabled = TRUE,
>>    autovacuum_analyze_scale_factor = 0.33,
>>    autovacuum_analyze_threshold = 30,
>>    autovacuum_freeze_max_age = 3333333,
>>    autovacuum_vacuum_cost_delay = 30,
>>    autovacuum_vacuum_cost_limit = 3,
>>    autovacuum_vacuum_scale_factor = 0.33,
>>    autovacuum_vacuum_threshold = 33,
>>    autovacuum_freeze_min_age = 3300000,
>>    autovacuum_freeze_table_age = 333000000
>> )
>> TABLESPACE pg_default;
>>
>> ALTER TABLE public.test
>>    OWNER to thom;
>> GRANT ALL ON TABLE public.test TO thom;
>>
>>
>> COMMENT ON TABLE public.test
>>    IS 'This is just a test table';
>>
>> COMMENT ON COLUMN public.test.id
>>    IS 'the main ID';
>>
>> ALTER TABLE public.test
>>    ALTER COLUMN id
>>    SET (n_distinct='0.2');
>> COMMENT ON CONSTRAINT pk ON public.test
>>    IS 'primary key test'
>>
>> Note there are 2 blank lines after the GRANT ALL ON TABLE line, and
>> none before the COMMENT ON CONSTRAINT line.
>>
>> This SQL fails because collations aren't allowed on integer columns,
>> and the DEFAULT value for the column named stuff doesn't quote it as a
>> string literal, so it's looking for a column called "hello".
>>
>> There's also no way to view the autovacuum options I defined other
>> than the SQL pane.
>
> A couple more:
>
> If I go to create a new table, give it a name, select a table to
> inherit from, and then do nothing else, I get an error:
>
> ERROR: syntax error at or near "INHERITS"
> LINE 2: INHERITS (test)
> ^
>
> This is because no column list was provided, and in this case, an
> empty one would be needed.  So instead of:
>
> CREATE TABLE public.test2
> (
> )
>    INHERITS (test)
> WITH (
>    OIDS = FALSE
> )
> TABLESPACE pg_default;
>
> It should be:
>
> CREATE TABLE public.test2
>    INHERITS (test)
> WITH (
>    OIDS = FALSE
> )
> TABLESPACE pg_default;
>
>
> If I go to create another new table, give it a name, and then in the
> Like section on the Advance tab, I select a table, and enable each of
> the With * options, the following SQL is produced:
>
> CREATE TABLE public.test2
>    LIKE public.test
>        INCLUDING DEFAULTS
>        INCLUDING CONSTRAINTS
>        INCLUDING INDEXES
>        INCLUDING STORAGE
>        INCLUDING COMMENTSWITH (
>    OIDS = FALSE
> )
> TABLESPACE pg_default;
>
> The LIKE statement should appear in the column list section, so should
> be surrounded in parentheses.  Also, the WITH statement here is not on
> a new line.
>
> So this should be:
>
> CREATE TABLE public.test2
> (
>    LIKE public.test
>        INCLUDING DEFAULTS
>        INCLUDING CONSTRAINTS
>        INCLUDING INDEXES
>        INCLUDING STORAGE
>        INCLUDING COMMENTS
> )
> WITH (
>    OIDS = FALSE
> )
> TABLESPACE pg_default;
>
> Regards
>
> Thom

Re: [PATCH] Tables node (pgAdmin4)

From

Thom Brown

Date:

28 April 2016, 11:44:43

On 27 April 2016 at 14:34, Thom Brown <thom@linux.com> wrote:
> On 27 April 2016 at 13:43, Thom Brown <thom@linux.com> wrote:
>> On 27 April 2016 at 10:22, Harshal Dhumal
>> <harshal.dhumal@enterprisedb.com> wrote:
>>>
>>> Hi,
>>>
>>> PFA attached patches for table node and all table child nodes.
>>>
>>> This patch includes below nodes,
>>>
>>> 1) Table node                              -- Initial patch by Murtuza, constraints compatibility by Harshal.
>>> 2) Column node                           -- by Murtuza.
>>> 3) Index node                              -- by Murtuza.
>>> 4) Trigger node                            -- by Murtuzz.
>>> 6) Rules node                              -- by Surinder.
>>> 7) Constraints nodes:
>>>       i]  Index Constraint                 -- Initial patch by Harshal, Integration with table node by Murtuza.
>>>       ii] Foreign key                        -- Initial patch and Integration with table node by Harshal.
>>>       iii] Check constraint                -- Initial patch and Integration with table node by Harshal.
>>>       iv] Exclusion constraint           -- Initial patch and Integration with table node by Harshal.
>>>
>>> Please apply patches in following order as all of them depends on each other.
>>>
>>> Order:  Table Node ----> Index constraint ---> remaining patches in any order.
>>>
>>>
>>
>> Nice work.  Here's some initial feedback from a very quick play around.
>>
>> On the Create table editor, in the Advance tab (which should probably
>> be labelled "Advanced"), the Like section should grey out the "With *"
>> values if no relation is selected in the drop-down box.
>>
>> The way primary keys are defined are kinda awkward.  It might be
>> useful to provide some kind of checkbox on the initial column list
>> that tells it which columns are involved in the primary key, then the
>> user could just select which ones they want.  If they want to refine
>> it, they could edit it in the Constraints > Primary Key section.
>>
>> I'm getting weird spacing in the SQL output.  Here's an example:
>>
>> CREATE UNLOGGED TABLE public.test
>> (
>>     id integer COLLATE pg_catalog."de_DE.utf8" NOT NULL DEFAULT -1,
>>     stuff text COLLATE pg_catalog."C.UTF-8" DEFAULT "hello",
>>     CONSTRAINT pk PRIMARY KEY (id, stuff) WITH (FILLFACTOR=33) DEFERRABLE
>> )
>> WITH (
>>     OIDS = TRUE,
>>     FILLFACTOR = 88,
>>     autovacuum_enabled = TRUE,
>>     autovacuum_analyze_scale_factor = 0.33,
>>     autovacuum_analyze_threshold = 30,
>>     autovacuum_freeze_max_age = 3333333,
>>     autovacuum_vacuum_cost_delay = 30,
>>     autovacuum_vacuum_cost_limit = 3,
>>     autovacuum_vacuum_scale_factor = 0.33,
>>     autovacuum_vacuum_threshold = 33,
>>     autovacuum_freeze_min_age = 3300000,
>>     autovacuum_freeze_table_age = 333000000
>> )
>> TABLESPACE pg_default;
>>
>> ALTER TABLE public.test
>>     OWNER to thom;
>> GRANT ALL ON TABLE public.test TO thom;
>>
>>
>> COMMENT ON TABLE public.test
>>     IS 'This is just a test table';
>>
>> COMMENT ON COLUMN public.test.id
>>     IS 'the main ID';
>>
>> ALTER TABLE public.test
>>     ALTER COLUMN id
>>     SET (n_distinct='0.2');
>> COMMENT ON CONSTRAINT pk ON public.test
>>     IS 'primary key test'
>>
>> Note there are 2 blank lines after the GRANT ALL ON TABLE line, and
>> none before the COMMENT ON CONSTRAINT line.
>>
>> This SQL fails because collations aren't allowed on integer columns,
>> and the DEFAULT value for the column named stuff doesn't quote it as a
>> string literal, so it's looking for a column called "hello".
>>
>> There's also no way to view the autovacuum options I defined other
>> than the SQL pane.
>
> A couple more:
>
> If I go to create a new table, give it a name, select a table to
> inherit from, and then do nothing else, I get an error:
>
> ERROR: syntax error at or near "INHERITS"
> LINE 2: INHERITS (test)
> ^
>
> This is because no column list was provided, and in this case, an
> empty one would be needed.  So instead of:
>
> CREATE TABLE public.test2
> (
> )
>     INHERITS (test)
> WITH (
>     OIDS = FALSE
> )
> TABLESPACE pg_default;
>
> It should be:
>
> CREATE TABLE public.test2
>     INHERITS (test)
> WITH (
>     OIDS = FALSE
> )
> TABLESPACE pg_default;

Correction, these should be the other way around.

Thom

Re: [PATCH] Tables node (pgAdmin4)

From

Dave Page

Date:

28 April 2016, 11:53:06


> On 27 Apr 2016, at 13:43, Thom Brown <thom@linux.com> wrote:
>
> On 27 April 2016 at 10:22, Harshal Dhumal
> <harshal.dhumal@enterprisedb.com> wrote:
>>
>> Hi,
>>
>> PFA attached patches for table node and all table child nodes.
>>
>> This patch includes below nodes,
>>
>> 1) Table node                              -- Initial patch by Murtuza, constraints compatibility by Harshal.
>> 2) Column node                           -- by Murtuza.
>> 3) Index node                              -- by Murtuza.
>> 4) Trigger node                            -- by Murtuzz.
>> 6) Rules node                              -- by Surinder.
>> 7) Constraints nodes:
>>      i]  Index Constraint                 -- Initial patch by Harshal, Integration with table node by Murtuza.
>>      ii] Foreign key                        -- Initial patch and Integration with table node by Harshal.
>>      iii] Check constraint                -- Initial patch and Integration with table node by Harshal.
>>      iv] Exclusion constraint           -- Initial patch and Integration with table node by Harshal.
>>
>> Please apply patches in following order as all of them depends on each other.
>>
>> Order:  Table Node ----> Index constraint ---> remaining patches in any order.
>
> Nice work.  Here's some initial feedback from a very quick play around.
>
> On the Create table editor, in the Advance tab (which should probably
> be labelled "Advanced"), the Like section should grey out the "With *"
> values if no relation is selected in the drop-down box.
>
> The way primary keys are defined are kinda awkward.  It might be
> useful to provide some kind of checkbox on the initial column list
> that tells it which columns are involved in the primary key, then the
> user could just select which ones they want.  If they want to refine
> it, they could edit it in the Constraints > Primary Key section.

If the design we did has been properly followed (I can't check right now), then that's exactly how it should be
working.Harshal?

Arun Kollan and I spent a lot of time redesigning the table dialogue to make it as quick and efficient to use as
possible.There will likely be minor deviations from that design to ensure consistency with the way other parts of the
apphave turned out, but the basic principles should be there.

>
> I'm getting weird spacing in the SQL output.  Here's an example:
>
> CREATE UNLOGGED TABLE public.test
> (
>    id integer COLLATE pg_catalog."de_DE.utf8" NOT NULL DEFAULT -1,
>    stuff text COLLATE pg_catalog."C.UTF-8" DEFAULT "hello",
>    CONSTRAINT pk PRIMARY KEY (id, stuff) WITH (FILLFACTOR=33) DEFERRABLE
> )
> WITH (
>    OIDS = TRUE,
>    FILLFACTOR = 88,
>    autovacuum_enabled = TRUE,
>    autovacuum_analyze_scale_factor = 0.33,
>    autovacuum_analyze_threshold = 30,
>    autovacuum_freeze_max_age = 3333333,
>    autovacuum_vacuum_cost_delay = 30,
>    autovacuum_vacuum_cost_limit = 3,
>    autovacuum_vacuum_scale_factor = 0.33,
>    autovacuum_vacuum_threshold = 33,
>    autovacuum_freeze_min_age = 3300000,
>    autovacuum_freeze_table_age = 333000000
> )
> TABLESPACE pg_default;
>
> ALTER TABLE public.test
>    OWNER to thom;
> GRANT ALL ON TABLE public.test TO thom;
>
>
> COMMENT ON TABLE public.test
>    IS 'This is just a test table';
>
> COMMENT ON COLUMN public.test.id
>    IS 'the main ID';
>
> ALTER TABLE public.test
>    ALTER COLUMN id
>    SET (n_distinct='0.2');
> COMMENT ON CONSTRAINT pk ON public.test
>    IS 'primary key test'
>
> Note there are 2 blank lines after the GRANT ALL ON TABLE line, and
> none before the COMMENT ON CONSTRAINT line.
>
> This SQL fails because collations aren't allowed on integer columns,
> and the DEFAULT value for the column named stuff doesn't quote it as a
> string literal, so it's looking for a column called "hello".
>
> There's also no way to view the autovacuum options I defined other
> than the SQL pane.
>
> Thom
>
>
> --
> Sent via pgadmin-hackers mailing list (pgadmin-hackers@postgresql.org)
> To make changes to your subscription:
> http://www.postgresql.org/mailpref/pgadmin-hackers

Re: [PATCH] Tables node (pgAdmin4)

From

Khushboo Vashi

Date:

28 April 2016, 13:41:50

Hi,

Please find the review comments so far:

1. On the Table Collection node, The fields in the grid should be Name, Owner and Comments. OID is not required. Please follow same for the other Nodes like Index, Constraints etc.

2. While Updating the Table, Add any column as well as Inherits any table, then the check the SQL tab.

ALTER TABLE SQL should be come in the new line

Current SQL Tab:

ALTER TABLE pem.agent_heartbeat
INHERIT pem.alert_history;ALTER TABLE pem.agent_heartbeat
ADD COLUMN test bigint;

3. While Creating/updating table, if the Schema is other than selected one, then after saving the table, it is not falling under the same schema. And also in update mode it gives an error.
4. Unlogged setting does not honor the change of value.

5. Please Check SQL tab for all the Nodes as most of them having problem of No blank lines/More than one Blank Lines/Blank Lines at the end etc.

6. Creating Table with auto_vacuum and updating only one field then wrong SQL is generated.

WITH (
    OIDS = TRUE,
    FILLFACTOR = 12,
    autovacuum_enabled = TRUE,
,
    autovacuum_vacuum_cost_delay = 21
)

7. Same as toast
WITH (
    OIDS = TRUE,
    FILLFACTOR = 12,
    autovacuum_enabled = TRUE,
    toast.autovacuum_enabled = TRUE,
    autovacuum_analyze_scale_factor = 1,
    autovacuum_analyze_threshold = 2,
    autovacuum_freeze_max_age = 2,
,
    toast.autovacuum_vacuum_cost_limit = 2,
    toast.autovacuum_freeze_min_age = 4
)

8. Sometimes while creating table and checking sql table, below error is coming

File "/home/khushboo/Projects/pgadmin4/web/pgadmin/browser/server_groups/servers/databases/schemas/tables/__init__.py", line 1060, in properties
data = res['rows'][0]
IndexError: list index out of range

9. Please check all the Grid table columns. It should not be expanded while editing directly into the grid. For ref: Check constraint grid

10. Constraint Nodes are not covered yet due to validation issue on which Harshal is working.

11. While creating the table if auto-vacuume has been enabled by user, then it should stay enabled in Edit mode also. Currently it is not.

12 .If I just enable 'custom auto activated' and don't update anything then SQL tab is generating below SQL which is wrong.

ALTER TABLE pem.khushboo1 SET (

);

13. IF I Change privileges from pem_agent to agent1 then the SQL i like below, which is not corrent

REVOKE ALL ON TABLE pem.khushboo1 FROM agent1;
GRANT SELECT ON TABLE pem.khushboo1 TO agent1;

14. In check constraint, change "Don't Validate" to Validated? Please refer Domain Constraint for the same.

15. SQL for the Column is coming as below, which is not correct.

<html><head></head><body>-- Column: col3 -- ALTER TABLE pem.khushboo1 DROP COLUMN col3; ALTER TABLE pem.khushboo1 ADD COLUMN col3 integer NOT NULL;</body></html>

16. While updating table columns from column node. Below SQL generating an error.

ALTER TABLE pem.khushboo1
ALTER COLUMN col2 numeric(1, 1);

17. After deleting any column, the properties of the another column of the same table doesn't show up. Gives below error.

TypeError: self.canDrop.apply is not a function

...lf.canDrop) ? function() { return self.canDrop.apply(self, arguments); } : fals

18. Table Node : Exclusion constraint : Grid validates DESC instead of operator.

19. Please check validation of the Exclusion control, as some JS error is coming and due to this, we can not close the dialogue.

The select2('destroy') method was called on an element that is not using Select2.

...this.$dropdown.on(d.join(" "),function(a){a.stopPropagation()})},a}),b.define("s...

select2....min.js (line 3)

TypeError: c is undefined

20. While updating the comments field of the Index node, it throws below error:

TypeError: obj is null

} else if ((obj.sessChanged && obj.sessChanged()) || isNew) {

21. Job Trigger : Validation missing, so user can't get an idea what is missing while checking the SQL tab
22. For the reverse Engineering SQL tab, the constraints should be start with Schema.Table.Constraint. Please follow same path for all the nodes.

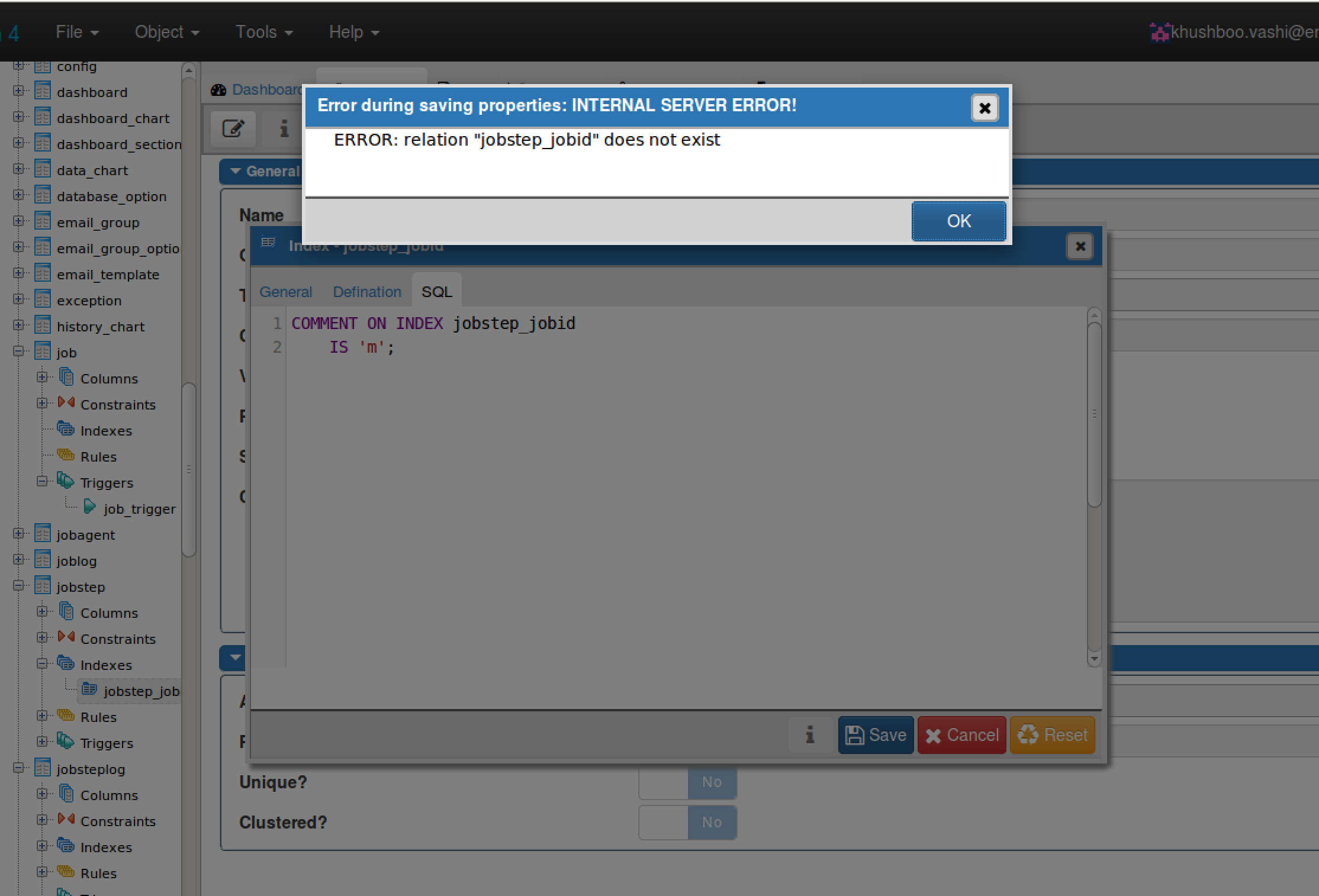

23. Indexes : Comments can not be updated. Please check the attached screen-shot for reference.
24. Spelling mistake of 'Definition' in Indexes.

NOTE: I haven't check Constraints properly due to validation issue. Also I have checked only functional flow, I will review the code today evening or tomorrow.

Thanks,

Khushboo

On Wed, Apr 27, 2016 at 2:52 PM, Harshal Dhumal <harshal.dhumal@enterprisedb.com> wrote:

Hi,

PFA attached patches for table node and all table child nodes.

This patch includes below nodes,

1) Table node                              -- Initial patch by Murtuza, constraints compatibility by Harshal.
2) Column node                           -- by Murtuza.
3) Index node                              -- by Murtuza.
4) Trigger node                            -- by Murtuzz.
6) Rules node    -- by Surinder.
7) Constraints nodes:
      i] Index Constraint                 -- Initial patch by Harshal, Integration with table node by Murtuza.
      ii] Foreign key                        -- Initial patch and Integration with table node by Harshal.
      iii] Check constraint                -- Initial patch and Integration with table node by Harshal.
      iv] Exclusion constraint           -- Initial patch and Integration with table node by Harshal.

Please apply patches in following order as all of them depends on each other.

Order: Table Node ----> Index constraint ---> remaining patches in any order.

--
Harshal Dhumal
Software Engineer

EenterpriseDB

On Mon, Apr 18, 2016 at 7:04 PM, Murtuza Zabuawala <murtuza.zabuawala@enterprisedb.com> wrote:
Hi,

Please find initial patch for tables node.

This patch includes below nodes,

1) Tables node
2) Columns node
3) Index node
4) Trigger node
5) Constraints node (Primary key & Unique constraints only) -- From: Harshal
6) Roles node -- From: Surinder

This patch also includes "VacuumSettings control" required by table node.

Please apply Fieldset Control UI patch sent earlier.

Please note that constraint node is still partial, It has Primary Key & Unique constraint working & integrated in tables node.

1) I have used initial patch of index constraints node from Harshal & further extend it it to work with table node.
[ Harshal will integrate rest of constraints in tables node, he is working on it.]

2) I have also used initial patches of rules node and VacuumSettings control from Surinder & further extend them it to work with table node.

--
Regards,
Murtuza Zabuawala
EnterpriseDB: http://www.enterprisedb.com
The Enterprise PostgreSQL Company

--
Sent via pgadmin-hackers mailing list (pgadmin-hackers@postgresql.org)
To make changes to your subscription:
http://www.postgresql.org/mailpref/pgadmin-hackers

--
Sent via pgadmin-hackers mailing list (pgadmin-hackers@postgresql.org)
To make changes to your subscription:
http://www.postgresql.org/mailpref/pgadmin-hackers

Attachment

Screen Shot 2016-04-28 at 2.42.28 pm.png

Re: [PATCH] Tables node (pgAdmin4)

From

Harshal Dhumal

Date:

28 April 2016, 17:22:41

Harshal Dhumal

Software Engineer

EenterpriseDB

On Thu, Apr 28, 2016 at 2:22 PM, Dave Page <dpage@pgadmin.org> wrote:

> On 27 Apr 2016, at 13:43, Thom Brown <thom@linux.com> wrote:
>
> On 27 April 2016 at 10:22, Harshal Dhumal
> <harshal.dhumal@enterprisedb.com> wrote:
>>
>> Hi,
>>
>> PFA attached patches for table node and all table child nodes.
>>
>> This patch includes below nodes,
>>
>> 1) Table node -- Initial patch by Murtuza, constraints compatibility by Harshal.
>> 2) Column node -- by Murtuza.
>> 3) Index node -- by Murtuza.
>> 4) Trigger node -- by Murtuzz.
>> 6) Rules node -- by Surinder.
>> 7) Constraints nodes:
>> i] Index Constraint -- Initial patch by Harshal, Integration with table node by Murtuza.
>> ii] Foreign key -- Initial patch and Integration with table node by Harshal.
>> iii] Check constraint -- Initial patch and Integration with table node by Harshal.
>> iv] Exclusion constraint -- Initial patch and Integration with table node by Harshal.
>>
>> Please apply patches in following order as all of them depends on each other.
>>
>> Order: Table Node ----> Index constraint ---> remaining patches in any order.
>
> Nice work. Here's some initial feedback from a very quick play around.
>
> On the Create table editor, in the Advance tab (which should probably
> be labelled "Advanced"), the Like section should grey out the "With *"
> values if no relation is selected in the drop-down box.
>
> The way primary keys are defined are kinda awkward. It might be
> useful to provide some kind of checkbox on the initial column list
> that tells it which columns are involved in the primary key, then the
> user could just select which ones they want. If they want to refine
> it, they could edit it in the Constraints > Primary Key section.

If the design we did has been properly followed (I can't check right now), then that's exactly how it should be working. Harshal?

I can't comment on entire table node ui design as I haven't worked on it except the constraints nodes.

In constraints nodes I can see that order of some properties in tabs is not same as that of design (this can be easily changed by reordering schema properties of constraints node).

And also currently there is no support to show two or more controls inline in dialog and where in design for e.g In Unique key constraint under columns tab the "Order" and "Null's order" are shown inline (there are many of like this). So all controls are rendered on separate row which is not as per design.

Arun Kollan and I spent a lot of time redesigning the table dialogue to make it as quick and efficient to use as possible. There will likely be minor deviations from that design to ensure consistency with the way other parts of the app have turned out, but the basic principles should be there.

>
> I'm getting weird spacing in the SQL output. Here's an example:
>
> CREATE UNLOGGED TABLE public.test
> (
> id integer COLLATE pg_catalog."de_DE.utf8" NOT NULL DEFAULT -1,
> stuff text COLLATE pg_catalog."C.UTF-8" DEFAULT "hello",
> CONSTRAINT pk PRIMARY KEY (id, stuff) WITH (FILLFACTOR=33) DEFERRABLE
> )
> WITH (
> OIDS = TRUE,
> FILLFACTOR = 88,
> autovacuum_enabled = TRUE,
> autovacuum_analyze_scale_factor = 0.33,
> autovacuum_analyze_threshold = 30,
> autovacuum_freeze_max_age = 3333333,
> autovacuum_vacuum_cost_delay = 30,
> autovacuum_vacuum_cost_limit = 3,
> autovacuum_vacuum_scale_factor = 0.33,
> autovacuum_vacuum_threshold = 33,
> autovacuum_freeze_min_age = 3300000,
> autovacuum_freeze_table_age = 333000000
> )
> TABLESPACE pg_default;
>
> ALTER TABLE public.test
> OWNER to thom;
> GRANT ALL ON TABLE public.test TO thom;
>
>
> COMMENT ON TABLE public.test
> IS 'This is just a test table';
>
> COMMENT ON COLUMN public.test.id
> IS 'the main ID';
>
> ALTER TABLE public.test
> ALTER COLUMN id
> SET (n_distinct='0.2');
> COMMENT ON CONSTRAINT pk ON public.test
> IS 'primary key test'
>
> Note there are 2 blank lines after the GRANT ALL ON TABLE line, and
> none before the COMMENT ON CONSTRAINT line.
>
> This SQL fails because collations aren't allowed on integer columns,
> and the DEFAULT value for the column named stuff doesn't quote it as a
> string literal, so it's looking for a column called "hello".
>
> There's also no way to view the autovacuum options I defined other
> than the SQL pane.
>
> Thom
>
>
> --
> Sent via pgadmin-hackers mailing list (pgadmin-hackers@postgresql.org)
> To make changes to your subscription:
> http://www.postgresql.org/mailpref/pgadmin-hackers

Re: [PATCH] Tables node (pgAdmin4)

From

Harshal Dhumal

Date:

07 May 2016, 17:03:56

Hi,

PFA updated patches for table and it's child nodes.

Please apply patches in following order as all of them depends on each other.

Order: Table Node ----> Index constraint ---> remaining patches in any order.

Harshal Dhumal

Software Engineer

EenterpriseDB

On Thu, Apr 28, 2016 at 2:14 PM, Thom Brown <thom@linux.com> wrote:

On 27 April 2016 at 14:34, Thom Brown <thom@linux.com> wrote:
> On 27 April 2016 at 13:43, Thom Brown <thom@linux.com> wrote:
>> On 27 April 2016 at 10:22, Harshal Dhumal
>> <harshal.dhumal@enterprisedb.com> wrote:
>>>
>>> Hi,
>>>
>>> PFA attached patches for table node and all table child nodes.
>>>
>>> This patch includes below nodes,
>>>
>>> 1) Table node -- Initial patch by Murtuza, constraints compatibility by Harshal.
>>> 2) Column node -- by Murtuza.
>>> 3) Index node -- by Murtuza.
>>> 4) Trigger node -- by Murtuzz.
>>> 6) Rules node -- by Surinder.
>>> 7) Constraints nodes:
>>> i] Index Constraint -- Initial patch by Harshal, Integration with table node by Murtuza.
>>> ii] Foreign key -- Initial patch and Integration with table node by Harshal.
>>> iii] Check constraint -- Initial patch and Integration with table node by Harshal.
>>> iv] Exclusion constraint -- Initial patch and Integration with table node by Harshal.
>>>
>>> Please apply patches in following order as all of them depends on each other.
>>>
>>> Order: Table Node ----> Index constraint ---> remaining patches in any order.
>>>
>>>
>>
>> Nice work. Here's some initial feedback from a very quick play around.
>>
>> On the Create table editor, in the Advance tab (which should probably
>> be labelled "Advanced"), the Like section should grey out the "With *"
>> values if no relation is selected in the drop-down box.
>>
>> The way primary keys are defined are kinda awkward. It might be
>> useful to provide some kind of checkbox on the initial column list
>> that tells it which columns are involved in the primary key, then the
>> user could just select which ones they want. If they want to refine
>> it, they could edit it in the Constraints > Primary Key section.
>>
>> I'm getting weird spacing in the SQL output. Here's an example:
>>
>> CREATE UNLOGGED TABLE public.test
>> (
>> id integer COLLATE pg_catalog."de_DE.utf8" NOT NULL DEFAULT -1,
>> stuff text COLLATE pg_catalog."C.UTF-8" DEFAULT "hello",
>> CONSTRAINT pk PRIMARY KEY (id, stuff) WITH (FILLFACTOR=33) DEFERRABLE
>> )
>> WITH (
>> OIDS = TRUE,
>> FILLFACTOR = 88,
>> autovacuum_enabled = TRUE,
>> autovacuum_analyze_scale_factor = 0.33,
>> autovacuum_analyze_threshold = 30,
>> autovacuum_freeze_max_age = 3333333,
>> autovacuum_vacuum_cost_delay = 30,
>> autovacuum_vacuum_cost_limit = 3,
>> autovacuum_vacuum_scale_factor = 0.33,
>> autovacuum_vacuum_threshold = 33,
>> autovacuum_freeze_min_age = 3300000,
>> autovacuum_freeze_table_age = 333000000
>> )
>> TABLESPACE pg_default;
>>
>> ALTER TABLE public.test
>> OWNER to thom;
>> GRANT ALL ON TABLE public.test TO thom;
>>
>>
>> COMMENT ON TABLE public.test
>> IS 'This is just a test table';
>>
>> COMMENT ON COLUMN public.test.id
>> IS 'the main ID';
>>
>> ALTER TABLE public.test
>> ALTER COLUMN id
>> SET (n_distinct='0.2');
>> COMMENT ON CONSTRAINT pk ON public.test
>> IS 'primary key test'
>>
>> Note there are 2 blank lines after the GRANT ALL ON TABLE line, and
>> none before the COMMENT ON CONSTRAINT line.
>>
>> This SQL fails because collations aren't allowed on integer columns,
>> and the DEFAULT value for the column named stuff doesn't quote it as a
>> string literal, so it's looking for a column called "hello".
>>
>> There's also no way to view the autovacuum options I defined other
>> than the SQL pane.
>
> A couple more:
>
> If I go to create a new table, give it a name, select a table to
> inherit from, and then do nothing else, I get an error:
>
> ERROR: syntax error at or near "INHERITS"
> LINE 2: INHERITS (test)
> ^
>
> This is because no column list was provided, and in this case, an
> empty one would be needed. So instead of:
>
> CREATE TABLE public.test2
> (
> )
> INHERITS (test)
> WITH (
> OIDS = FALSE
> )
> TABLESPACE pg_default;
>
> It should be:
>
> CREATE TABLE public.test2
> INHERITS (test)
> WITH (
> OIDS = FALSE
> )
> TABLESPACE pg_default;

Correction, these should be the other way around.

Thom

Attachment

Re: [PATCH] Tables node (pgAdmin4)

From

Harshal Dhumal

Date:

07 May 2016, 17:12:16

Hi,

Harshal Dhumal

Software Engineer

EenterpriseDB

On Wed, Apr 27, 2016 at 6:13 PM, Thom Brown <thom@linux.com> wrote:

On 27 April 2016 at 10:22, Harshal Dhumal
<harshal.dhumal@enterprisedb.com> wrote:
>
> Hi,
>
> PFA attached patches for table node and all table child nodes.
>
> This patch includes below nodes,
>
> 1) Table node -- Initial patch by Murtuza, constraints compatibility by Harshal.
> 2) Column node -- by Murtuza.
> 3) Index node -- by Murtuza.
> 4) Trigger node -- by Murtuzz.
> 6) Rules node -- by Surinder.
> 7) Constraints nodes:
> i] Index Constraint -- Initial patch by Harshal, Integration with table node by Murtuza.
> ii] Foreign key -- Initial patch and Integration with table node by Harshal.
> iii] Check constraint -- Initial patch and Integration with table node by Harshal.
> iv] Exclusion constraint -- Initial patch and Integration with table node by Harshal.
>
> Please apply patches in following order as all of them depends on each other.
>
> Order: Table Node ----> Index constraint ---> remaining patches in any order.
>
>

Nice work. Here's some initial feedback from a very quick play around.

On the Create table editor, in the Advance tab (which should probably
be labelled "Advanced"), the Like section should grey out the "With *"
values if no relation is selected in the drop-down box.

Fixed

The way primary keys are defined are kinda awkward. It might be
useful to provide some kind of checkbox on the initial column list
that tells it which columns are involved in the primary key, then the
user could just select which ones they want. If they want to refine
it, they could edit it in the Constraints > Primary Key section.

I have added functionality. However check box will only be enabled in expanded mode of column (by clicking on edit button which at left side of delete button). To enable check box in grid mode this patch needs to be committed.

I'm getting weird spacing in the SQL output. Here's an example:

CREATE UNLOGGED TABLE public.test
(
id integer COLLATE pg_catalog."de_DE.utf8" NOT NULL DEFAULT -1,
stuff text COLLATE pg_catalog."C.UTF-8" DEFAULT "hello",
CONSTRAINT pk PRIMARY KEY (id, stuff) WITH (FILLFACTOR=33) DEFERRABLE
)
WITH (
OIDS = TRUE,
FILLFACTOR = 88,
autovacuum_enabled = TRUE,
autovacuum_analyze_scale_factor = 0.33,
autovacuum_analyze_threshold = 30,
autovacuum_freeze_max_age = 3333333,
autovacuum_vacuum_cost_delay = 30,
autovacuum_vacuum_cost_limit = 3,
autovacuum_vacuum_scale_factor = 0.33,
autovacuum_vacuum_threshold = 33,
autovacuum_freeze_min_age = 3300000,
autovacuum_freeze_table_age = 333000000
)
TABLESPACE pg_default;

ALTER TABLE public.test
OWNER to thom;
GRANT ALL ON TABLE public.test TO thom;

COMMENT ON TABLE public.test
IS 'This is just a test table';

COMMENT ON COLUMN public.test.id
IS 'the main ID';

ALTER TABLE public.test
ALTER COLUMN id
SET (n_distinct='0.2');
COMMENT ON CONSTRAINT pk ON public.test
IS 'primary key test'

Note there are 2 blank lines after the GRANT ALL ON TABLE line, and
none before the COMMENT ON CONSTRAINT line.

This SQL fails because collations aren't allowed on integer columns,
and the DEFAULT value for the column named stuff doesn't quote it as a
string literal, so it's looking for a column called "hello".

There's also no way to view the autovacuum options I defined other
than the SQL pane.

Fixed the spacing.

Thom

Re: [PATCH] Tables node (pgAdmin4)

From

Harshal Dhumal

Date:

07 May 2016, 17:14:00

Hi,

i have fixed all of below mentioned issues.

A couple more:

If I go to create a new table, give it a name, select a table to
inherit from, and then do nothing else, I get an error:

ERROR: syntax error at or near "INHERITS"
LINE 2: INHERITS (test)
^

This is because no column list was provided, and in this case, an
empty one would be needed. So instead of:

CREATE TABLE public.test2
(
)
INHERITS (test)
WITH (
OIDS = FALSE
)
TABLESPACE pg_default;

It should be:

CREATE TABLE public.test2
INHERITS (test)
WITH (
OIDS = FALSE
)
TABLESPACE pg_default;

If I go to create another new table, give it a name, and then in the
Like section on the Advance tab, I select a table, and enable each of
the With * options, the following SQL is produced:

CREATE TABLE public.test2
LIKE public.test
INCLUDING DEFAULTS
INCLUDING CONSTRAINTS
INCLUDING INDEXES
INCLUDING STORAGE
INCLUDING COMMENTSWITH (
OIDS = FALSE
)
TABLESPACE pg_default;

The LIKE statement should appear in the column list section, so should
be surrounded in parentheses. Also, the WITH statement here is not on
a new line.

So this should be:

CREATE TABLE public.test2
(
LIKE public.test
INCLUDING DEFAULTS
INCLUDING CONSTRAINTS
INCLUDING INDEXES
INCLUDING STORAGE
INCLUDING COMMENTS
)
WITH (
OIDS = FALSE
)
TABLESPACE pg_default;

Thom

Re: [PATCH] Tables node (pgAdmin4)

From

Harshal Dhumal

Date:

07 May 2016, 17:15:39

Hi,

Please find below responses.

Please find the review comments so far:

1. On the Table Collection node, The fields in the grid should be Name, Owner and Comments. OID is not required. Please follow same for the other Nodes like Index, Constraints etc.

Fixed

2. While Updating the Table, Add any column as well as Inherits any table, then the check the SQL tab.
ALTER TABLE SQL should be come in the new line

Current SQL Tab:

ALTER TABLE pem.agent_heartbeat
INHERIT pem.alert_history;ALTER TABLE pem.agent_heartbeat
ADD COLUMN test bigint;

Fixed

3. While Creating/updating table, if the Schema is other than selected one, then after saving the table, it is not falling under the same schema. And also in update mode it gives an error.

TODO

4. Unlogged setting does not honor the change of value.

Not reproducible.

5. Please Check SQL tab for all the Nodes as most of them having problem of No blank lines/More than one Blank Lines/Blank Lines at the end etc.

Fixed

6. Creating Table with auto_vacuum and updating only one field then wrong SQL is generated.
WITH (
    OIDS = TRUE,
    FILLFACTOR = 12,
    autovacuum_enabled = TRUE,
,
    autovacuum_vacuum_cost_delay = 21
)

Fixed.

7. Same as toast
WITH (
    OIDS = TRUE,
    FILLFACTOR = 12,
    autovacuum_enabled = TRUE,
    toast.autovacuum_enabled = TRUE,
    autovacuum_analyze_scale_factor = 1,
    autovacuum_analyze_threshold = 2,
    autovacuum_freeze_max_age = 2,
,
    toast.autovacuum_vacuum_cost_limit = 2,
    toast.autovacuum_freeze_min_age = 4
)

Fixed

8. Sometimes while creating table and checking sql table, below error is coming

File "/home/khushboo/Projects/pgadmin4/web/pgadmin/browser/server_groups/servers/databases/schemas/tables/__init__.py", line 1060, in properties
data = res['rows'][0]
IndexError: list index out of range

TODO. (Need exact steps to reproduce.)

9. Please check all the Grid table columns. It should not be expanded while editing directly into the grid. For ref: Check constraint grid

TODO

10. Constraint Nodes are not covered yet due to validation issue on which Harshal is working.

Done.

11. While creating the table if auto-vacuume has been enabled by user, then it should stay enabled in Edit mode also. Currently it is not.

Fixed

12 .If I just enable 'custom auto activated' and don't update anything then SQL tab is generating below SQL which is wrong.

ALTER TABLE pem.khushboo1 SET (

);

Fixed

13. IF I Change privileges from pem_agent to agent1 then the SQL i like below, which is not corrent

REVOKE ALL ON TABLE pem.khushboo1 FROM agent1;
GRANT SELECT ON TABLE pem.khushboo1 TO agent1;

Not reproducible Or please provide steps to reproduce.

14. In check constraint, change "Don't Validate" to Validated? Please refer Domain Constraint for the same.

Fixed.

15. SQL for the Column is coming as below, which is not correct.

<html><head></head><body>-- Column: col3 -- ALTER TABLE pem.khushboo1 DROP COLUMN col3; ALTER TABLE pem.khushboo1 ADD COLUMN col3 integer NOT NULL;</body></html>

Not reproducible Or please provide steps to reproduce.

16. While updating table columns from column node. Below SQL generating an error.

ALTER TABLE pem.khushboo1
ALTER COLUMN col2 numeric(1, 1);

Fixed

17. After deleting any column, the properties of the another column of the same table doesn't show up. Gives below error.

TypeError: self.canDrop.apply is not a function

...lf.canDrop) ? function() { return self.canDrop.apply(self, arguments); } : fals

This issue is already raised.

18. Table Node : Exclusion constraint : Grid validates DESC instead of operator.

Not reproducible.

19. Please check validation of the Exclusion control, as some JS error is coming and due to this, we can not close the dialogue.

The select2('destroy') method was called on an element that is not using Select2.

...this.$dropdown.on(d.join(" "),function(a){a.stopPropagation()})},a}),b.define("s...

select2....min.js (line 3)
TypeError: c is undefined

This is already fixed.

20. While updating the comments field of the Index node, it throws below error:

TypeError: obj is null

} else if ((obj.sessChanged && obj.sessChanged()) || isNew) {

This is already fixed.

21. Job Trigger : Validation missing, so user can't get an idea what is missing while checking the SQL tab

Fixed.

22. For the reverse Engineering SQL tab, the constraints should be start with Schema.Table.Constraint. Please follow same path for all the nodes.

I cross checked with pgadmin3. Reverse Engineering SQL looks good to me. Please let me know what is missing?

23. Indexes : Comments can not be updated. Please check the attached screen-shot for reference.

Fixed

24. Spelling mistake of 'Definition' in Indexes.

Fixed

NOTE: I haven't check Constraints properly due to validation issue. Also I have checked only functional flow, I will review the code today evening or tomorrow.

Thanks,
Khushboo

On Wed, Apr 27, 2016 at 2:52 PM, Harshal Dhumal <harshal.dhumal@enterprisedb.com> wrote:
Hi,

PFA attached patches for table node and all table child nodes.

This patch includes below nodes,

1) Table node                              -- Initial patch by Murtuza, constraints compatibility by Harshal.
2) Column node                           -- by Murtuza.
3) Index node                              -- by Murtuza.
4) Trigger node                            -- by Murtuzz.
6) Rules node    -- by Surinder.
7) Constraints nodes:
      i] Index Constraint                 -- Initial patch by Harshal, Integration with table node by Murtuza.
      ii] Foreign key                        -- Initial patch and Integration with table node by Harshal.
      iii] Check constraint                -- Initial patch and Integration with table node by Harshal.
      iv] Exclusion constraint           -- Initial patch and Integration with table node by Harshal.

Please apply patches in following order as all of them depends on each other.

Order: Table Node ----> Index constraint ---> remaining patches in any order.

--
Harshal Dhumal
Software Engineer

EenterpriseDB

On Mon, Apr 18, 2016 at 7:04 PM, Murtuza Zabuawala <murtuza.zabuawala@enterprisedb.com> wrote:
Hi,

Please find initial patch for tables node.

This patch includes below nodes,

1) Tables node
2) Columns node
3) Index node
4) Trigger node
5) Constraints node (Primary key & Unique constraints only) -- From: Harshal
6) Roles node -- From: Surinder

This patch also includes "VacuumSettings control" required by table node.

Please apply Fieldset Control UI patch sent earlier.

Please note that constraint node is still partial, It has Primary Key & Unique constraint working & integrated in tables node.

1) I have used initial patch of index constraints node from Harshal & further extend it it to work with table node.
[ Harshal will integrate rest of constraints in tables node, he is working on it.]

2) I have also used initial patches of rules node and VacuumSettings control from Surinder & further extend them it to work with table node.

--
Regards,
Murtuza Zabuawala
EnterpriseDB: http://www.enterprisedb.com
The Enterprise PostgreSQL Company

--
Sent via pgadmin-hackers mailing list (pgadmin-hackers@postgresql.org)
To make changes to your subscription:
http://www.postgresql.org/mailpref/pgadmin-hackers

--
Sent via pgadmin-hackers mailing list (pgadmin-hackers@postgresql.org)
To make changes to your subscription:
http://www.postgresql.org/mailpref/pgadmin-hackers

Re: [PATCH] Tables node (pgAdmin4)

From

Murtuza Zabuawala

Date:

09 May 2016, 15:22:17

Hi Harshal,

Please find comments as below for constraints node,

1) Not able to create Primary key due to 'Please provide primary key' validation error

2) Primary key dialog do not close after save.

3) Error "too much recursion" when creating Forgien key from New table.

4) Error "too much recursion" when creating Check constraint from New table.

5) Remove console.log from JS (Unique constraint)

6) Unique & Exclude constraint are also not working in create mode, No SQL is generated in create mode

7) If there are no columns on table select2 shows columns of previously fetched objects columns.

Also attaching new updated patch, which will fixes below issues,

Fixed:

=====

1) Do not show Foreign tables under tables node

2) In trigger node changed select2 control options as per new format.

3) Removed unwanted templates from trigger node

4) clean up some unwanted code from trigger node

5) Fixed Create sql template in index node

Regards,

Murtuza

Regards,

Murtuza Zabuawala
EnterpriseDB: http://www.enterprisedb.com
The Enterprise PostgreSQL Company

On Sat, May 7, 2016 at 7:45 PM, Harshal Dhumal <harshal.dhumal@enterprisedb.com> wrote:

Hi,

Please find below responses.

Please find the review comments so far:

1. On the Table Collection node, The fields in the grid should be Name, Owner and Comments. OID is not required. Please follow same for the other Nodes like Index, Constraints etc.

Fixed
2. While Updating the Table, Add any column as well as Inherits any table, then the check the SQL tab.
ALTER TABLE SQL should be come in the new line

Current SQL Tab:

ALTER TABLE pem.agent_heartbeat
    INHERIT pem.alert_history;ALTER TABLE pem.agent_heartbeat
    ADD COLUMN test bigint;
Fixed

3. While Creating/updating table, if the Schema is other than selected one, then after saving the table, it is not falling under the same schema. And also in update mode it gives an error.
TODO

4. Unlogged setting does not honor the change of value.
Not reproducible.

5. Please Check SQL tab for all the Nodes as most of them having problem of No blank lines/More than one Blank Lines/Blank Lines at the end etc.
Fixed

6. Creating Table with auto_vacuum and updating only one field then wrong SQL is generated.
WITH (
    OIDS = TRUE,
    FILLFACTOR = 12,
    autovacuum_enabled = TRUE,
,
    autovacuum_vacuum_cost_delay = 21
)

Fixed.

7. Same as toast
WITH (
    OIDS = TRUE,
    FILLFACTOR = 12,
    autovacuum_enabled = TRUE,
    toast.autovacuum_enabled = TRUE,
    autovacuum_analyze_scale_factor = 1,
    autovacuum_analyze_threshold = 2,
    autovacuum_freeze_max_age = 2,
,
    toast.autovacuum_vacuum_cost_limit = 2,
    toast.autovacuum_freeze_min_age = 4
)
Fixed

8. Sometimes while creating table and checking sql table, below error is coming

File "/home/khushboo/Projects/pgadmin4/web/pgadmin/browser/server_groups/servers/databases/schemas/tables/__init__.py", line 1060, in properties
    data = res['rows'][0]
IndexError: list index out of range
TODO. (Need exact steps to reproduce.)

9. Please check all the Grid table columns. It should not be expanded while editing directly into the grid. For ref: Check constraint grid
TODO

10. Constraint Nodes are not covered yet due to validation issue on which Harshal is working.
Done.

11. While creating the table if auto-vacuume has been enabled by user, then it should stay enabled in Edit mode also. Currently it is not.
Fixed

12 .If I just enable 'custom auto activated' and don't update anything then SQL tab is generating below SQL which is wrong.

ALTER TABLE pem.khushboo1 SET (

);
Fixed

13. IF I Change privileges from pem_agent to agent1 then the SQL i like below, which is not corrent

REVOKE ALL ON TABLE pem.khushboo1 FROM agent1;
GRANT SELECT ON TABLE pem.khushboo1 TO agent1;

Not reproducible Or please provide steps to reproduce.

14. In check constraint, change "Don't Validate" to Validated? Please refer Domain Constraint for the same.
Fixed.

15. SQL for the Column is coming as below, which is not correct.

<html><head></head><body>-- Column: col3 -- ALTER TABLE pem.khushboo1 DROP COLUMN col3; ALTER TABLE pem.khushboo1 ADD COLUMN col3 integer NOT NULL;</body></html>

Not reproducible Or please provide steps to reproduce.

16. While updating table columns from column node. Below SQL generating an error.

ALTER TABLE pem.khushboo1
    ALTER COLUMN col2 numeric(1, 1);
Fixed

17. After deleting any column, the properties of the another column of the same table doesn't show up. Gives below error.

TypeError: self.canDrop.apply is not a function

...lf.canDrop) ? function() { return self.canDrop.apply(self, arguments); } : fals

This issue is already raised.

18. Table Node : Exclusion constraint : Grid validates DESC instead of operator.

Not reproducible.

19. Please check validation of the Exclusion control, as some JS error is coming and due to this, we can not close the dialogue.

    The select2('destroy') method was called on an element that is not using Select2.


...this.$dropdown.on(d.join(" "),function(a){a.stopPropagation()})},a}),b.define("s...

select2....min.js (line 3)
TypeError: c is undefined

This is already fixed.

20. While updating the comments field of the Index node, it throws below error:

TypeError: obj is null

} else if ((obj.sessChanged && obj.sessChanged()) || isNew) {

This is already fixed.

21. Job Trigger : Validation missing, so user can't get an idea what is missing while checking the SQL tab

Fixed.

22. For the reverse Engineering SQL tab, the constraints should be start with Schema.Table.Constraint. Please follow same path for all the nodes.

I cross checked with pgadmin3. Reverse Engineering SQL looks good to me. Please let me know what is missing?

23. Indexes : Comments can not be updated. Please check the attached screen-shot for reference.
Fixed

24. Spelling mistake of 'Definition' in Indexes.

Fixed

NOTE: I haven't check Constraints properly due to validation issue. Also I have checked only functional flow, I will review the code today evening or tomorrow.

Thanks,
Khushboo

On Wed, Apr 27, 2016 at 2:52 PM, Harshal Dhumal <harshal.dhumal@enterprisedb.com> wrote:
Hi,

PFA attached patches for table node and all table child nodes.

This patch includes below nodes,

1) Table node                              -- Initial patch by Murtuza, constraints compatibility by Harshal.
2) Column node                           -- by Murtuza.
3) Index node                              -- by Murtuza.
4) Trigger node                            -- by Murtuzz.
6) Rules node    -- by Surinder.
7) Constraints nodes:
      i] Index Constraint                 -- Initial patch by Harshal, Integration with table node by Murtuza.
      ii] Foreign key                        -- Initial patch and Integration with table node by Harshal.
      iii] Check constraint                -- Initial patch and Integration with table node by Harshal.
      iv] Exclusion constraint           -- Initial patch and Integration with table node by Harshal.

Please apply patches in following order as all of them depends on each other.

Order: Table Node ----> Index constraint ---> remaining patches in any order.

--
Harshal Dhumal
Software Engineer

EenterpriseDB

On Mon, Apr 18, 2016 at 7:04 PM, Murtuza Zabuawala <murtuza.zabuawala@enterprisedb.com> wrote:
Hi,

Please find initial patch for tables node.

This patch includes below nodes,

1) Tables node
2) Columns node
3) Index node
4) Trigger node
5) Constraints node (Primary key & Unique constraints only) -- From: Harshal
6) Roles node -- From: Surinder

This patch also includes "VacuumSettings control" required by table node.

Please apply Fieldset Control UI patch sent earlier.

Please note that constraint node is still partial, It has Primary Key & Unique constraint working & integrated in tables node.

1) I have used initial patch of index constraints node from Harshal & further extend it it to work with table node.
[ Harshal will integrate rest of constraints in tables node, he is working on it.]

2) I have also used initial patches of rules node and VacuumSettings control from Surinder & further extend them it to work with table node.

--
Regards,
Murtuza Zabuawala
EnterpriseDB: http://www.enterprisedb.com
The Enterprise PostgreSQL Company

--
Sent via pgadmin-hackers mailing list (pgadmin-hackers@postgresql.org)
To make changes to your subscription:
http://www.postgresql.org/mailpref/pgadmin-hackers

--
Sent via pgadmin-hackers mailing list (pgadmin-hackers@postgresql.org)
To make changes to your subscription:
http://www.postgresql.org/mailpref/pgadmin-hackers

Attachment

Updated_table_v4.patch.zip

Re: [PATCH] Tables node (pgAdmin4)

From

Murtuza Zabuawala

Date:

10 May 2016, 16:08:11

Hi Harshal,

Pending issues to be fixed which I tried but not able to fix in Constraints node,

1) Adding Primary key in create table mode causes "too much recursion" error & Column collection validation error.

2) MultiSelect2 rendering issue causing window to hang.

PFA updated patch for table node,

- Added help file names in js.

- Added Deps for primary key cell in create table node

- Corrected validation error messages

- Formatted SQL templates properly

- Added support for View in triggers node

Regards,

Murtuza

Regards,

Murtuza Zabuawala
EnterpriseDB: http://www.enterprisedb.com
The Enterprise PostgreSQL Company

On Mon, May 9, 2016 at 5:51 PM, Murtuza Zabuawala <murtuza.zabuawala@enterprisedb.com> wrote:

Hi Harshal,

Please find comments as below for constraints node,

1) Not able to create Primary key due to 'Please provide primary key' validation error
2) Primary key dialog do not close after save.
3) Error "too much recursion" when creating Forgien key from New table.
4) Error "too much recursion" when creating Check constraint from New table.
5) Remove console.log from JS (Unique constraint)
6) Unique & Exclude constraint are also not working in create mode, No SQL is generated in create mode
7) If there are no columns on table select2 shows columns of previously fetched objects columns.

Also attaching new updated patch, which will fixes below issues,
Fixed:
=====
1) Do not show Foreign tables under tables node
2) In trigger node changed select2 control options as per new format.
3) Removed unwanted templates from trigger node
4) clean up some unwanted code from trigger node
5) Fixed Create sql template in index node

Regards,
Murtuza

--
Regards,
Murtuza Zabuawala
EnterpriseDB: http://www.enterprisedb.com
The Enterprise PostgreSQL Company

On Sat, May 7, 2016 at 7:45 PM, Harshal Dhumal <harshal.dhumal@enterprisedb.com> wrote:
Hi,

Please find below responses.

Please find the review comments so far:

1. On the Table Collection node, The fields in the grid should be Name, Owner and Comments. OID is not required. Please follow same for the other Nodes like Index, Constraints etc.

Fixed
2. While Updating the Table, Add any column as well as Inherits any table, then the check the SQL tab.
ALTER TABLE SQL should be come in the new line

Current SQL Tab:

ALTER TABLE pem.agent_heartbeat
    INHERIT pem.alert_history;ALTER TABLE pem.agent_heartbeat
    ADD COLUMN test bigint;
Fixed

3. While Creating/updating table, if the Schema is other than selected one, then after saving the table, it is not falling under the same schema. And also in update mode it gives an error.
TODO

4. Unlogged setting does not honor the change of value.
Not reproducible.

5. Please Check SQL tab for all the Nodes as most of them having problem of No blank lines/More than one Blank Lines/Blank Lines at the end etc.
Fixed

6. Creating Table with auto_vacuum and updating only one field then wrong SQL is generated.
WITH (
    OIDS = TRUE,
    FILLFACTOR = 12,
    autovacuum_enabled = TRUE,
,
    autovacuum_vacuum_cost_delay = 21
)

Fixed.

7. Same as toast
WITH (
    OIDS = TRUE,
    FILLFACTOR = 12,
    autovacuum_enabled = TRUE,
    toast.autovacuum_enabled = TRUE,
    autovacuum_analyze_scale_factor = 1,
    autovacuum_analyze_threshold = 2,
    autovacuum_freeze_max_age = 2,
,
    toast.autovacuum_vacuum_cost_limit = 2,
    toast.autovacuum_freeze_min_age = 4
)
Fixed

8. Sometimes while creating table and checking sql table, below error is coming

File "/home/khushboo/Projects/pgadmin4/web/pgadmin/browser/server_groups/servers/databases/schemas/tables/__init__.py", line 1060, in properties
    data = res['rows'][0]
IndexError: list index out of range
TODO. (Need exact steps to reproduce.)

9. Please check all the Grid table columns. It should not be expanded while editing directly into the grid. For ref: Check constraint grid
TODO

10. Constraint Nodes are not covered yet due to validation issue on which Harshal is working.
Done.

11. While creating the table if auto-vacuume has been enabled by user, then it should stay enabled in Edit mode also. Currently it is not.
Fixed

12 .If I just enable 'custom auto activated' and don't update anything then SQL tab is generating below SQL which is wrong.

ALTER TABLE pem.khushboo1 SET (

);
Fixed

13. IF I Change privileges from pem_agent to agent1 then the SQL i like below, which is not corrent

REVOKE ALL ON TABLE pem.khushboo1 FROM agent1;
GRANT SELECT ON TABLE pem.khushboo1 TO agent1;

Not reproducible Or please provide steps to reproduce.

14. In check constraint, change "Don't Validate" to Validated? Please refer Domain Constraint for the same.
Fixed.

15. SQL for the Column is coming as below, which is not correct.

<html><head></head><body>-- Column: col3 -- ALTER TABLE pem.khushboo1 DROP COLUMN col3; ALTER TABLE pem.khushboo1 ADD COLUMN col3 integer NOT NULL;</body></html>

Not reproducible Or please provide steps to reproduce.

16. While updating table columns from column node. Below SQL generating an error.

ALTER TABLE pem.khushboo1
    ALTER COLUMN col2 numeric(1, 1);
Fixed

17. After deleting any column, the properties of the another column of the same table doesn't show up. Gives below error.

TypeError: self.canDrop.apply is not a function

...lf.canDrop) ? function() { return self.canDrop.apply(self, arguments); } : fals

This issue is already raised.

18. Table Node : Exclusion constraint : Grid validates DESC instead of operator.

Not reproducible.

19. Please check validation of the Exclusion control, as some JS error is coming and due to this, we can not close the dialogue.

    The select2('destroy') method was called on an element that is not using Select2.


...this.$dropdown.on(d.join(" "),function(a){a.stopPropagation()})},a}),b.define("s...

select2....min.js (line 3)
TypeError: c is undefined

This is already fixed.

20. While updating the comments field of the Index node, it throws below error:

TypeError: obj is null

} else if ((obj.sessChanged && obj.sessChanged()) || isNew) {

This is already fixed.

21. Job Trigger : Validation missing, so user can't get an idea what is missing while checking the SQL tab

Fixed.

22. For the reverse Engineering SQL tab, the constraints should be start with Schema.Table.Constraint. Please follow same path for all the nodes.

I cross checked with pgadmin3. Reverse Engineering SQL looks good to me. Please let me know what is missing?

23. Indexes : Comments can not be updated. Please check the attached screen-shot for reference.
Fixed

24. Spelling mistake of 'Definition' in Indexes.

Fixed

NOTE: I haven't check Constraints properly due to validation issue. Also I have checked only functional flow, I will review the code today evening or tomorrow.

Thanks,
Khushboo

On Wed, Apr 27, 2016 at 2:52 PM, Harshal Dhumal <harshal.dhumal@enterprisedb.com> wrote:
Hi,

PFA attached patches for table node and all table child nodes.

This patch includes below nodes,

1) Table node                              -- Initial patch by Murtuza, constraints compatibility by Harshal.
2) Column node                           -- by Murtuza.
3) Index node                              -- by Murtuza.
4) Trigger node                            -- by Murtuzz.
6) Rules node    -- by Surinder.
7) Constraints nodes:
      i] Index Constraint                 -- Initial patch by Harshal, Integration with table node by Murtuza.
      ii] Foreign key                        -- Initial patch and Integration with table node by Harshal.
      iii] Check constraint                -- Initial patch and Integration with table node by Harshal.
      iv] Exclusion constraint           -- Initial patch and Integration with table node by Harshal.

Please apply patches in following order as all of them depends on each other.

Order: Table Node ----> Index constraint ---> remaining patches in any order.

--
Harshal Dhumal
Software Engineer

EenterpriseDB

On Mon, Apr 18, 2016 at 7:04 PM, Murtuza Zabuawala <murtuza.zabuawala@enterprisedb.com> wrote:
Hi,

Please find initial patch for tables node.

This patch includes below nodes,

1) Tables node
2) Columns node
3) Index node
4) Trigger node
5) Constraints node (Primary key & Unique constraints only) -- From: Harshal
6) Roles node -- From: Surinder

This patch also includes "VacuumSettings control" required by table node.

Please apply Fieldset Control UI patch sent earlier.

Please note that constraint node is still partial, It has Primary Key & Unique constraint working & integrated in tables node.

1) I have used initial patch of index constraints node from Harshal & further extend it it to work with table node.
[ Harshal will integrate rest of constraints in tables node, he is working on it.]

2) I have also used initial patches of rules node and VacuumSettings control from Surinder & further extend them it to work with table node.

--
Regards,
Murtuza Zabuawala
EnterpriseDB: http://www.enterprisedb.com
The Enterprise PostgreSQL Company

--
Sent via pgadmin-hackers mailing list (pgadmin-hackers@postgresql.org)
To make changes to your subscription:
http://www.postgresql.org/mailpref/pgadmin-hackers

--
Sent via pgadmin-hackers mailing list (pgadmin-hackers@postgresql.org)
To make changes to your subscription:
http://www.postgresql.org/mailpref/pgadmin-hackers

Attachment

updated_table_v5.patch.zip

Re: [PATCH] Tables node (pgAdmin4)

From

Harshal Dhumal

Date:

12 May 2016, 15:32:47

Hi,

PFA updated patches for table and it's child nodes.

Apply order Table node -> Index constrain -> remaining in any order

Harshal Dhumal

Software Engineer

EenterpriseDB

On Tue, May 10, 2016 at 6:37 PM, Murtuza Zabuawala <murtuza.zabuawala@enterprisedb.com> wrote:

Hi Harshal,

Pending issues to be fixed which I tried but not able to fix in Constraints node,
1) Adding Primary key in create table mode causes "too much recursion" error & Column collection validation error.
2) MultiSelect2 rendering issue causing window to hang.

PFA updated patch for table node,
- Added help file names in js.
- Added Deps for primary key cell in create table node
- Corrected validation error messages
- Formatted SQL templates properly
- Added support for View in triggers node

Regards,
Murtuza

--
Regards,
Murtuza Zabuawala
EnterpriseDB: http://www.enterprisedb.com
The Enterprise PostgreSQL Company

On Mon, May 9, 2016 at 5:51 PM, Murtuza Zabuawala <murtuza.zabuawala@enterprisedb.com> wrote:
Hi Harshal,

Please find comments as below for constraints node,

1) Not able to create Primary key due to 'Please provide primary key' validation error
2) Primary key dialog do not close after save.
3) Error "too much recursion" when creating Forgien key from New table.
4) Error "too much recursion" when creating Check constraint from New table.
5) Remove console.log from JS (Unique constraint)
6) Unique & Exclude constraint are also not working in create mode, No SQL is generated in create mode
7) If there are no columns on table select2 shows columns of previously fetched objects columns.

Also attaching new updated patch, which will fixes below issues,
Fixed:
=====
1) Do not show Foreign tables under tables node
2) In trigger node changed select2 control options as per new format.
3) Removed unwanted templates from trigger node
4) clean up some unwanted code from trigger node
5) Fixed Create sql template in index node

Regards,
Murtuza

--
Regards,
Murtuza Zabuawala
EnterpriseDB: http://www.enterprisedb.com
The Enterprise PostgreSQL Company

On Sat, May 7, 2016 at 7:45 PM, Harshal Dhumal <harshal.dhumal@enterprisedb.com> wrote:
Hi,

Please find below responses.

Please find the review comments so far:

1. On the Table Collection node, The fields in the grid should be Name, Owner and Comments. OID is not required. Please follow same for the other Nodes like Index, Constraints etc.

Fixed
2. While Updating the Table, Add any column as well as Inherits any table, then the check the SQL tab.
ALTER TABLE SQL should be come in the new line

Current SQL Tab:

ALTER TABLE pem.agent_heartbeat
    INHERIT pem.alert_history;ALTER TABLE pem.agent_heartbeat
    ADD COLUMN test bigint;
Fixed

3. While Creating/updating table, if the Schema is other than selected one, then after saving the table, it is not falling under the same schema. And also in update mode it gives an error.
TODO

4. Unlogged setting does not honor the change of value.
Not reproducible.

5. Please Check SQL tab for all the Nodes as most of them having problem of No blank lines/More than one Blank Lines/Blank Lines at the end etc.
Fixed

6. Creating Table with auto_vacuum and updating only one field then wrong SQL is generated.
WITH (
    OIDS = TRUE,
    FILLFACTOR = 12,
    autovacuum_enabled = TRUE,
,
    autovacuum_vacuum_cost_delay = 21
)

Fixed.

7. Same as toast
WITH (
    OIDS = TRUE,
    FILLFACTOR = 12,
    autovacuum_enabled = TRUE,
    toast.autovacuum_enabled = TRUE,
    autovacuum_analyze_scale_factor = 1,
    autovacuum_analyze_threshold = 2,
    autovacuum_freeze_max_age = 2,
,
    toast.autovacuum_vacuum_cost_limit = 2,
    toast.autovacuum_freeze_min_age = 4
)
Fixed

8. Sometimes while creating table and checking sql table, below error is coming

File "/home/khushboo/Projects/pgadmin4/web/pgadmin/browser/server_groups/servers/databases/schemas/tables/__init__.py", line 1060, in properties
    data = res['rows'][0]
IndexError: list index out of range
TODO. (Need exact steps to reproduce.)

9. Please check all the Grid table columns. It should not be expanded while editing directly into the grid. For ref: Check constraint grid
TODO

10. Constraint Nodes are not covered yet due to validation issue on which Harshal is working.
Done.

11. While creating the table if auto-vacuume has been enabled by user, then it should stay enabled in Edit mode also. Currently it is not.
Fixed

12 .If I just enable 'custom auto activated' and don't update anything then SQL tab is generating below SQL which is wrong.

ALTER TABLE pem.khushboo1 SET (

);
Fixed

13. IF I Change privileges from pem_agent to agent1 then the SQL i like below, which is not corrent

REVOKE ALL ON TABLE pem.khushboo1 FROM agent1;
GRANT SELECT ON TABLE pem.khushboo1 TO agent1;

Not reproducible Or please provide steps to reproduce.

14. In check constraint, change "Don't Validate" to Validated? Please refer Domain Constraint for the same.
Fixed.

15. SQL for the Column is coming as below, which is not correct.

<html><head></head><body>-- Column: col3 -- ALTER TABLE pem.khushboo1 DROP COLUMN col3; ALTER TABLE pem.khushboo1 ADD COLUMN col3 integer NOT NULL;</body></html>

Not reproducible Or please provide steps to reproduce.

16. While updating table columns from column node. Below SQL generating an error.

ALTER TABLE pem.khushboo1
    ALTER COLUMN col2 numeric(1, 1);
Fixed

17. After deleting any column, the properties of the another column of the same table doesn't show up. Gives below error.

TypeError: self.canDrop.apply is not a function

...lf.canDrop) ? function() { return self.canDrop.apply(self, arguments); } : fals

This issue is already raised.

18. Table Node : Exclusion constraint : Grid validates DESC instead of operator.

Not reproducible.

19. Please check validation of the Exclusion control, as some JS error is coming and due to this, we can not close the dialogue.

    The select2('destroy') method was called on an element that is not using Select2.


...this.$dropdown.on(d.join(" "),function(a){a.stopPropagation()})},a}),b.define("s...

select2....min.js (line 3)
TypeError: c is undefined

This is already fixed.

20. While updating the comments field of the Index node, it throws below error:

TypeError: obj is null

} else if ((obj.sessChanged && obj.sessChanged()) || isNew) {

This is already fixed.

21. Job Trigger : Validation missing, so user can't get an idea what is missing while checking the SQL tab

Fixed.

22. For the reverse Engineering SQL tab, the constraints should be start with Schema.Table.Constraint. Please follow same path for all the nodes.

I cross checked with pgadmin3. Reverse Engineering SQL looks good to me. Please let me know what is missing?

23. Indexes : Comments can not be updated. Please check the attached screen-shot for reference.
Fixed

24. Spelling mistake of 'Definition' in Indexes.

Fixed

NOTE: I haven't check Constraints properly due to validation issue. Also I have checked only functional flow, I will review the code today evening or tomorrow.

Thanks,
Khushboo

On Wed, Apr 27, 2016 at 2:52 PM, Harshal Dhumal <harshal.dhumal@enterprisedb.com> wrote:
Hi,

PFA attached patches for table node and all table child nodes.

This patch includes below nodes,

1) Table node                              -- Initial patch by Murtuza, constraints compatibility by Harshal.
2) Column node                           -- by Murtuza.
3) Index node                              -- by Murtuza.
4) Trigger node                            -- by Murtuzz.
6) Rules node    -- by Surinder.
7) Constraints nodes:
      i] Index Constraint                 -- Initial patch by Harshal, Integration with table node by Murtuza.
      ii] Foreign key                        -- Initial patch and Integration with table node by Harshal.
      iii] Check constraint                -- Initial patch and Integration with table node by Harshal.
      iv] Exclusion constraint           -- Initial patch and Integration with table node by Harshal.

Please apply patches in following order as all of them depends on each other.

Order: Table Node ----> Index constraint ---> remaining patches in any order.

--
Harshal Dhumal
Software Engineer

EenterpriseDB

On Mon, Apr 18, 2016 at 7:04 PM, Murtuza Zabuawala <murtuza.zabuawala@enterprisedb.com> wrote:
Hi,

Please find initial patch for tables node.

This patch includes below nodes,

1) Tables node
2) Columns node
3) Index node
4) Trigger node
5) Constraints node (Primary key & Unique constraints only) -- From: Harshal
6) Roles node -- From: Surinder

This patch also includes "VacuumSettings control" required by table node.

Please apply Fieldset Control UI patch sent earlier.

Please note that constraint node is still partial, It has Primary Key & Unique constraint working & integrated in tables node.

1) I have used initial patch of index constraints node from Harshal & further extend it it to work with table node.
[ Harshal will integrate rest of constraints in tables node, he is working on it.]

2) I have also used initial patches of rules node and VacuumSettings control from Surinder & further extend them it to work with table node.

--
Regards,
Murtuza Zabuawala
EnterpriseDB: http://www.enterprisedb.com
The Enterprise PostgreSQL Company

--
Sent via pgadmin-hackers mailing list (pgadmin-hackers@postgresql.org)
To make changes to your subscription:
http://www.postgresql.org/mailpref/pgadmin-hackers

--
Sent via pgadmin-hackers mailing list (pgadmin-hackers@postgresql.org)
To make changes to your subscription:
http://www.postgresql.org/mailpref/pgadmin-hackers

Attachment

Re: [PATCH] Tables node (pgAdmin4)

From

Harshal Dhumal

Date:

12 May 2016, 15:33:19

Hi,

Harshal Dhumal

Software Engineer

EenterpriseDB

On Tue, May 10, 2016 at 6:37 PM, Murtuza Zabuawala <murtuza.zabuawala@enterprisedb.com> wrote:

Hi Harshal,

Pending issues to be fixed which I tried but not able to fix in Constraints node,

1) Adding Primary key in create table mode causes "too much recursion" error & Column collection validation error.

Fixed.

2) MultiSelect2 rendering issue causing window to hang.

Fixed.

PFA updated patch for table node,
- Added help file names in js.
- Added Deps for primary key cell in create table node
- Corrected validation error messages
- Formatted SQL templates properly
- Added support for View in triggers node

Regards,
Murtuza

--
Regards,
Murtuza Zabuawala
EnterpriseDB: http://www.enterprisedb.com
The Enterprise PostgreSQL Company

On Mon, May 9, 2016 at 5:51 PM, Murtuza Zabuawala <murtuza.zabuawala@enterprisedb.com> wrote:
Hi Harshal,

Please find comments as below for constraints node,

1) Not able to create Primary key due to 'Please provide primary key' validation error
2) Primary key dialog do not close after save.
3) Error "too much recursion" when creating Forgien key from New table.
4) Error "too much recursion" when creating Check constraint from New table.
5) Remove console.log from JS (Unique constraint)
6) Unique & Exclude constraint are also not working in create mode, No SQL is generated in create mode
7) If there are no columns on table select2 shows columns of previously fetched objects columns.

Also attaching new updated patch, which will fixes below issues,
Fixed:
=====
1) Do not show Foreign tables under tables node
2) In trigger node changed select2 control options as per new format.
3) Removed unwanted templates from trigger node
4) clean up some unwanted code from trigger node
5) Fixed Create sql template in index node

Regards,
Murtuza

--
Regards,
Murtuza Zabuawala
EnterpriseDB: http://www.enterprisedb.com
The Enterprise PostgreSQL Company

On Sat, May 7, 2016 at 7:45 PM, Harshal Dhumal <harshal.dhumal@enterprisedb.com> wrote:
Hi,

Please find below responses.

Please find the review comments so far:

1. On the Table Collection node, The fields in the grid should be Name, Owner and Comments. OID is not required. Please follow same for the other Nodes like Index, Constraints etc.

Fixed
2. While Updating the Table, Add any column as well as Inherits any table, then the check the SQL tab.
ALTER TABLE SQL should be come in the new line

Current SQL Tab:

ALTER TABLE pem.agent_heartbeat
    INHERIT pem.alert_history;ALTER TABLE pem.agent_heartbeat
    ADD COLUMN test bigint;
Fixed

3. While Creating/updating table, if the Schema is other than selected one, then after saving the table, it is not falling under the same schema. And also in update mode it gives an error.
TODO

4. Unlogged setting does not honor the change of value.
Not reproducible.

5. Please Check SQL tab for all the Nodes as most of them having problem of No blank lines/More than one Blank Lines/Blank Lines at the end etc.
Fixed

6. Creating Table with auto_vacuum and updating only one field then wrong SQL is generated.
WITH (
    OIDS = TRUE,
    FILLFACTOR = 12,
    autovacuum_enabled = TRUE,
,
    autovacuum_vacuum_cost_delay = 21
)

Fixed.

7. Same as toast
WITH (
    OIDS = TRUE,
    FILLFACTOR = 12,
    autovacuum_enabled = TRUE,
    toast.autovacuum_enabled = TRUE,
    autovacuum_analyze_scale_factor = 1,
    autovacuum_analyze_threshold = 2,
    autovacuum_freeze_max_age = 2,
,
    toast.autovacuum_vacuum_cost_limit = 2,
    toast.autovacuum_freeze_min_age = 4
)
Fixed

8. Sometimes while creating table and checking sql table, below error is coming

File "/home/khushboo/Projects/pgadmin4/web/pgadmin/browser/server_groups/servers/databases/schemas/tables/__init__.py", line 1060, in properties
    data = res['rows'][0]
IndexError: list index out of range
TODO. (Need exact steps to reproduce.)

9. Please check all the Grid table columns. It should not be expanded while editing directly into the grid. For ref: Check constraint grid
TODO

10. Constraint Nodes are not covered yet due to validation issue on which Harshal is working.
Done.

11. While creating the table if auto-vacuume has been enabled by user, then it should stay enabled in Edit mode also. Currently it is not.
Fixed

12 .If I just enable 'custom auto activated' and don't update anything then SQL tab is generating below SQL which is wrong.

ALTER TABLE pem.khushboo1 SET (

);
Fixed

13. IF I Change privileges from pem_agent to agent1 then the SQL i like below, which is not corrent

REVOKE ALL ON TABLE pem.khushboo1 FROM agent1;
GRANT SELECT ON TABLE pem.khushboo1 TO agent1;

Not reproducible Or please provide steps to reproduce.

14. In check constraint, change "Don't Validate" to Validated? Please refer Domain Constraint for the same.
Fixed.

15. SQL for the Column is coming as below, which is not correct.

<html><head></head><body>-- Column: col3 -- ALTER TABLE pem.khushboo1 DROP COLUMN col3; ALTER TABLE pem.khushboo1 ADD COLUMN col3 integer NOT NULL;</body></html>

Not reproducible Or please provide steps to reproduce.

16. While updating table columns from column node. Below SQL generating an error.

ALTER TABLE pem.khushboo1
    ALTER COLUMN col2 numeric(1, 1);
Fixed

17. After deleting any column, the properties of the another column of the same table doesn't show up. Gives below error.

TypeError: self.canDrop.apply is not a function

...lf.canDrop) ? function() { return self.canDrop.apply(self, arguments); } : fals

This issue is already raised.

18. Table Node : Exclusion constraint : Grid validates DESC instead of operator.

Not reproducible.

19. Please check validation of the Exclusion control, as some JS error is coming and due to this, we can not close the dialogue.

    The select2('destroy') method was called on an element that is not using Select2.


...this.$dropdown.on(d.join(" "),function(a){a.stopPropagation()})},a}),b.define("s...

select2....min.js (line 3)
TypeError: c is undefined

This is already fixed.

20. While updating the comments field of the Index node, it throws below error:

TypeError: obj is null

} else if ((obj.sessChanged && obj.sessChanged()) || isNew) {

This is already fixed.

21. Job Trigger : Validation missing, so user can't get an idea what is missing while checking the SQL tab

Fixed.

22. For the reverse Engineering SQL tab, the constraints should be start with Schema.Table.Constraint. Please follow same path for all the nodes.

I cross checked with pgadmin3. Reverse Engineering SQL looks good to me. Please let me know what is missing?

23. Indexes : Comments can not be updated. Please check the attached screen-shot for reference.
Fixed

24. Spelling mistake of 'Definition' in Indexes.

Fixed

NOTE: I haven't check Constraints properly due to validation issue. Also I have checked only functional flow, I will review the code today evening or tomorrow.

Thanks,
Khushboo

On Wed, Apr 27, 2016 at 2:52 PM, Harshal Dhumal <harshal.dhumal@enterprisedb.com> wrote:
Hi,

PFA attached patches for table node and all table child nodes.

This patch includes below nodes,

1) Table node                              -- Initial patch by Murtuza, constraints compatibility by Harshal.
2) Column node                           -- by Murtuza.
3) Index node                              -- by Murtuza.
4) Trigger node                            -- by Murtuzz.
6) Rules node    -- by Surinder.
7) Constraints nodes:
      i] Index Constraint                 -- Initial patch by Harshal, Integration with table node by Murtuza.
      ii] Foreign key                        -- Initial patch and Integration with table node by Harshal.
      iii] Check constraint                -- Initial patch and Integration with table node by Harshal.
      iv] Exclusion constraint           -- Initial patch and Integration with table node by Harshal.

Please apply patches in following order as all of them depends on each other.

Order: Table Node ----> Index constraint ---> remaining patches in any order.

--
Harshal Dhumal
Software Engineer

EenterpriseDB

On Mon, Apr 18, 2016 at 7:04 PM, Murtuza Zabuawala <murtuza.zabuawala@enterprisedb.com> wrote:
Hi,

Please find initial patch for tables node.

This patch includes below nodes,

1) Tables node
2) Columns node
3) Index node
4) Trigger node
5) Constraints node (Primary key & Unique constraints only) -- From: Harshal
6) Roles node -- From: Surinder

This patch also includes "VacuumSettings control" required by table node.

Please apply Fieldset Control UI patch sent earlier.

Please note that constraint node is still partial, It has Primary Key & Unique constraint working & integrated in tables node.

1) I have used initial patch of index constraints node from Harshal & further extend it it to work with table node.
[ Harshal will integrate rest of constraints in tables node, he is working on it.]

2) I have also used initial patches of rules node and VacuumSettings control from Surinder & further extend them it to work with table node.

--
Regards,
Murtuza Zabuawala
EnterpriseDB: http://www.enterprisedb.com
The Enterprise PostgreSQL Company

--
Sent via pgadmin-hackers mailing list (pgadmin-hackers@postgresql.org)
To make changes to your subscription:
http://www.postgresql.org/mailpref/pgadmin-hackers

--
Sent via pgadmin-hackers mailing list (pgadmin-hackers@postgresql.org)
To make changes to your subscription:
http://www.postgresql.org/mailpref/pgadmin-hackers

Re: [PATCH] Tables node (pgAdmin4)

From

Khushboo Vashi

Date:

12 May 2016, 16:25:11

Hi,

I have started reviewing the patch but the basic functionalities are breaking on python 2.7.

Please test the patch on Python 2.7, fix the issues and resend the patch.

Thanks,

Khushboo

On Thu, May 12, 2016 at 6:03 PM, Harshal Dhumal <harshal.dhumal@enterprisedb.com> wrote:

Hi,

--
Harshal Dhumal
Software Engineer

EenterpriseDB

On Tue, May 10, 2016 at 6:37 PM, Murtuza Zabuawala <murtuza.zabuawala@enterprisedb.com> wrote:
Hi Harshal,

Pending issues to be fixed which I tried but not able to fix in Constraints node,
1) Adding Primary key in create table mode causes "too much recursion" error & Column collection validation error.
Fixed.

2) MultiSelect2 rendering issue causing window to hang.
Fixed.

PFA updated patch for table node,
- Added help file names in js.
- Added Deps for primary key cell in create table node
- Corrected validation error messages
- Formatted SQL templates properly
- Added support for View in triggers node

Regards,
Murtuza

--
Regards,
Murtuza Zabuawala
EnterpriseDB: http://www.enterprisedb.com
The Enterprise PostgreSQL Company

On Mon, May 9, 2016 at 5:51 PM, Murtuza Zabuawala <murtuza.zabuawala@enterprisedb.com> wrote:
Hi Harshal,

Please find comments as below for constraints node,

1) Not able to create Primary key due to 'Please provide primary key' validation error
2) Primary key dialog do not close after save.
3) Error "too much recursion" when creating Forgien key from New table.
4) Error "too much recursion" when creating Check constraint from New table.
5) Remove console.log from JS (Unique constraint)
6) Unique & Exclude constraint are also not working in create mode, No SQL is generated in create mode
7) If there are no columns on table select2 shows columns of previously fetched objects columns.

Also attaching new updated patch, which will fixes below issues,
Fixed:
=====
1) Do not show Foreign tables under tables node
2) In trigger node changed select2 control options as per new format.
3) Removed unwanted templates from trigger node
4) clean up some unwanted code from trigger node
5) Fixed Create sql template in index node

Regards,
Murtuza

--
Regards,
Murtuza Zabuawala
EnterpriseDB: http://www.enterprisedb.com
The Enterprise PostgreSQL Company

On Sat, May 7, 2016 at 7:45 PM, Harshal Dhumal <harshal.dhumal@enterprisedb.com> wrote:
Hi,

Please find below responses.

Please find the review comments so far:

1. On the Table Collection node, The fields in the grid should be Name, Owner and Comments. OID is not required. Please follow same for the other Nodes like Index, Constraints etc.

Fixed
2. While Updating the Table, Add any column as well as Inherits any table, then the check the SQL tab.
ALTER TABLE SQL should be come in the new line

Current SQL Tab:

ALTER TABLE pem.agent_heartbeat
    INHERIT pem.alert_history;ALTER TABLE pem.agent_heartbeat
    ADD COLUMN test bigint;
Fixed

3. While Creating/updating table, if the Schema is other than selected one, then after saving the table, it is not falling under the same schema. And also in update mode it gives an error.
TODO

4. Unlogged setting does not honor the change of value.
Not reproducible.

5. Please Check SQL tab for all the Nodes as most of them having problem of No blank lines/More than one Blank Lines/Blank Lines at the end etc.
Fixed

6. Creating Table with auto_vacuum and updating only one field then wrong SQL is generated.
WITH (
    OIDS = TRUE,
    FILLFACTOR = 12,
    autovacuum_enabled = TRUE,
,
    autovacuum_vacuum_cost_delay = 21
)

Fixed.

7. Same as toast
WITH (
    OIDS = TRUE,
    FILLFACTOR = 12,
    autovacuum_enabled = TRUE,
    toast.autovacuum_enabled = TRUE,
    autovacuum_analyze_scale_factor = 1,
    autovacuum_analyze_threshold = 2,
    autovacuum_freeze_max_age = 2,
,
    toast.autovacuum_vacuum_cost_limit = 2,
    toast.autovacuum_freeze_min_age = 4
)
Fixed

8. Sometimes while creating table and checking sql table, below error is coming

File "/home/khushboo/Projects/pgadmin4/web/pgadmin/browser/server_groups/servers/databases/schemas/tables/__init__.py", line 1060, in properties
    data = res['rows'][0]
IndexError: list index out of range
TODO. (Need exact steps to reproduce.)

9. Please check all the Grid table columns. It should not be expanded while editing directly into the grid. For ref: Check constraint grid
TODO

10. Constraint Nodes are not covered yet due to validation issue on which Harshal is working.
Done.

11. While creating the table if auto-vacuume has been enabled by user, then it should stay enabled in Edit mode also. Currently it is not.
Fixed

12 .If I just enable 'custom auto activated' and don't update anything then SQL tab is generating below SQL which is wrong.

ALTER TABLE pem.khushboo1 SET (

);
Fixed

13. IF I Change privileges from pem_agent to agent1 then the SQL i like below, which is not corrent

REVOKE ALL ON TABLE pem.khushboo1 FROM agent1;
GRANT SELECT ON TABLE pem.khushboo1 TO agent1;

Not reproducible Or please provide steps to reproduce.

14. In check constraint, change "Don't Validate" to Validated? Please refer Domain Constraint for the same.
Fixed.

15. SQL for the Column is coming as below, which is not correct.

<html><head></head><body>-- Column: col3 -- ALTER TABLE pem.khushboo1 DROP COLUMN col3; ALTER TABLE pem.khushboo1 ADD COLUMN col3 integer NOT NULL;</body></html>

Not reproducible Or please provide steps to reproduce.

16. While updating table columns from column node. Below SQL generating an error.

ALTER TABLE pem.khushboo1
    ALTER COLUMN col2 numeric(1, 1);
Fixed

17. After deleting any column, the properties of the another column of the same table doesn't show up. Gives below error.

TypeError: self.canDrop.apply is not a function

...lf.canDrop) ? function() { return self.canDrop.apply(self, arguments); } : fals

This issue is already raised.

18. Table Node : Exclusion constraint : Grid validates DESC instead of operator.

Not reproducible.

19. Please check validation of the Exclusion control, as some JS error is coming and due to this, we can not close the dialogue.

    The select2('destroy') method was called on an element that is not using Select2.


...this.$dropdown.on(d.join(" "),function(a){a.stopPropagation()})},a}),b.define("s...

select2....min.js (line 3)
TypeError: c is undefined

This is already fixed.

20. While updating the comments field of the Index node, it throws below error:

TypeError: obj is null

} else if ((obj.sessChanged && obj.sessChanged()) || isNew) {

This is already fixed.

21. Job Trigger : Validation missing, so user can't get an idea what is missing while checking the SQL tab

Fixed.

22. For the reverse Engineering SQL tab, the constraints should be start with Schema.Table.Constraint. Please follow same path for all the nodes.

I cross checked with pgadmin3. Reverse Engineering SQL looks good to me. Please let me know what is missing?

23. Indexes : Comments can not be updated. Please check the attached screen-shot for reference.
Fixed

24. Spelling mistake of 'Definition' in Indexes.

Fixed

NOTE: I haven't check Constraints properly due to validation issue. Also I have checked only functional flow, I will review the code today evening or tomorrow.

Thanks,
Khushboo

On Wed, Apr 27, 2016 at 2:52 PM, Harshal Dhumal <harshal.dhumal@enterprisedb.com> wrote:
Hi,

PFA attached patches for table node and all table child nodes.

This patch includes below nodes,

1) Table node                              -- Initial patch by Murtuza, constraints compatibility by Harshal.
2) Column node                           -- by Murtuza.
3) Index node                              -- by Murtuza.
4) Trigger node                            -- by Murtuzz.
6) Rules node    -- by Surinder.
7) Constraints nodes:
      i] Index Constraint                 -- Initial patch by Harshal, Integration with table node by Murtuza.
      ii] Foreign key                        -- Initial patch and Integration with table node by Harshal.
      iii] Check constraint                -- Initial patch and Integration with table node by Harshal.
      iv] Exclusion constraint           -- Initial patch and Integration with table node by Harshal.

Please apply patches in following order as all of them depends on each other.

Order: Table Node ----> Index constraint ---> remaining patches in any order.

--
Harshal Dhumal
Software Engineer

EenterpriseDB

On Mon, Apr 18, 2016 at 7:04 PM, Murtuza Zabuawala <murtuza.zabuawala@enterprisedb.com> wrote:
Hi,

Please find initial patch for tables node.

This patch includes below nodes,

1) Tables node
2) Columns node
3) Index node
4) Trigger node
5) Constraints node (Primary key & Unique constraints only) -- From: Harshal
6) Roles node -- From: Surinder

This patch also includes "VacuumSettings control" required by table node.

Please apply Fieldset Control UI patch sent earlier.

Please note that constraint node is still partial, It has Primary Key & Unique constraint working & integrated in tables node.

1) I have used initial patch of index constraints node from Harshal & further extend it it to work with table node.
[ Harshal will integrate rest of constraints in tables node, he is working on it.]

2) I have also used initial patches of rules node and VacuumSettings control from Surinder & further extend them it to work with table node.

--
Regards,
Murtuza Zabuawala
EnterpriseDB: http://www.enterprisedb.com
The Enterprise PostgreSQL Company

--
Sent via pgadmin-hackers mailing list (pgadmin-hackers@postgresql.org)
To make changes to your subscription:
http://www.postgresql.org/mailpref/pgadmin-hackers

--
Sent via pgadmin-hackers mailing list (pgadmin-hackers@postgresql.org)
To make changes to your subscription:
http://www.postgresql.org/mailpref/pgadmin-hackers

Re: [PATCH] Tables node (pgAdmin4)

From

Harshal Dhumal

Date:

13 May 2016, 14:54:18

PFA attached patches for table and it's child nodes with python 2.7 compatibility.

Harshal Dhumal

Software Engineer

EenterpriseDB

On Thu, May 12, 2016 at 6:55 PM, Khushboo Vashi <khushboo.vashi@enterprisedb.com> wrote:

Hi,

I have started reviewing the patch but the basic functionalities are breaking on python 2.7.
Please test the patch on Python 2.7, fix the issues and resend the patch.

Thanks,
Khushboo

On Thu, May 12, 2016 at 6:03 PM, Harshal Dhumal <harshal.dhumal@enterprisedb.com> wrote:
Hi,

--
Harshal Dhumal
Software Engineer

EenterpriseDB

On Tue, May 10, 2016 at 6:37 PM, Murtuza Zabuawala <murtuza.zabuawala@enterprisedb.com> wrote:
Hi Harshal,

Pending issues to be fixed which I tried but not able to fix in Constraints node,
1) Adding Primary key in create table mode causes "too much recursion" error & Column collection validation error.
Fixed.

2) MultiSelect2 rendering issue causing window to hang.
Fixed.

PFA updated patch for table node,
- Added help file names in js.
- Added Deps for primary key cell in create table node
- Corrected validation error messages
- Formatted SQL templates properly
- Added support for View in triggers node

Regards,
Murtuza

--
Regards,
Murtuza Zabuawala
EnterpriseDB: http://www.enterprisedb.com
The Enterprise PostgreSQL Company

On Mon, May 9, 2016 at 5:51 PM, Murtuza Zabuawala <murtuza.zabuawala@enterprisedb.com> wrote:
Hi Harshal,

Please find comments as below for constraints node,

1) Not able to create Primary key due to 'Please provide primary key' validation error
2) Primary key dialog do not close after save.
3) Error "too much recursion" when creating Forgien key from New table.
4) Error "too much recursion" when creating Check constraint from New table.
5) Remove console.log from JS (Unique constraint)
6) Unique & Exclude constraint are also not working in create mode, No SQL is generated in create mode
7) If there are no columns on table select2 shows columns of previously fetched objects columns.

Also attaching new updated patch, which will fixes below issues,
Fixed:
=====
1) Do not show Foreign tables under tables node
2) In trigger node changed select2 control options as per new format.
3) Removed unwanted templates from trigger node
4) clean up some unwanted code from trigger node
5) Fixed Create sql template in index node

Regards,
Murtuza

--
Regards,
Murtuza Zabuawala
EnterpriseDB: http://www.enterprisedb.com
The Enterprise PostgreSQL Company

On Sat, May 7, 2016 at 7:45 PM, Harshal Dhumal <harshal.dhumal@enterprisedb.com> wrote:
Hi,

Please find below responses.

Please find the review comments so far:

1. On the Table Collection node, The fields in the grid should be Name, Owner and Comments. OID is not required. Please follow same for the other Nodes like Index, Constraints etc.

Fixed
2. While Updating the Table, Add any column as well as Inherits any table, then the check the SQL tab.
ALTER TABLE SQL should be come in the new line

Current SQL Tab:

ALTER TABLE pem.agent_heartbeat
    INHERIT pem.alert_history;ALTER TABLE pem.agent_heartbeat
    ADD COLUMN test bigint;
Fixed

3. While Creating/updating table, if the Schema is other than selected one, then after saving the table, it is not falling under the same schema. And also in update mode it gives an error.
TODO

4. Unlogged setting does not honor the change of value.
Not reproducible.

5. Please Check SQL tab for all the Nodes as most of them having problem of No blank lines/More than one Blank Lines/Blank Lines at the end etc.
Fixed

6. Creating Table with auto_vacuum and updating only one field then wrong SQL is generated.
WITH (
    OIDS = TRUE,
    FILLFACTOR = 12,
    autovacuum_enabled = TRUE,
,
    autovacuum_vacuum_cost_delay = 21
)

Fixed.

7. Same as toast
WITH (
    OIDS = TRUE,
    FILLFACTOR = 12,
    autovacuum_enabled = TRUE,
    toast.autovacuum_enabled = TRUE,
    autovacuum_analyze_scale_factor = 1,
    autovacuum_analyze_threshold = 2,
    autovacuum_freeze_max_age = 2,
,
    toast.autovacuum_vacuum_cost_limit = 2,
    toast.autovacuum_freeze_min_age = 4
)
Fixed

8. Sometimes while creating table and checking sql table, below error is coming

File "/home/khushboo/Projects/pgadmin4/web/pgadmin/browser/server_groups/servers/databases/schemas/tables/__init__.py", line 1060, in properties
    data = res['rows'][0]
IndexError: list index out of range
TODO. (Need exact steps to reproduce.)

9. Please check all the Grid table columns. It should not be expanded while editing directly into the grid. For ref: Check constraint grid
TODO

10. Constraint Nodes are not covered yet due to validation issue on which Harshal is working.
Done.

11. While creating the table if auto-vacuume has been enabled by user, then it should stay enabled in Edit mode also. Currently it is not.
Fixed

12 .If I just enable 'custom auto activated' and don't update anything then SQL tab is generating below SQL which is wrong.

ALTER TABLE pem.khushboo1 SET (

);
Fixed

13. IF I Change privileges from pem_agent to agent1 then the SQL i like below, which is not corrent

REVOKE ALL ON TABLE pem.khushboo1 FROM agent1;
GRANT SELECT ON TABLE pem.khushboo1 TO agent1;

Not reproducible Or please provide steps to reproduce.

14. In check constraint, change "Don't Validate" to Validated? Please refer Domain Constraint for the same.
Fixed.

15. SQL for the Column is coming as below, which is not correct.

<html><head></head><body>-- Column: col3 -- ALTER TABLE pem.khushboo1 DROP COLUMN col3; ALTER TABLE pem.khushboo1 ADD COLUMN col3 integer NOT NULL;</body></html>

Not reproducible Or please provide steps to reproduce.

16. While updating table columns from column node. Below SQL generating an error.

ALTER TABLE pem.khushboo1
    ALTER COLUMN col2 numeric(1, 1);
Fixed

17. After deleting any column, the properties of the another column of the same table doesn't show up. Gives below error.

TypeError: self.canDrop.apply is not a function

...lf.canDrop) ? function() { return self.canDrop.apply(self, arguments); } : fals

This issue is already raised.

18. Table Node : Exclusion constraint : Grid validates DESC instead of operator.

Not reproducible.

19. Please check validation of the Exclusion control, as some JS error is coming and due to this, we can not close the dialogue.

    The select2('destroy') method was called on an element that is not using Select2.


...this.$dropdown.on(d.join(" "),function(a){a.stopPropagation()})},a}),b.define("s...

select2....min.js (line 3)
TypeError: c is undefined

This is already fixed.

20. While updating the comments field of the Index node, it throws below error:

TypeError: obj is null

} else if ((obj.sessChanged && obj.sessChanged()) || isNew) {

This is already fixed.

21. Job Trigger : Validation missing, so user can't get an idea what is missing while checking the SQL tab

Fixed.

22. For the reverse Engineering SQL tab, the constraints should be start with Schema.Table.Constraint. Please follow same path for all the nodes.

I cross checked with pgadmin3. Reverse Engineering SQL looks good to me. Please let me know what is missing?

23. Indexes : Comments can not be updated. Please check the attached screen-shot for reference.
Fixed

24. Spelling mistake of 'Definition' in Indexes.

Fixed

NOTE: I haven't check Constraints properly due to validation issue. Also I have checked only functional flow, I will review the code today evening or tomorrow.

Thanks,
Khushboo

On Wed, Apr 27, 2016 at 2:52 PM, Harshal Dhumal <harshal.dhumal@enterprisedb.com> wrote:
Hi,

PFA attached patches for table node and all table child nodes.

This patch includes below nodes,

1) Table node                              -- Initial patch by Murtuza, constraints compatibility by Harshal.
2) Column node                           -- by Murtuza.
3) Index node                              -- by Murtuza.
4) Trigger node                            -- by Murtuzz.
6) Rules node    -- by Surinder.
7) Constraints nodes:
      i] Index Constraint                 -- Initial patch by Harshal, Integration with table node by Murtuza.
      ii] Foreign key                        -- Initial patch and Integration with table node by Harshal.
      iii] Check constraint                -- Initial patch and Integration with table node by Harshal.
      iv] Exclusion constraint           -- Initial patch and Integration with table node by Harshal.

Please apply patches in following order as all of them depends on each other.

Order: Table Node ----> Index constraint ---> remaining patches in any order.

--
Harshal Dhumal
Software Engineer

EenterpriseDB

On Mon, Apr 18, 2016 at 7:04 PM, Murtuza Zabuawala <murtuza.zabuawala@enterprisedb.com> wrote:
Hi,

Please find initial patch for tables node.

This patch includes below nodes,

1) Tables node
2) Columns node
3) Index node
4) Trigger node
5) Constraints node (Primary key & Unique constraints only) -- From: Harshal
6) Roles node -- From: Surinder

This patch also includes "VacuumSettings control" required by table node.

Please apply Fieldset Control UI patch sent earlier.

Please note that constraint node is still partial, It has Primary Key & Unique constraint working & integrated in tables node.

1) I have used initial patch of index constraints node from Harshal & further extend it it to work with table node.
[ Harshal will integrate rest of constraints in tables node, he is working on it.]

2) I have also used initial patches of rules node and VacuumSettings control from Surinder & further extend them it to work with table node.

--
Regards,
Murtuza Zabuawala
EnterpriseDB: http://www.enterprisedb.com
The Enterprise PostgreSQL Company

--
Sent via pgadmin-hackers mailing list (pgadmin-hackers@postgresql.org)
To make changes to your subscription:
http://www.postgresql.org/mailpref/pgadmin-hackers

--
Sent via pgadmin-hackers mailing list (pgadmin-hackers@postgresql.org)
To make changes to your subscription:
http://www.postgresql.org/mailpref/pgadmin-hackers

Attachment

Re: [PATCH] Tables node (pgAdmin4)

From

Khushboo Vashi

Date:

13 May 2016, 16:25:41

Hi,

Review Comments:

- Please replace 'can not' with 'cannot' in all the validation messages.

- PG 9.1+ Inheritance issue as below:

CREATE TABLE public.table1
(
)
(
)
INHERITS (a)
WITH (
OIDS = FALSE
)
TABLESPACE pg_default;
ALTER TABLE public.table1
OWNER to postgres;

brackets are coming twice.

- Please maintain one line spacing between SQL queries In the SQL Tab.

- Foreign Key Grid in Table css issue: Grid columns expands on the selection of the cell

- Check Constraint: Validated? option should be True by default

- pg 9.4: Exclude constraint does not render in SQL tab

- Missing Security validation

- Vacuum grid should not be editable in properties mode.

- Edit mode, Fill Factor can be allowed to be null.

- While dropping inheritance, related table columns drop SQL are also populated in the SQL Tab

ALTER TABLE public."Tbl"
NO INHERIT b;
ALTER TABLE public."Tbl" DROP COLUMN id;
ALTER TABLE public."Tbl" DROP COLUMN name;

And also render error while clicking on the save button.

ERROR: syntax error at or near "["
LINE 2: INHERIT [;
^

- in a Reverse Engineering SQL tab, schema_name.tablename should be there, currently only table_name displays.

- Column SQL is showing below text with HTML

<html><head></head><body>-- Column: id -- ALTER TABLE public.a DROP COLUMN id; ALTER TABLE public.a ADD COLUMN id integer;</body></html>

- The column datatype dependency does not get cleared upon selection of another datatype.

For example, if I select numeric and gives the length and precision. After that I change the dat-type then, dependent fields should be get cleared.

- The column datatype does not get displayed in the properties and edit mode if the length and precision are given while creating a column.

- Statistics is showing null value even after having value.

- if the check constraints are not validated then put proper icon in tree and also it should be validated in edit mode.

NOTE: I have not checked the Indexes, Triggers and Rules nodes as I do not have much knowledge about it.

Thanks,

Khushboo

On Fri, May 13, 2016 at 5:24 PM, Harshal Dhumal <harshal.dhumal@enterprisedb.com> wrote:

Hi

PFA attached patches for table and it's child nodes with python 2.7 compatibility.

--
Harshal Dhumal
Software Engineer

EenterpriseDB

On Thu, May 12, 2016 at 6:55 PM, Khushboo Vashi <khushboo.vashi@enterprisedb.com> wrote:
Hi,

I have started reviewing the patch but the basic functionalities are breaking on python 2.7.
Please test the patch on Python 2.7, fix the issues and resend the patch.

Thanks,
Khushboo

On Thu, May 12, 2016 at 6:03 PM, Harshal Dhumal <harshal.dhumal@enterprisedb.com> wrote:
Hi,

--
Harshal Dhumal
Software Engineer

EenterpriseDB

On Tue, May 10, 2016 at 6:37 PM, Murtuza Zabuawala <murtuza.zabuawala@enterprisedb.com> wrote:
Hi Harshal,

Pending issues to be fixed which I tried but not able to fix in Constraints node,
1) Adding Primary key in create table mode causes "too much recursion" error & Column collection validation error.
Fixed.

2) MultiSelect2 rendering issue causing window to hang.
Fixed.

PFA updated patch for table node,
- Added help file names in js.
- Added Deps for primary key cell in create table node
- Corrected validation error messages
- Formatted SQL templates properly
- Added support for View in triggers node

Regards,
Murtuza

--
Regards,
Murtuza Zabuawala
EnterpriseDB: http://www.enterprisedb.com
The Enterprise PostgreSQL Company

On Mon, May 9, 2016 at 5:51 PM, Murtuza Zabuawala <murtuza.zabuawala@enterprisedb.com> wrote:
Hi Harshal,

Please find comments as below for constraints node,

1) Not able to create Primary key due to 'Please provide primary key' validation error
2) Primary key dialog do not close after save.
3) Error "too much recursion" when creating Forgien key from New table.
4) Error "too much recursion" when creating Check constraint from New table.
5) Remove console.log from JS (Unique constraint)
6) Unique & Exclude constraint are also not working in create mode, No SQL is generated in create mode
7) If there are no columns on table select2 shows columns of previously fetched objects columns.

Also attaching new updated patch, which will fixes below issues,
Fixed:
=====
1) Do not show Foreign tables under tables node
2) In trigger node changed select2 control options as per new format.
3) Removed unwanted templates from trigger node
4) clean up some unwanted code from trigger node
5) Fixed Create sql template in index node

Regards,
Murtuza

--
Regards,
Murtuza Zabuawala
EnterpriseDB: http://www.enterprisedb.com
The Enterprise PostgreSQL Company

On Sat, May 7, 2016 at 7:45 PM, Harshal Dhumal <harshal.dhumal@enterprisedb.com> wrote:
Hi,

Please find below responses.

Please find the review comments so far:

1. On the Table Collection node, The fields in the grid should be Name, Owner and Comments. OID is not required. Please follow same for the other Nodes like Index, Constraints etc.

Fixed
2. While Updating the Table, Add any column as well as Inherits any table, then the check the SQL tab.
ALTER TABLE SQL should be come in the new line

Current SQL Tab:

ALTER TABLE pem.agent_heartbeat
    INHERIT pem.alert_history;ALTER TABLE pem.agent_heartbeat
    ADD COLUMN test bigint;
Fixed

3. While Creating/updating table, if the Schema is other than selected one, then after saving the table, it is not falling under the same schema. And also in update mode it gives an error.
TODO

4. Unlogged setting does not honor the change of value.
Not reproducible.

5. Please Check SQL tab for all the Nodes as most of them having problem of No blank lines/More than one Blank Lines/Blank Lines at the end etc.
Fixed

6. Creating Table with auto_vacuum and updating only one field then wrong SQL is generated.
WITH (
    OIDS = TRUE,
    FILLFACTOR = 12,
    autovacuum_enabled = TRUE,
,
    autovacuum_vacuum_cost_delay = 21
)

Fixed.

7. Same as toast
WITH (
    OIDS = TRUE,
    FILLFACTOR = 12,
    autovacuum_enabled = TRUE,
    toast.autovacuum_enabled = TRUE,
    autovacuum_analyze_scale_factor = 1,
    autovacuum_analyze_threshold = 2,
    autovacuum_freeze_max_age = 2,
,
    toast.autovacuum_vacuum_cost_limit = 2,
    toast.autovacuum_freeze_min_age = 4
)
Fixed

8. Sometimes while creating table and checking sql table, below error is coming

File "/home/khushboo/Projects/pgadmin4/web/pgadmin/browser/server_groups/servers/databases/schemas/tables/__init__.py", line 1060, in properties
    data = res['rows'][0]
IndexError: list index out of range
TODO. (Need exact steps to reproduce.)

9. Please check all the Grid table columns. It should not be expanded while editing directly into the grid. For ref: Check constraint grid
TODO

10. Constraint Nodes are not covered yet due to validation issue on which Harshal is working.
Done.

11. While creating the table if auto-vacuume has been enabled by user, then it should stay enabled in Edit mode also. Currently it is not.
Fixed

12 .If I just enable 'custom auto activated' and don't update anything then SQL tab is generating below SQL which is wrong.

ALTER TABLE pem.khushboo1 SET (

);
Fixed

13. IF I Change privileges from pem_agent to agent1 then the SQL i like below, which is not corrent

REVOKE ALL ON TABLE pem.khushboo1 FROM agent1;
GRANT SELECT ON TABLE pem.khushboo1 TO agent1;

Not reproducible Or please provide steps to reproduce.

14. In check constraint, change "Don't Validate" to Validated? Please refer Domain Constraint for the same.
Fixed.

15. SQL for the Column is coming as below, which is not correct.

<html><head></head><body>-- Column: col3 -- ALTER TABLE pem.khushboo1 DROP COLUMN col3; ALTER TABLE pem.khushboo1 ADD COLUMN col3 integer NOT NULL;</body></html>

Not reproducible Or please provide steps to reproduce.

16. While updating table columns from column node. Below SQL generating an error.

ALTER TABLE pem.khushboo1
    ALTER COLUMN col2 numeric(1, 1);
Fixed

17. After deleting any column, the properties of the another column of the same table doesn't show up. Gives below error.

TypeError: self.canDrop.apply is not a function

...lf.canDrop) ? function() { return self.canDrop.apply(self, arguments); } : fals

This issue is already raised.

18. Table Node : Exclusion constraint : Grid validates DESC instead of operator.

Not reproducible.

19. Please check validation of the Exclusion control, as some JS error is coming and due to this, we can not close the dialogue.

    The select2('destroy') method was called on an element that is not using Select2.


...this.$dropdown.on(d.join(" "),function(a){a.stopPropagation()})},a}),b.define("s...

select2....min.js (line 3)
TypeError: c is undefined

This is already fixed.

20. While updating the comments field of the Index node, it throws below error:

TypeError: obj is null

} else if ((obj.sessChanged && obj.sessChanged()) || isNew) {

This is already fixed.

21. Job Trigger : Validation missing, so user can't get an idea what is missing while checking the SQL tab

Fixed.

22. For the reverse Engineering SQL tab, the constraints should be start with Schema.Table.Constraint. Please follow same path for all the nodes.

I cross checked with pgadmin3. Reverse Engineering SQL looks good to me. Please let me know what is missing?

23. Indexes : Comments can not be updated. Please check the attached screen-shot for reference.
Fixed

24. Spelling mistake of 'Definition' in Indexes.

Fixed

NOTE: I haven't check Constraints properly due to validation issue. Also I have checked only functional flow, I will review the code today evening or tomorrow.

Thanks,
Khushboo

On Wed, Apr 27, 2016 at 2:52 PM, Harshal Dhumal <harshal.dhumal@enterprisedb.com> wrote:
Hi,

PFA attached patches for table node and all table child nodes.

This patch includes below nodes,

1) Table node                              -- Initial patch by Murtuza, constraints compatibility by Harshal.
2) Column node                           -- by Murtuza.
3) Index node                              -- by Murtuza.
4) Trigger node                            -- by Murtuzz.
6) Rules node    -- by Surinder.
7) Constraints nodes:
      i] Index Constraint                 -- Initial patch by Harshal, Integration with table node by Murtuza.
      ii] Foreign key                        -- Initial patch and Integration with table node by Harshal.
      iii] Check constraint                -- Initial patch and Integration with table node by Harshal.
      iv] Exclusion constraint           -- Initial patch and Integration with table node by Harshal.

Please apply patches in following order as all of them depends on each other.

Order: Table Node ----> Index constraint ---> remaining patches in any order.

--
Harshal Dhumal
Software Engineer

EenterpriseDB

On Mon, Apr 18, 2016 at 7:04 PM, Murtuza Zabuawala <murtuza.zabuawala@enterprisedb.com> wrote:
Hi,

Please find initial patch for tables node.

This patch includes below nodes,

1) Tables node
2) Columns node
3) Index node
4) Trigger node
5) Constraints node (Primary key & Unique constraints only) -- From: Harshal
6) Roles node -- From: Surinder

This patch also includes "VacuumSettings control" required by table node.

Please apply Fieldset Control UI patch sent earlier.

Please note that constraint node is still partial, It has Primary Key & Unique constraint working & integrated in tables node.

1) I have used initial patch of index constraints node from Harshal & further extend it it to work with table node.
[ Harshal will integrate rest of constraints in tables node, he is working on it.]

2) I have also used initial patches of rules node and VacuumSettings control from Surinder & further extend them it to work with table node.

--
Regards,
Murtuza Zabuawala
EnterpriseDB: http://www.enterprisedb.com
The Enterprise PostgreSQL Company

--
Sent via pgadmin-hackers mailing list (pgadmin-hackers@postgresql.org)
To make changes to your subscription:
http://www.postgresql.org/mailpref/pgadmin-hackers

--
Sent via pgadmin-hackers mailing list (pgadmin-hackers@postgresql.org)
To make changes to your subscription:
http://www.postgresql.org/mailpref/pgadmin-hackers

--
Sent via pgadmin-hackers mailing list (pgadmin-hackers@postgresql.org)
To make changes to your subscription:
http://www.postgresql.org/mailpref/pgadmin-hackers

Re: [PATCH] Tables node (pgAdmin4)

From

Harshal Dhumal

Date:

13 May 2016, 23:33:51

Hi,

PFA updated patches (version: 6) for table and it's child nodes.

Harshal Dhumal

Software Engineer

EenterpriseDB

On Fri, May 13, 2016 at 6:55 PM, Khushboo Vashi <khushboo.vashi@enterprisedb.com> wrote:

Hi,

Review Comments:

- Please replace 'can not' with 'cannot' in all the validation messages.
- PG 9.1+ Inheritance issue as below:
CREATE TABLE public.table1
(
)
(
)
INHERITS (a)
WITH (
OIDS = FALSE
)
TABLESPACE pg_default;
ALTER TABLE public.table1
OWNER to postgres;

brackets are coming twice.

Fixed

- Please maintain one line spacing between SQL queries In the SQL Tab.

TODO

- Foreign Key Grid in Table css issue: Grid columns expands on the selection of the cell

Fixed

- Check Constraint: Validated? option should be True by default

Not sure about this. I cross checked in pgadmin3.

- pg 9.4: Exclude constraint does not render in SQL tab

Fixed

- Missing Security validation

Fixed

- Vacuum grid should not be editable in properties mode.

TODO (It's editable but one cannot save it on server from here as there is no save button.)

- Edit mode, Fill Factor can be allowed to be null.

TODO (This is generic issue in Integer and Numeric controls. This issue is covered in this partial patch)

- While dropping inheritance, related table columns drop SQL are also populated in the SQL Tab
ALTER TABLE public."Tbl"
NO INHERIT b;
ALTER TABLE public."Tbl" DROP COLUMN id;
ALTER TABLE public."Tbl" DROP COLUMN name;

Fixed

And also render error while clicking on the save button.
ERROR: syntax error at or near "["
LINE 2: INHERIT [;

^

Fixed

- in a Reverse Engineering SQL tab, schema_name.tablename should be there, currently only table_name displays.

Fixed

- Column SQL is showing below text with HTML

<html><head></head><body>-- Column: id -- ALTER TABLE public.a DROIP COLUMN id; ALTER TABLE public.a ADD COLUMN id integer;</body></html>

I was not able to reproduce exact issue but still I have fixed other issue which I found related to column SQL. Hopefully that will fix this issue as well.

- The column datatype dependency does not get cleared upon selection of another datatype.

For example, if I select numeric and gives the length and precision. After that I change the dat-type then, dependent fields should be get cleared.

Fixed.

- The column datatype does not get displayed in the properties and edit mode if the length and precision are given while creating a column.

TODO ( I cannot fix this blindly as this might introduce another issue(s) in column node. I will need Murtuza's help as he has worked on column node)

- Statistics is showing null value even after having value.

Fixed

- if the check constraints are not validated then put proper icon in tree and also it should be validated in edit mode.

Not reproducible.

NOTE: I have not checked the Indexes, Triggers and Rules nodes as I do not have much knowledge about it.

Thanks,
Khushboo

On Fri, May 13, 2016 at 5:24 PM, Harshal Dhumal <harshal.dhumal@enterprisedb.com> wrote:
Hi

PFA attached patches for table and it's child nodes with python 2.7 compatibility.

Attachment

Re: [PATCH] Tables node (pgAdmin4)

From

Harshal Dhumal

Date:

16 May 2016, 16:33:06

Hi,

PFA add-on patch for table and it's child node. (please apply this patch on version 6 patch)

Murtuza and I fixed following issues:

1. SQL formatting
2. Vacuum grid should not be editable in properties mode.
3. Column datatype does not get displayed in the properties and edit mode.

4. Do not allow to add another primary key if one already exist.

And another minor enhancements.

Harshal Dhumal

Software Engineer

EenterpriseDB

On Sat, May 14, 2016 at 2:03 AM, Harshal Dhumal <harshal.dhumal@enterprisedb.com> wrote:

Hi,

PFA updated patches (version: 6) for table and it's child nodes.

--
Harshal Dhumal
Software Engineer

EenterpriseDB

On Fri, May 13, 2016 at 6:55 PM, Khushboo Vashi <khushboo.vashi@enterprisedb.com> wrote:
Hi,

Review Comments:

- Please replace 'can not' with 'cannot' in all the validation messages.
- PG 9.1+ Inheritance issue as below:
CREATE TABLE public.table1
(
)
(
)
INHERITS (a)
WITH (
OIDS = FALSE
)
TABLESPACE pg_default;
ALTER TABLE public.table1
OWNER to postgres;

brackets are coming twice.
Fixed

- Please maintain one line spacing between SQL queries In the SQL Tab.
TODO

- Foreign Key Grid in Table css issue: Grid columns expands on the selection of the cell
Fixed

- Check Constraint: Validated? option should be True by default
Not sure about this. I cross checked in pgadmin3.

- pg 9.4: Exclude constraint does not render in SQL tab
Fixed

- Missing Security validation
Fixed

- Vacuum grid should not be editable in properties mode.
TODO (It's editable but one cannot save it on server from here as there is no save button.)

- Edit mode, Fill Factor can be allowed to be null.
TODO (This is generic issue in Integer and Numeric controls. This issue is covered in this partial patch)

- While dropping inheritance, related table columns drop SQL are also populated in the SQL Tab
ALTER TABLE public."Tbl"
NO INHERIT b;
ALTER TABLE public."Tbl" DROP COLUMN id;
ALTER TABLE public."Tbl" DROP COLUMN name;

Fixed

And also render error while clicking on the save button.
ERROR: syntax error at or near "["
LINE 2: INHERIT [;
^
Fixed

- in a Reverse Engineering SQL tab, schema_name.tablename should be there, currently only table_name displays.
Fixed

- Column SQL is showing below text with HTML

<html><head></head><body>-- Column: id -- ALTER TABLE public.a DROIP COLUMN id; ALTER TABLE public.a ADD COLUMN id integer;</body></html>

I was not able to reproduce exact issue but still I have fixed other issue which I found related to column SQL. Hopefully that will fix this issue as well.

- The column datatype dependency does not get cleared upon selection of another datatype.
For example, if I select numeric and gives the length and precision. After that I change the dat-type then, dependent fields should be get cleared.
Fixed.

- The column datatype does not get displayed in the properties and edit mode if the length and precision are given while creating a column.

TODO ( I cannot fix this blindly as this might introduce another issue(s) in column node. I will need Murtuza's help as he has worked on column node)

- Statistics is showing null value even after having value.
Fixed

- if the check constraints are not validated then put proper icon in tree and also it should be validated in edit mode.
Not reproducible.

NOTE: I have not checked the Indexes, Triggers and Rules nodes as I do not have much knowledge about it.

Thanks,
Khushboo

On Fri, May 13, 2016 at 5:24 PM, Harshal Dhumal <harshal.dhumal@enterprisedb.com> wrote:
Hi

PFA attached patches for table and it's child nodes with python 2.7 compatibility.

Attachment

table_node_addon_V7.patch

Re: [PATCH] Tables node (pgAdmin4)

From

Surinder Kumar

Date:

17 May 2016, 09:18:54

Hi,

Please find attached add-on patch for table's subnode rule.

Apply this patch at end after applying previous patches in email thread.

Issue fixed: "Do Instead" on Rule node under View/M-View node not working in properties mode. Unable to generate proper SQL.

On Mon, May 16, 2016 at 7:02 PM, Harshal Dhumal <harshal.dhumal@enterprisedb.com> wrote:

Hi,

PFA add-on patch for table and it's child node. (please apply this patch on version 6 patch)

Murtuza and I fixed following issues:

1. SQL formatting
2. Vacuum grid should not be editable in properties mode.
3. Column datatype does not get displayed in the properties and edit mode.
4. Do not allow to add another primary key if one already exist.

And another minor enhancements.

--
Harshal Dhumal
Software Engineer

EenterpriseDB

On Sat, May 14, 2016 at 2:03 AM, Harshal Dhumal <harshal.dhumal@enterprisedb.com> wrote:

Hi,

PFA updated patches (version: 6) for table and it's child nodes.

--
Harshal Dhumal
Software Engineer

EenterpriseDB

On Fri, May 13, 2016 at 6:55 PM, Khushboo Vashi <khushboo.vashi@enterprisedb.com> wrote:
Hi,

Review Comments:

- Please replace 'can not' with 'cannot' in all the validation messages.
- PG 9.1+ Inheritance issue as below:
CREATE TABLE public.table1
(
)
(
)
INHERITS (a)
WITH (
OIDS = FALSE
)
TABLESPACE pg_default;
ALTER TABLE public.table1
OWNER to postgres;

brackets are coming twice.
Fixed

- Please maintain one line spacing between SQL queries In the SQL Tab.
TODO

- Foreign Key Grid in Table css issue: Grid columns expands on the selection of the cell
Fixed

- Check Constraint: Validated? option should be True by default
Not sure about this. I cross checked in pgadmin3.

- pg 9.4: Exclude constraint does not render in SQL tab
Fixed

- Missing Security validation
Fixed

- Vacuum grid should not be editable in properties mode.
TODO (It's editable but one cannot save it on server from here as there is no save button.)

- Edit mode, Fill Factor can be allowed to be null.
TODO (This is generic issue in Integer and Numeric controls. This issue is covered in this partial patch)

- While dropping inheritance, related table columns drop SQL are also populated in the SQL Tab
ALTER TABLE public."Tbl"
NO INHERIT b;
ALTER TABLE public."Tbl" DROP COLUMN id;
ALTER TABLE public."Tbl" DROP COLUMN name;

Fixed

And also render error while clicking on the save button.
ERROR: syntax error at or near "["
LINE 2: INHERIT [;
^
Fixed

- in a Reverse Engineering SQL tab, schema_name.tablename should be there, currently only table_name displays.
Fixed

- Column SQL is showing below text with HTML

<html><head></head><body>-- Column: id -- ALTER TABLE public.a DROIP COLUMN id; ALTER TABLE public.a ADD COLUMN id integer;</body></html>

I was not able to reproduce exact issue but still I have fixed other issue which I found related to column SQL. Hopefully that will fix this issue as well.

- The column datatype dependency does not get cleared upon selection of another datatype.
For example, if I select numeric and gives the length and precision. After that I change the dat-type then, dependent fields should be get cleared.
Fixed.

- The column datatype does not get displayed in the properties and edit mode if the length and precision are given while creating a column.

TODO ( I cannot fix this blindly as this might introduce another issue(s) in column node. I will need Murtuza's help as he has worked on column node)

- Statistics is showing null value even after having value.
Fixed

- if the check constraints are not validated then put proper icon in tree and also it should be validated in edit mode.
Not reproducible.

NOTE: I have not checked the Indexes, Triggers and Rules nodes as I do not have much knowledge about it.

Thanks,
Khushboo

On Fri, May 13, 2016 at 5:24 PM, Harshal Dhumal <harshal.dhumal@enterprisedb.com> wrote:
Hi

PFA attached patches for table and it's child nodes with python 2.7 compatibility.

--
Sent via pgadmin-hackers mailing list (pgadmin-hackers@postgresql.org)
To make changes to your subscription:
http://www.postgresql.org/mailpref/pgadmin-hackers

Attachment

rules_add_on.patch

Re: [PATCH] Tables node (pgAdmin4)

From

Murtuza Zabuawala

Date:

17 May 2016, 12:22:39

Hi,

PFA add-on patch to Ver.6 patch, Which will add CREATE/SELECT etc Script support into table node.

Regards,

Murtuza

Regards,

Murtuza Zabuawala
EnterpriseDB: http://www.enterprisedb.com
The Enterprise PostgreSQL Company

On Tue, May 17, 2016 at 11:48 AM, Surinder Kumar <surinder.kumar@enterprisedb.com> wrote:

Hi,

Please find attached add-on patch for table's subnode rule.
Apply this patch at end after applying previous patches in email thread.

Issue fixed: "Do Instead" on Rule node under View/M-View node not working in properties mode. Unable to generate proper SQL.

On Mon, May 16, 2016 at 7:02 PM, Harshal Dhumal <harshal.dhumal@enterprisedb.com> wrote:
Hi,

PFA add-on patch for table and it's child node. (please apply this patch on version 6 patch)

Murtuza and I fixed following issues:

1. SQL formatting
2. Vacuum grid should not be editable in properties mode.
3. Column datatype does not get displayed in the properties and edit mode.
4. Do not allow to add another primary key if one already exist.

And another minor enhancements.

--
Harshal Dhumal
Software Engineer

EenterpriseDB

On Sat, May 14, 2016 at 2:03 AM, Harshal Dhumal <harshal.dhumal@enterprisedb.com> wrote:

Hi,

PFA updated patches (version: 6) for table and it's child nodes.

--
Harshal Dhumal
Software Engineer

EenterpriseDB

On Fri, May 13, 2016 at 6:55 PM, Khushboo Vashi <khushboo.vashi@enterprisedb.com> wrote:
Hi,

Review Comments:

- Please replace 'can not' with 'cannot' in all the validation messages.
- PG 9.1+ Inheritance issue as below:
CREATE TABLE public.table1
(
)
(
)
INHERITS (a)
WITH (
OIDS = FALSE
)
TABLESPACE pg_default;
ALTER TABLE public.table1
OWNER to postgres;

brackets are coming twice.
Fixed

- Please maintain one line spacing between SQL queries In the SQL Tab.
TODO

- Foreign Key Grid in Table css issue: Grid columns expands on the selection of the cell
Fixed

- Check Constraint: Validated? option should be True by default
Not sure about this. I cross checked in pgadmin3.

- pg 9.4: Exclude constraint does not render in SQL tab
Fixed

- Missing Security validation
Fixed

- Vacuum grid should not be editable in properties mode.
TODO (It's editable but one cannot save it on server from here as there is no save button.)

- Edit mode, Fill Factor can be allowed to be null.
TODO (This is generic issue in Integer and Numeric controls. This issue is covered in this partial patch)

- While dropping inheritance, related table columns drop SQL are also populated in the SQL Tab
ALTER TABLE public."Tbl"
NO INHERIT b;
ALTER TABLE public."Tbl" DROP COLUMN id;
ALTER TABLE public."Tbl" DROP COLUMN name;

Fixed

And also render error while clicking on the save button.
ERROR: syntax error at or near "["
LINE 2: INHERIT [;
^
Fixed

- in a Reverse Engineering SQL tab, schema_name.tablename should be there, currently only table_name displays.
Fixed

- Column SQL is showing below text with HTML

<html><head></head><body>-- Column: id -- ALTER TABLE public.a DROIP COLUMN id; ALTER TABLE public.a ADD COLUMN id integer;</body></html>

I was not able to reproduce exact issue but still I have fixed other issue which I found related to column SQL. Hopefully that will fix this issue as well.

- The column datatype dependency does not get cleared upon selection of another datatype.
For example, if I select numeric and gives the length and precision. After that I change the dat-type then, dependent fields should be get cleared.
Fixed.

- The column datatype does not get displayed in the properties and edit mode if the length and precision are given while creating a column.

TODO ( I cannot fix this blindly as this might introduce another issue(s) in column node. I will need Murtuza's help as he has worked on column node)

- Statistics is showing null value even after having value.
Fixed

- if the check constraints are not validated then put proper icon in tree and also it should be validated in edit mode.
Not reproducible.

NOTE: I have not checked the Indexes, Triggers and Rules nodes as I do not have much knowledge about it.

Thanks,
Khushboo

On Fri, May 13, 2016 at 5:24 PM, Harshal Dhumal <harshal.dhumal@enterprisedb.com> wrote:
Hi

PFA attached patches for table and it's child nodes with python 2.7 compatibility.

--
Sent via pgadmin-hackers mailing list (pgadmin-hackers@postgresql.org)
To make changes to your subscription:
http://www.postgresql.org/mailpref/pgadmin-hackers

--
Sent via pgadmin-hackers mailing list (pgadmin-hackers@postgresql.org)
To make changes to your subscription:
http://www.postgresql.org/mailpref/pgadmin-hackers

Attachment

Added_CREATE_Script_on_Table_v8.patch

Re: [PATCH] Tables node (pgAdmin4)

From

Sanket Mehta

Date:

17 May 2016, 19:42:55

Hi Harshal,

Below are my review comments:

I got below warning when I tried to apply the patch for table node as mentioned below:

Table creation:

Trailing white spaces warnings

$ git apply /projects/patches/pgadmin4/Table/table_14_May_V6.patch

/projects/patches/pgadmin4/Table/table_14_May_V6.patch:6008: trailing whitespace.

return false;

/projects/patches/pgadmin4/Table/table_14_May_V6.patch:6016: trailing whitespace.

return false;

warning: 2 lines add whitespace errors.

In Table creation dialog, while adding a new primary key, it does not allow to change the tablespace to empty. (which is not the case in case of tablespace in table)
In Table creation dialog, while adding a new column, data type and name field must be mandatory. otherwise while clicking on save it gives below error

File "/projects/pgadmin4/web/pgadmin/browser/server_groups/servers/databases/schemas/tables/__init__.py", line 1319, in _parse_format_columns

c['cltype'] = self._cltype_formatter(c['cltype'])

KeyError: 'cltype

In Table creation dialog, While adding a new column, in primary check box is needed to click twice in order to check it. Ideally it should be checked by only one click.
In Table creation dialog, While adding a new column, primary key should not be allowed to added unless user has provided name and data type for atleast one column.
currently if user has clicked on add column button and immediately click on add primary key button, it will add a row in primary key data grid
When delete table/drop cascade is apply on any table, i got a javascript error as mentioned below

node.js:94 Uncaught TypeError: self.canDrop.apply is not a function

Once the above error generated, every time user tries to open a context menu by right clicking on any existing table, that same error comes
In table creation dialog, if table is inherited from another table, if a new primary key is added manually there, the create sql will not have an entry for primary key
In table creation dialog, if primary key check box is checked while adding the row, a new row is added in primary key datagrid but unchecking the primary key checkbox from column datagrid, does not removes that row from primary key data grid.
In AutoVacuum tab, if user provides any invalid value to any parameter, then a error message should be prompted, only background color change would not tell user to change the value.
In table creation dialog, security label are not being added. javascript error is coming as mentioned below:
{"success": 0, "info": "", "result": null, "data": null, "errormsg": "can't adapt type 'Undefined'"}
In Table creation dialog, while adding foreign key, in action tab. if user click on 'x' button in "on update" or "on delete" select2 control, it gives error "Uncaught SyntaxError: Unexpected end of input"
In Table creation dialog, while adding a check constraint, "validated" button does not work properly
After successfully creation of table, "table name cannot be empty" error is not getting cleared.
In Table creation dialog, if user has added an empty column without entering its name or type and trying to add check constraint, it will add an empty constraint
In Table creation dialog, while adding an exclude constraint, for "character varying" column type, no operators are being listed
In Table creation dialog, while adding an exclude constraint, below mentioned error comes if user removes operator class by clicking 'x' on that control Uncaught TypeError: Cannot read property 'id' of undefined
In Table creation dialog, SQL is not getting generated for exclude constraint
In Table creation dialog, schema should be prefixed with table name in "of type" control
In Table creation dialog, while adding privileges, it always shows default privileges even if user has selected different privileges. (This works fine once user edit the privileges in edit table mode and shows only those privileges which user selects). Ashesh, please confirm the behaviour.

Table edit mode:

If in edit mode, any constraint is already having any comment, then remove it. It will not create the SQL for the same.
Changing Schema will give server error

Column Creation:

Save button is enabled by default
Data type validation is not provided. Save button is enabled just after providing column name
Length field limitation is not provided. (i.e. for numeric type, length should be allowed greater than 1000)

Exclusion constraint creation:

Access method should not be allowed to be empty. (currently by clicking 'x' will remove the selection in it)

Index creation:

No error message for name field when empty
No error message when column name is not provided while adding a column in index
While adding a column if no name is provided, "None" appears in SQL tab which will give error on OK button click
when comment is provided while creation, it gives error saying index does not exists. because schema name is not added before it.

Rule creation:

Name is empty error does not come till user enters something in definition tab
DO INSTEAD button does not make any difference to SQL (it works in edit mode)

Rule edit mode:

Add comment in edit mode, check the SQL in sql tab. Now come back to general tab and removes comment and check the sql tab again.
SQL for comment is still there with empty string as comment

Trigger Creation:

SQL is not proper when creating a trigger. "()" should be appended to function name in SQL.
It gives error while creating a trigger
"+" sign is visible in browser tree in front of trigger. either On expanding trigger, it should show the trigger function name or that "+" sign should not appear

Trigger edit node:

On removing comment, nothing happens. No sql is being created. Comment is still there in properties.

Regards,

Sanket Mehta

Sr Software engineer

Enterprisedb

On Mon, May 16, 2016 at 7:02 PM, Harshal Dhumal <harshal.dhumal@enterprisedb.com> wrote:

Hi,

PFA add-on patch for table and it's child node. (please apply this patch on version 6 patch)

Murtuza and I fixed following issues:

1. SQL formatting
2. Vacuum grid should not be editable in properties mode.
3. Column datatype does not get displayed in the properties and edit mode.
4. Do not allow to add another primary key if one already exist.

And another minor enhancements.

--
Harshal Dhumal
Software Engineer

EenterpriseDB

On Sat, May 14, 2016 at 2:03 AM, Harshal Dhumal <harshal.dhumal@enterprisedb.com> wrote:

Hi,

PFA updated patches (version: 6) for table and it's child nodes.

--
Harshal Dhumal
Software Engineer

EenterpriseDB

On Fri, May 13, 2016 at 6:55 PM, Khushboo Vashi <khushboo.vashi@enterprisedb.com> wrote:
Hi,

Review Comments:

- Please replace 'can not' with 'cannot' in all the validation messages.
- PG 9.1+ Inheritance issue as below:
CREATE TABLE public.table1
(
)
(
)
INHERITS (a)
WITH (
OIDS = FALSE
)
TABLESPACE pg_default;
ALTER TABLE public.table1
OWNER to postgres;

brackets are coming twice.
Fixed

- Please maintain one line spacing between SQL queries In the SQL Tab.
TODO

- Foreign Key Grid in Table css issue: Grid columns expands on the selection of the cell
Fixed

- Check Constraint: Validated? option should be True by default
Not sure about this. I cross checked in pgadmin3.

- pg 9.4: Exclude constraint does not render in SQL tab
Fixed

- Missing Security validation
Fixed

- Vacuum grid should not be editable in properties mode.
TODO (It's editable but one cannot save it on server from here as there is no save button.)

- Edit mode, Fill Factor can be allowed to be null.
TODO (This is generic issue in Integer and Numeric controls. This issue is covered in this partial patch)

- While dropping inheritance, related table columns drop SQL are also populated in the SQL Tab
ALTER TABLE public."Tbl"
NO INHERIT b;
ALTER TABLE public."Tbl" DROP COLUMN id;
ALTER TABLE public."Tbl" DROP COLUMN name;

Fixed

And also render error while clicking on the save button.
ERROR: syntax error at or near "["
LINE 2: INHERIT [;
^
Fixed

- in a Reverse Engineering SQL tab, schema_name.tablename should be there, currently only table_name displays.
Fixed

- Column SQL is showing below text with HTML

<html><head></head><body>-- Column: id -- ALTER TABLE public.a DROIP COLUMN id; ALTER TABLE public.a ADD COLUMN id integer;</body></html>

I was not able to reproduce exact issue but still I have fixed other issue which I found related to column SQL. Hopefully that will fix this issue as well.

- The column datatype dependency does not get cleared upon selection of another datatype.
For example, if I select numeric and gives the length and precision. After that I change the dat-type then, dependent fields should be get cleared.
Fixed.

- The column datatype does not get displayed in the properties and edit mode if the length and precision are given while creating a column.

TODO ( I cannot fix this blindly as this might introduce another issue(s) in column node. I will need Murtuza's help as he has worked on column node)

- Statistics is showing null value even after having value.
Fixed

- if the check constraints are not validated then put proper icon in tree and also it should be validated in edit mode.
Not reproducible.

NOTE: I have not checked the Indexes, Triggers and Rules nodes as I do not have much knowledge about it.

Thanks,
Khushboo

On Fri, May 13, 2016 at 5:24 PM, Harshal Dhumal <harshal.dhumal@enterprisedb.com> wrote:
Hi

PFA attached patches for table and it's child nodes with python 2.7 compatibility.

--
Sent via pgadmin-hackers mailing list (pgadmin-hackers@postgresql.org)
To make changes to your subscription:
http://www.postgresql.org/mailpref/pgadmin-hackers

Re: [PATCH] Tables node (pgAdmin4)

From

Harshal Dhumal

Date:

18 May 2016, 12:12:11

Hi,

PFA patch for table node (version 8.1). apply this patch on version 7 patch. Not all issue are fixed in this patch. Murtuza will be sending version 8.2 witch will have resolution for remaining issues. Apply version 8.2 patch on version 8.1

Harshal Dhumal

Software Engineer

EenterpriseDB

On Tue, May 17, 2016 at 10:12 PM, Sanket Mehta <sanket.mehta@enterprisedb.com> wrote:

Hi Harshal,

Below are my review comments:

I got below warning when I tried to apply the patch for table node as mentioned below:

Table creation:
Trailing white spaces warnings
$ git apply /projects/patches/pgadmin4/Table/table_14_May_V6.patch
/projects/patches/pgadmin4/Table/table_14_May_V6.patch:6008: trailing whitespace.
return false;
/projects/patches/pgadmin4/Table/table_14_May_V6.patch:6016: trailing whitespace.
return false;
warning: 2 lines add whitespace errors.

Fixed (These were introduced due to rules node.)

In Table creation dialog, while adding a new primary key, it does not allow to change the tablespace to empty. (which is not the case in case of tablespace in table)

Fixed

In Table creation dialog, while adding a new column, data type and name field must be mandatory. otherwise while clicking on save it gives below error
File "/projects/pgadmin4/web/pgadmin/browser/server_groups/servers/databases/schemas/tables/__init__.py", line 1319, in _parse_format_columns
c['cltype'] = self._cltype_formatter(c['cltype'])
KeyError: 'cltype

Fixed

In Table creation dialog, While adding a new column, in primary check box is needed to click twice in order to check it. Ideally it should be checked by only one click.

This is Backgrid behaviour.

In Table creation dialog, While adding a new column, primary key should not be allowed to added unless user has provided name and data type for at least one column.

Fixed

currently if user has clicked on add column button and immediately click on add primary key button, it will add a row in primary key data grid

Fixed

When delete table/drop cascade is apply on any table, i got a javascript error as mentioned below
node.js:94 Uncaught TypeError: self.canDrop.apply is not a function

Already fixed in other commit.

Once the above error generated, every time user tries to open a context menu by right clicking on any existing table, that same error comes

Already fixed in other commit.

In table creation dialog, if table is inherited from another table, if a new primary key is added manually there, the create sql will not have an entry for primary key

Fixed

In table creation dialog, if primary key check box is checked while adding the row, a new row is added in primary key datagrid but unchecking the primary key checkbox from column datagrid, does not removes that row from primary key data grid.

Fixed.

In AutoVacuum tab, if user provides any invalid value to any parameter, then a error message should be prompted, only background color change would not tell user to change the value.

Expected behaviour.

In table creation dialog, security label are not being added. javascript error is coming as mentioned below:
{"success": 0, "info": "", "result": null, "data": null, "errormsg": "can't adapt type 'Undefined'"}

Fixed

In Table creation dialog, while adding foreign key, in action tab. if user click on 'x' button in "on update" or "on delete" select2 control, it gives error "Uncaught SyntaxError: Unexpected end of input"

Fixed

In Table creation dialog, while adding a check constraint, "validated" button does not work properly

Fixed.

After successfully creation of table, "table name cannot be empty" error is not getting cleared.

Not reproducible.

In Table creation dialog, if user has added an empty column without entering its name or type and trying to add check constraint, it will add an empty constraint

Expected behaviour (Columns are not mandatory for check constrains)

In Table creation dialog, while adding an exclude constraint, for "character varying" column type, no operators are being listed

There are no operators for character varying data type.

In Table creation dialog, while adding an exclude constraint, below mentioned error comes if user removes operator class by clicking 'x' on that control Uncaught TypeError: Cannot read property 'id' of undefined

TODO

In Table creation dialog, SQL is not getting generated for exclude constraint

Fixed

In Table creation dialog, schema should be prefixed with table name in "of type" control

Fixed

In Table creation dialog, while adding privileges, it always shows default privileges even if user has selected different privileges. (This works fine once user edit the privileges in edit table mode and shows only those privileges which user selects). Ashesh, please confirm the behaviour.

Privileges are set correctly. Only it shows in incorrect order.

Table edit mode:
If in edit mode, any constraint is already having any comment, then remove it. It will not create the SQL for the same.

Fixed

Changing Schema will give server error

This is generic issue for each node.

Column Creation:
Save button is enabled by default
Data type validation is not provided. Save button is enabled just after providing column name
Length field limitation is not provided. (i.e. for numeric type, length should be allowed greater than 1000)
Exclusion constraint creation:
Access method should not be allowed to be empty. (currently by clicking 'x' will remove the selection in it)

Access method is optional.

Index creation:
No error message for name field when empty
No error message when column name is not provided while adding a column in index
While adding a column if no name is provided, "None" appears in SQL tab which will give error on OK button click
when comment is provided while creation, it gives error saying index does not exists. because schema name is not added before it.
Rule creation:
Name is empty error does not come till user enters something in definition tab
DO INSTEAD button does not make any difference to SQL (it works in edit mode)
Rule edit mode:
Add comment in edit mode, check the SQL in sql tab. Now come back to general tab and removes comment and check the sql tab again.
SQL for comment is still there with empty string as comment
Trigger Creation:
SQL is not proper when creating a trigger. "()" should be appended to function name in SQL.
It gives error while creating a trigger
"+" sign is visible in browser tree in front of trigger. either On expanding trigger, it should show the trigger function name or that "+" sign should not appear
Trigger edit node:

On removing comment, nothing happens. No sql is being created. Comment is still there in properties.

Regards,
Sanket Mehta
Sr Software engineer
Enterprisedb

Attachment

table_addon_V8_1.patch

Re: [PATCH] Tables node (pgAdmin4)

From

Murtuza Zabuawala

Date:

18 May 2016, 12:50:32

Hi,

PFA table add-on patch version 8.2

Regards,

Murtuza Zabuawala
EnterpriseDB: http://www.enterprisedb.com
The Enterprise PostgreSQL Company

On Wed, May 18, 2016 at 2:42 PM, Harshal Dhumal <harshal.dhumal@enterprisedb.com> wrote:

Hi,

PFA patch for table node (version 8.1). apply this patch on version 7 patch. Not all issue are fixed in this patch. Murtuza will be sending version 8.2 witch will have resolution for remaining issues. Apply version 8.2 patch on version 8.1

--
Harshal Dhumal
Software Engineer

EenterpriseDB

On Tue, May 17, 2016 at 10:12 PM, Sanket Mehta <sanket.mehta@enterprisedb.com> wrote:
Hi Harshal,

Below are my review comments:

I got below warning when I tried to apply the patch for table node as mentioned below:

Table creation:
Trailing white spaces warnings
$ git apply /projects/patches/pgadmin4/Table/table_14_May_V6.patch
/projects/patches/pgadmin4/Table/table_14_May_V6.patch:6008: trailing whitespace.
return false;
/projects/patches/pgadmin4/Table/table_14_May_V6.patch:6016: trailing whitespace.
return false;
warning: 2 lines add whitespace errors.

Fixed (These were introduced due to rules node.)

In Table creation dialog, while adding a new primary key, it does not allow to change the tablespace to empty. (which is not the case in case of tablespace in table)
Fixed
In Table creation dialog, while adding a new column, data type and name field must be mandatory. otherwise while clicking on save it gives below error
File "/projects/pgadmin4/web/pgadmin/browser/server_groups/servers/databases/schemas/tables/__init__.py", line 1319, in _parse_format_columns
c['cltype'] = self._cltype_formatter(c['cltype'])
KeyError: 'cltype
Fixed

In Table creation dialog, While adding a new column, in primary check box is needed to click twice in order to check it. Ideally it should be checked by only one click.
This is Backgrid behaviour.
In Table creation dialog, While adding a new column, primary key should not be allowed to added unless user has provided name and data type for at least one column.
Fixed
currently if user has clicked on add column button and immediately click on add primary key button, it will add a row in primary key data grid
Fixed
When delete table/drop cascade is apply on any table, i got a javascript error as mentioned below
node.js:94 Uncaught TypeError: self.canDrop.apply is not a function
Already fixed in other commit.

Once the above error generated, every time user tries to open a context menu by right clicking on any existing table, that same error comes
Already fixed in other commit.
In table creation dialog, if table is inherited from another table, if a new primary key is added manually there, the create sql will not have an entry for primary key
Fixed
In table creation dialog, if primary key check box is checked while adding the row, a new row is added in primary key datagrid but unchecking the primary key checkbox from column datagrid, does not removes that row from primary key data grid.
Fixed.
In AutoVacuum tab, if user provides any invalid value to any parameter, then a error message should be prompted, only background color change would not tell user to change the value.
Expected behaviour.
In table creation dialog, security label are not being added. javascript error is coming as mentioned below:
{"success": 0, "info": "", "result": null, "data": null, "errormsg": "can't adapt type 'Undefined'"}
Fixed
In Table creation dialog, while adding foreign key, in action tab. if user click on 'x' button in "on update" or "on delete" select2 control, it gives error "Uncaught SyntaxError: Unexpected end of input"
Fixed
In Table creation dialog, while adding a check constraint, "validated" button does not work properly
Fixed.
After successfully creation of table, "table name cannot be empty" error is not getting cleared.
Not reproducible.
In Table creation dialog, if user has added an empty column without entering its name or type and trying to add check constraint, it will add an empty constraint
Expected behaviour (Columns are not mandatory for check constrains)
In Table creation dialog, while adding an exclude constraint, for "character varying" column type, no operators are being listed
There are no operators for character varying data type.
In Table creation dialog, while adding an exclude constraint, below mentioned error comes if user removes operator class by clicking 'x' on that control Uncaught TypeError: Cannot read property 'id' of undefined
TODO
In Table creation dialog, SQL is not getting generated for exclude constraint
Fixed
In Table creation dialog, schema should be prefixed with table name in "of type" control
Fixed
In Table creation dialog, while adding privileges, it always shows default privileges even if user has selected different privileges. (This works fine once user edit the privileges in edit table mode and shows only those privileges which user selects). Ashesh, please confirm the behaviour.
Privileges are set correctly. Only it shows in incorrect order.

Table edit mode:
If in edit mode, any constraint is already having any comment, then remove it. It will not create the SQL for the same.

Fixed
Changing Schema will give server error
This is generic issue for each node.

Column Creation:
Save button is enabled by default
Data type validation is not provided. Save button is enabled just after providing column name
Length field limitation is not provided. (i.e. for numeric type, length should be allowed greater than 1000)

Fixed

Exclusion constraint creation:
Access method should not be allowed to be empty. (currently by clicking 'x' will remove the selection in it)
Access method is optional.

Index creation:
No error message for name field when empty
No error message when column name is not provided while adding a column in index
While adding a column if no name is provided, "None" appears in SQL tab which will give error on OK button click
when comment is provided while creation, it gives error saying index does not exists. because schema name is not added before it.

Fixed

Rule creation:
Name is empty error does not come till user enters something in definition tab
DO INSTEAD button does not make any difference to SQL (it works in edit mode)

Surinder will send patch

Rule edit mode:
Add comment in edit mode, check the SQL in sql tab. Now come back to general tab and removes comment and check the sql tab again.
SQL for comment is still there with empty string as comment

Surinder will send patch

Trigger Creation:
SQL is not proper when creating a trigger. "()" should be appended to function name in SQL.
It gives error while creating a trigger
"+" sign is visible in browser tree in front of trigger. either On expanding trigger, it should show the trigger function name or that "+" sign should not appear

Fixed

Trigger edit node:
On removing comment, nothing happens. No sql is being created. Comment is still there in properties.

Fixed

Regards,
Sanket Mehta
Sr Software engineer
Enterprisedb

--
Sent via pgadmin-hackers mailing list (pgadmin-hackers@postgresql.org)
To make changes to your subscription:
http://www.postgresql.org/mailpref/pgadmin-hackers

Attachment

table_v8.2.patch

Re: [PATCH] Tables node (pgAdmin4)

From

Murtuza Zabuawala

Date:

18 May 2016, 13:49:54

Hi,

PFA table add-on patch version 8.3. (apply after 8.2)

Regards,

Murtuza Zabuawala
EnterpriseDB: http://www.enterprisedb.com
The Enterprise PostgreSQL Company

On Wed, May 18, 2016 at 3:20 PM, Murtuza Zabuawala <murtuza.zabuawala@enterprisedb.com> wrote:

Hi,

PFA table add-on patch version 8.2

--
Regards,
Murtuza Zabuawala
EnterpriseDB: http://www.enterprisedb.com
The Enterprise PostgreSQL Company

On Wed, May 18, 2016 at 2:42 PM, Harshal Dhumal <harshal.dhumal@enterprisedb.com> wrote:
Hi,

PFA patch for table node (version 8.1). apply this patch on version 7 patch. Not all issue are fixed in this patch. Murtuza will be sending version 8.2 witch will have resolution for remaining issues. Apply version 8.2 patch on version 8.1

--
Harshal Dhumal
Software Engineer

EenterpriseDB

On Tue, May 17, 2016 at 10:12 PM, Sanket Mehta <sanket.mehta@enterprisedb.com> wrote:
Hi Harshal,

Below are my review comments:

I got below warning when I tried to apply the patch for table node as mentioned below:

Table creation:
Trailing white spaces warnings
$ git apply /projects/patches/pgadmin4/Table/table_14_May_V6.patch
/projects/patches/pgadmin4/Table/table_14_May_V6.patch:6008: trailing whitespace.
return false;
/projects/patches/pgadmin4/Table/table_14_May_V6.patch:6016: trailing whitespace.
return false;
warning: 2 lines add whitespace errors.

Fixed (These were introduced due to rules node.)

In Table creation dialog, while adding a new primary key, it does not allow to change the tablespace to empty. (which is not the case in case of tablespace in table)
Fixed
In Table creation dialog, while adding a new column, data type and name field must be mandatory. otherwise while clicking on save it gives below error
File "/projects/pgadmin4/web/pgadmin/browser/server_groups/servers/databases/schemas/tables/__init__.py", line 1319, in _parse_format_columns
c['cltype'] = self._cltype_formatter(c['cltype'])
KeyError: 'cltype
Fixed

In Table creation dialog, While adding a new column, in primary check box is needed to click twice in order to check it. Ideally it should be checked by only one click.
This is Backgrid behaviour.
In Table creation dialog, While adding a new column, primary key should not be allowed to added unless user has provided name and data type for at least one column.
Fixed
currently if user has clicked on add column button and immediately click on add primary key button, it will add a row in primary key data grid
Fixed
When delete table/drop cascade is apply on any table, i got a javascript error as mentioned below
node.js:94 Uncaught TypeError: self.canDrop.apply is not a function
Already fixed in other commit.

Once the above error generated, every time user tries to open a context menu by right clicking on any existing table, that same error comes
Already fixed in other commit.
In table creation dialog, if table is inherited from another table, if a new primary key is added manually there, the create sql will not have an entry for primary key
Fixed
In table creation dialog, if primary key check box is checked while adding the row, a new row is added in primary key datagrid but unchecking the primary key checkbox from column datagrid, does not removes that row from primary key data grid.
Fixed.
In AutoVacuum tab, if user provides any invalid value to any parameter, then a error message should be prompted, only background color change would not tell user to change the value.
Expected behaviour.
In table creation dialog, security label are not being added. javascript error is coming as mentioned below:
{"success": 0, "info": "", "result": null, "data": null, "errormsg": "can't adapt type 'Undefined'"}
Fixed
In Table creation dialog, while adding foreign key, in action tab. if user click on 'x' button in "on update" or "on delete" select2 control, it gives error "Uncaught SyntaxError: Unexpected end of input"
Fixed
In Table creation dialog, while adding a check constraint, "validated" button does not work properly
Fixed.
After successfully creation of table, "table name cannot be empty" error is not getting cleared.
Not reproducible.
In Table creation dialog, if user has added an empty column without entering its name or type and trying to add check constraint, it will add an empty constraint
Expected behaviour (Columns are not mandatory for check constrains)
In Table creation dialog, while adding an exclude constraint, for "character varying" column type, no operators are being listed
There are no operators for character varying data type.
In Table creation dialog, while adding an exclude constraint, below mentioned error comes if user removes operator class by clicking 'x' on that control Uncaught TypeError: Cannot read property 'id' of undefined
TODO
In Table creation dialog, SQL is not getting generated for exclude constraint
Fixed
In Table creation dialog, schema should be prefixed with table name in "of type" control
Fixed
In Table creation dialog, while adding privileges, it always shows default privileges even if user has selected different privileges. (This works fine once user edit the privileges in edit table mode and shows only those privileges which user selects). Ashesh, please confirm the behaviour.
Privileges are set correctly. Only it shows in incorrect order.

Table edit mode:
If in edit mode, any constraint is already having any comment, then remove it. It will not create the SQL for the same.

Fixed
Changing Schema will give server error
This is generic issue for each node.

Column Creation:
Save button is enabled by default
Data type validation is not provided. Save button is enabled just after providing column name
Length field limitation is not provided. (i.e. for numeric type, length should be allowed greater than 1000)
Fixed
Exclusion constraint creation:
Access method should not be allowed to be empty. (currently by clicking 'x' will remove the selection in it)
Access method is optional.

Index creation:
No error message for name field when empty
No error message when column name is not provided while adding a column in index
While adding a column if no name is provided, "None" appears in SQL tab which will give error on OK button click
when comment is provided while creation, it gives error saying index does not exists. because schema name is not added before it.
Fixed
Rule creation:
Name is empty error does not come till user enters something in definition tab
DO INSTEAD button does not make any difference to SQL (it works in edit mode)
Surinder will send patch
Rule edit mode:
Add comment in edit mode, check the SQL in sql tab. Now come back to general tab and removes comment and check the sql tab again.
SQL for comment is still there with empty string as comment
Surinder will send patch
Trigger Creation:
SQL is not proper when creating a trigger. "()" should be appended to function name in SQL.
It gives error while creating a trigger
"+" sign is visible in browser tree in front of trigger. either On expanding trigger, it should show the trigger function name or that "+" sign should not appear
Fixed
Trigger edit node:
On removing comment, nothing happens. No sql is being created. Comment is still there in properties.
Fixed

Regards,
Sanket Mehta
Sr Software engineer
Enterprisedb

--
Sent via pgadmin-hackers mailing list (pgadmin-hackers@postgresql.org)
To make changes to your subscription:
http://www.postgresql.org/mailpref/pgadmin-hackers

Attachment

table_v8.3.patch

Re: [PATCH] Tables node (pgAdmin4)

From

Murtuza Zabuawala

Date:

18 May 2016, 14:13:36

Hi,

PFA table add-on patch version 8.4. (apply after 8.3)

This includes changes for trigger node issues.

Regards,

Murtuza Zabuawala
EnterpriseDB: http://www.enterprisedb.com
The Enterprise PostgreSQL Company

On Wed, May 18, 2016 at 4:19 PM, Murtuza Zabuawala <murtuza.zabuawala@enterprisedb.com> wrote:

Hi,

PFA table add-on patch version 8.3. (apply after 8.2)

--
Regards,
Murtuza Zabuawala
EnterpriseDB: http://www.enterprisedb.com
The Enterprise PostgreSQL Company

On Wed, May 18, 2016 at 3:20 PM, Murtuza Zabuawala <murtuza.zabuawala@enterprisedb.com> wrote:
Hi,

PFA table add-on patch version 8.2

--
Regards,
Murtuza Zabuawala
EnterpriseDB: http://www.enterprisedb.com
The Enterprise PostgreSQL Company

On Wed, May 18, 2016 at 2:42 PM, Harshal Dhumal <harshal.dhumal@enterprisedb.com> wrote:
Hi,

PFA patch for table node (version 8.1). apply this patch on version 7 patch. Not all issue are fixed in this patch. Murtuza will be sending version 8.2 witch will have resolution for remaining issues. Apply version 8.2 patch on version 8.1

--
Harshal Dhumal
Software Engineer

EenterpriseDB

On Tue, May 17, 2016 at 10:12 PM, Sanket Mehta <sanket.mehta@enterprisedb.com> wrote:
Hi Harshal,

Below are my review comments:

I got below warning when I tried to apply the patch for table node as mentioned below:

Table creation:
Trailing white spaces warnings
$ git apply /projects/patches/pgadmin4/Table/table_14_May_V6.patch
/projects/patches/pgadmin4/Table/table_14_May_V6.patch:6008: trailing whitespace.
return false;
/projects/patches/pgadmin4/Table/table_14_May_V6.patch:6016: trailing whitespace.
return false;
warning: 2 lines add whitespace errors.

Fixed (These were introduced due to rules node.)

In Table creation dialog, while adding a new primary key, it does not allow to change the tablespace to empty. (which is not the case in case of tablespace in table)
Fixed
In Table creation dialog, while adding a new column, data type and name field must be mandatory. otherwise while clicking on save it gives below error
File "/projects/pgadmin4/web/pgadmin/browser/server_groups/servers/databases/schemas/tables/__init__.py", line 1319, in _parse_format_columns
c['cltype'] = self._cltype_formatter(c['cltype'])
KeyError: 'cltype
Fixed

In Table creation dialog, While adding a new column, in primary check box is needed to click twice in order to check it. Ideally it should be checked by only one click.
This is Backgrid behaviour.
In Table creation dialog, While adding a new column, primary key should not be allowed to added unless user has provided name and data type for at least one column.
Fixed
currently if user has clicked on add column button and immediately click on add primary key button, it will add a row in primary key data grid
Fixed
When delete table/drop cascade is apply on any table, i got a javascript error as mentioned below
node.js:94 Uncaught TypeError: self.canDrop.apply is not a function
Already fixed in other commit.

Once the above error generated, every time user tries to open a context menu by right clicking on any existing table, that same error comes
Already fixed in other commit.
In table creation dialog, if table is inherited from another table, if a new primary key is added manually there, the create sql will not have an entry for primary key
Fixed
In table creation dialog, if primary key check box is checked while adding the row, a new row is added in primary key datagrid but unchecking the primary key checkbox from column datagrid, does not removes that row from primary key data grid.
Fixed.
In AutoVacuum tab, if user provides any invalid value to any parameter, then a error message should be prompted, only background color change would not tell user to change the value.
Expected behaviour.
In table creation dialog, security label are not being added. javascript error is coming as mentioned below:
{"success": 0, "info": "", "result": null, "data": null, "errormsg": "can't adapt type 'Undefined'"}
Fixed
In Table creation dialog, while adding foreign key, in action tab. if user click on 'x' button in "on update" or "on delete" select2 control, it gives error "Uncaught SyntaxError: Unexpected end of input"
Fixed
In Table creation dialog, while adding a check constraint, "validated" button does not work properly
Fixed.
After successfully creation of table, "table name cannot be empty" error is not getting cleared.
Not reproducible.
In Table creation dialog, if user has added an empty column without entering its name or type and trying to add check constraint, it will add an empty constraint
Expected behaviour (Columns are not mandatory for check constrains)
In Table creation dialog, while adding an exclude constraint, for "character varying" column type, no operators are being listed
There are no operators for character varying data type.
In Table creation dialog, while adding an exclude constraint, below mentioned error comes if user removes operator class by clicking 'x' on that control Uncaught TypeError: Cannot read property 'id' of undefined
TODO
In Table creation dialog, SQL is not getting generated for exclude constraint
Fixed
In Table creation dialog, schema should be prefixed with table name in "of type" control
Fixed
In Table creation dialog, while adding privileges, it always shows default privileges even if user has selected different privileges. (This works fine once user edit the privileges in edit table mode and shows only those privileges which user selects). Ashesh, please confirm the behaviour.
Privileges are set correctly. Only it shows in incorrect order.

Table edit mode:
If in edit mode, any constraint is already having any comment, then remove it. It will not create the SQL for the same.

Fixed
Changing Schema will give server error
This is generic issue for each node.

Column Creation:
Save button is enabled by default
Data type validation is not provided. Save button is enabled just after providing column name
Length field limitation is not provided. (i.e. for numeric type, length should be allowed greater than 1000)
Fixed
Exclusion constraint creation:
Access method should not be allowed to be empty. (currently by clicking 'x' will remove the selection in it)
Access method is optional.

Index creation:
No error message for name field when empty
No error message when column name is not provided while adding a column in index
While adding a column if no name is provided, "None" appears in SQL tab which will give error on OK button click
when comment is provided while creation, it gives error saying index does not exists. because schema name is not added before it.
Fixed
Rule creation:
Name is empty error does not come till user enters something in definition tab
DO INSTEAD button does not make any difference to SQL (it works in edit mode)
Surinder will send patch
Rule edit mode:
Add comment in edit mode, check the SQL in sql tab. Now come back to general tab and removes comment and check the sql tab again.
SQL for comment is still there with empty string as comment
Surinder will send patch
Trigger Creation:
SQL is not proper when creating a trigger. "()" should be appended to function name in SQL.
It gives error while creating a trigger
"+" sign is visible in browser tree in front of trigger. either On expanding trigger, it should show the trigger function name or that "+" sign should not appear
Fixed
Trigger edit node:
On removing comment, nothing happens. No sql is being created. Comment is still there in properties.
Fixed

Regards,
Sanket Mehta
Sr Software engineer
Enterprisedb

--
Sent via pgadmin-hackers mailing list (pgadmin-hackers@postgresql.org)
To make changes to your subscription:
http://www.postgresql.org/mailpref/pgadmin-hackers

Attachment

table_v8.4.patch

Re: [PATCH] Tables node (pgAdmin4)

From

Surinder Kumar

Date:

18 May 2016, 17:18:09

Hi,

Please find add-on patch for Column node.

Issue fixed:

1. Column node, 'Primary key' switch should be hidden under view node, refer column node visible condition for table node

2. 'Inherited from' column should be hidden.

2. Other columns except Default value should be disabled.

On Wed, May 18, 2016 at 4:43 PM, Murtuza Zabuawala <murtuza.zabuawala@enterprisedb.com> wrote:

Hi,

PFA table add-on patch version 8.4. (apply after 8.3)
This includes changes for trigger node issues.

--
Regards,
Murtuza Zabuawala
EnterpriseDB: http://www.enterprisedb.com
The Enterprise PostgreSQL Company

On Wed, May 18, 2016 at 4:19 PM, Murtuza Zabuawala <murtuza.zabuawala@enterprisedb.com> wrote:
Hi,

PFA table add-on patch version 8.3. (apply after 8.2)

--
Regards,
Murtuza Zabuawala
EnterpriseDB: http://www.enterprisedb.com
The Enterprise PostgreSQL Company

On Wed, May 18, 2016 at 3:20 PM, Murtuza Zabuawala <murtuza.zabuawala@enterprisedb.com> wrote:
Hi,

PFA table add-on patch version 8.2

--
Regards,
Murtuza Zabuawala
EnterpriseDB: http://www.enterprisedb.com
The Enterprise PostgreSQL Company

On Wed, May 18, 2016 at 2:42 PM, Harshal Dhumal <harshal.dhumal@enterprisedb.com> wrote:
Hi,

PFA patch for table node (version 8.1). apply this patch on version 7 patch. Not all issue are fixed in this patch. Murtuza will be sending version 8.2 witch will have resolution for remaining issues. Apply version 8.2 patch on version 8.1

--
Harshal Dhumal
Software Engineer

EenterpriseDB

On Tue, May 17, 2016 at 10:12 PM, Sanket Mehta <sanket.mehta@enterprisedb.com> wrote:
Hi Harshal,

Below are my review comments:

I got below warning when I tried to apply the patch for table node as mentioned below:

Table creation:
Trailing white spaces warnings
$ git apply /projects/patches/pgadmin4/Table/table_14_May_V6.patch
/projects/patches/pgadmin4/Table/table_14_May_V6.patch:6008: trailing whitespace.
return false;
/projects/patches/pgadmin4/Table/table_14_May_V6.patch:6016: trailing whitespace.
return false;
warning: 2 lines add whitespace errors.

Fixed (These were introduced due to rules node.)

In Table creation dialog, while adding a new primary key, it does not allow to change the tablespace to empty. (which is not the case in case of tablespace in table)
Fixed
In Table creation dialog, while adding a new column, data type and name field must be mandatory. otherwise while clicking on save it gives below error
File "/projects/pgadmin4/web/pgadmin/browser/server_groups/servers/databases/schemas/tables/__init__.py", line 1319, in _parse_format_columns
c['cltype'] = self._cltype_formatter(c['cltype'])
KeyError: 'cltype
Fixed

In Table creation dialog, While adding a new column, in primary check box is needed to click twice in order to check it. Ideally it should be checked by only one click.
This is Backgrid behaviour.
In Table creation dialog, While adding a new column, primary key should not be allowed to added unless user has provided name and data type for at least one column.
Fixed
currently if user has clicked on add column button and immediately click on add primary key button, it will add a row in primary key data grid
Fixed
When delete table/drop cascade is apply on any table, i got a javascript error as mentioned below
node.js:94 Uncaught TypeError: self.canDrop.apply is not a function
Already fixed in other commit.

Once the above error generated, every time user tries to open a context menu by right clicking on any existing table, that same error comes
Already fixed in other commit.
In table creation dialog, if table is inherited from another table, if a new primary key is added manually there, the create sql will not have an entry for primary key
Fixed
In table creation dialog, if primary key check box is checked while adding the row, a new row is added in primary key datagrid but unchecking the primary key checkbox from column datagrid, does not removes that row from primary key data grid.
Fixed.
In AutoVacuum tab, if user provides any invalid value to any parameter, then a error message should be prompted, only background color change would not tell user to change the value.
Expected behaviour.
In table creation dialog, security label are not being added. javascript error is coming as mentioned below:
{"success": 0, "info": "", "result": null, "data": null, "errormsg": "can't adapt type 'Undefined'"}
Fixed
In Table creation dialog, while adding foreign key, in action tab. if user click on 'x' button in "on update" or "on delete" select2 control, it gives error "Uncaught SyntaxError: Unexpected end of input"
Fixed
In Table creation dialog, while adding a check constraint, "validated" button does not work properly
Fixed.
After successfully creation of table, "table name cannot be empty" error is not getting cleared.
Not reproducible.
In Table creation dialog, if user has added an empty column without entering its name or type and trying to add check constraint, it will add an empty constraint
Expected behaviour (Columns are not mandatory for check constrains)
In Table creation dialog, while adding an exclude constraint, for "character varying" column type, no operators are being listed
There are no operators for character varying data type.
In Table creation dialog, while adding an exclude constraint, below mentioned error comes if user removes operator class by clicking 'x' on that control Uncaught TypeError: Cannot read property 'id' of undefined
TODO
In Table creation dialog, SQL is not getting generated for exclude constraint
Fixed
In Table creation dialog, schema should be prefixed with table name in "of type" control
Fixed
In Table creation dialog, while adding privileges, it always shows default privileges even if user has selected different privileges. (This works fine once user edit the privileges in edit table mode and shows only those privileges which user selects). Ashesh, please confirm the behaviour.
Privileges are set correctly. Only it shows in incorrect order.

Table edit mode:
If in edit mode, any constraint is already having any comment, then remove it. It will not create the SQL for the same.

Fixed
Changing Schema will give server error
This is generic issue for each node.

Column Creation:
Save button is enabled by default
Data type validation is not provided. Save button is enabled just after providing column name
Length field limitation is not provided. (i.e. for numeric type, length should be allowed greater than 1000)
Fixed
Exclusion constraint creation:
Access method should not be allowed to be empty. (currently by clicking 'x' will remove the selection in it)
Access method is optional.

Index creation:
No error message for name field when empty
No error message when column name is not provided while adding a column in index
While adding a column if no name is provided, "None" appears in SQL tab which will give error on OK button click
when comment is provided while creation, it gives error saying index does not exists. because schema name is not added before it.
Fixed
Rule creation:
Name is empty error does not come till user enters something in definition tab
DO INSTEAD button does not make any difference to SQL (it works in edit mode)
Surinder will send patch
Rule edit mode:
Add comment in edit mode, check the SQL in sql tab. Now come back to general tab and removes comment and check the sql tab again.
SQL for comment is still there with empty string as comment
Surinder will send patch
Trigger Creation:
SQL is not proper when creating a trigger. "()" should be appended to function name in SQL.
It gives error while creating a trigger
"+" sign is visible in browser tree in front of trigger. either On expanding trigger, it should show the trigger function name or that "+" sign should not appear
Fixed
Trigger edit node:
On removing comment, nothing happens. No sql is being created. Comment is still there in properties.
Fixed

Regards,
Sanket Mehta
Sr Software engineer
Enterprisedb

--
Sent via pgadmin-hackers mailing list (pgadmin-hackers@postgresql.org)
To make changes to your subscription:
http://www.postgresql.org/mailpref/pgadmin-hackers

--
Sent via pgadmin-hackers mailing list (pgadmin-hackers@postgresql.org)
To make changes to your subscription:
http://www.postgresql.org/mailpref/pgadmin-hackers

Attachment

table_column_add_on_v8.5.patch

Re: [PATCH] Tables node (pgAdmin4)

From

Harshal Dhumal

Date:

19 May 2016, 20:17:22

Hi,

PFA updated patch for table and all it's child nodes (Version 9). This patch does not depend on any of existing table node patch.

Major change in this patch: Unlike pgAdmin3 now in table create mode any constraint(s) created (but not saved) will listen to table column changes and adapt themselves accordingly.

For e.g.

In table create mode user adds column definition with name "col1" then adds constraint which includes column "col1". Now user changes column name to "col2" then constraint will listen to this change and adapt the column name from "col1" to "col2" in constraint definition. Also if column "col2" is removed then constraint will also remove the column "col2" from it's definition.

Harshal Dhumal

Software Engineer

EenterpriseDB

Attachment

table_19_May_V9.patch.zip

Re: [PATCH] Tables node (pgAdmin4)

From

Harshal Dhumal

Date:

19 May 2016, 23:08:14

Hi,

PFA updated patch for table and all it's child nodes (Version 9). This patch does not depend on any of existing table node patch.

Major change in this patch: Unlike pgAdmin3 now in table create mode any constraint(s) created (but not saved) will listen to table column changes and adapt themselves accordingly.

For e.g.

Harshal Dhumal

Software Engineer

EenterpriseDB

On Wed, May 18, 2016 at 7:47 PM, Surinder Kumar <surinder.kumar@enterprisedb.com> wrote:

Hi,

Please find add-on patch for Column node.
Issue fixed:
1. Column node, 'Primary key' switch should be hidden under view node, refer column node visible condition for table node
2. 'Inherited from' column should be hidden.
2. Other columns except Default value should be disabled.

On Wed, May 18, 2016 at 4:43 PM, Murtuza Zabuawala <murtuza.zabuawala@enterprisedb.com> wrote:
Hi,

PFA table add-on patch version 8.4. (apply after 8.3)
This includes changes for trigger node issues.

--
Regards,
Murtuza Zabuawala
EnterpriseDB: http://www.enterprisedb.com
The Enterprise PostgreSQL Company

On Wed, May 18, 2016 at 4:19 PM, Murtuza Zabuawala <murtuza.zabuawala@enterprisedb.com> wrote:
Hi,

PFA table add-on patch version 8.3. (apply after 8.2)

--
Regards,
Murtuza Zabuawala
EnterpriseDB: http://www.enterprisedb.com
The Enterprise PostgreSQL Company

On Wed, May 18, 2016 at 3:20 PM, Murtuza Zabuawala <murtuza.zabuawala@enterprisedb.com> wrote:
Hi,

PFA table add-on patch version 8.2

--
Regards,
Murtuza Zabuawala
EnterpriseDB: http://www.enterprisedb.com
The Enterprise PostgreSQL Company

On Wed, May 18, 2016 at 2:42 PM, Harshal Dhumal <harshal.dhumal@enterprisedb.com> wrote:
Hi,

PFA patch for table node (version 8.1). apply this patch on version 7 patch. Not all issue are fixed in this patch. Murtuza will be sending version 8.2 witch will have resolution for remaining issues. Apply version 8.2 patch on version 8.1

--
Harshal Dhumal
Software Engineer

EenterpriseDB

On Tue, May 17, 2016 at 10:12 PM, Sanket Mehta <sanket.mehta@enterprisedb.com> wrote:
Hi Harshal,

Below are my review comments:

I got below warning when I tried to apply the patch for table node as mentioned below:

Table creation:
Trailing white spaces warnings
$ git apply /projects/patches/pgadmin4/Table/table_14_May_V6.patch
/projects/patches/pgadmin4/Table/table_14_May_V6.patch:6008: trailing whitespace.
return false;
/projects/patches/pgadmin4/Table/table_14_May_V6.patch:6016: trailing whitespace.
return false;
warning: 2 lines add whitespace errors.

Fixed (These were introduced due to rules node.)

In Table creation dialog, while adding a new primary key, it does not allow to change the tablespace to empty. (which is not the case in case of tablespace in table)
Fixed
In Table creation dialog, while adding a new column, data type and name field must be mandatory. otherwise while clicking on save it gives below error
File "/projects/pgadmin4/web/pgadmin/browser/server_groups/servers/databases/schemas/tables/__init__.py", line 1319, in _parse_format_columns
c['cltype'] = self._cltype_formatter(c['cltype'])
KeyError: 'cltype
Fixed

In Table creation dialog, While adding a new column, in primary check box is needed to click twice in order to check it. Ideally it should be checked by only one click.
This is Backgrid behaviour.
In Table creation dialog, While adding a new column, primary key should not be allowed to added unless user has provided name and data type for at least one column.
Fixed
currently if user has clicked on add column button and immediately click on add primary key button, it will add a row in primary key data grid
Fixed
When delete table/drop cascade is apply on any table, i got a javascript error as mentioned below
node.js:94 Uncaught TypeError: self.canDrop.apply is not a function
Already fixed in other commit.

Once the above error generated, every time user tries to open a context menu by right clicking on any existing table, that same error comes
Already fixed in other commit.
In table creation dialog, if table is inherited from another table, if a new primary key is added manually there, the create sql will not have an entry for primary key
Fixed
In table creation dialog, if primary key check box is checked while adding the row, a new row is added in primary key datagrid but unchecking the primary key checkbox from column datagrid, does not removes that row from primary key data grid.
Fixed.
In AutoVacuum tab, if user provides any invalid value to any parameter, then a error message should be prompted, only background color change would not tell user to change the value.
Expected behaviour.
In table creation dialog, security label are not being added. javascript error is coming as mentioned below:
{"success": 0, "info": "", "result": null, "data": null, "errormsg": "can't adapt type 'Undefined'"}
Fixed
In Table creation dialog, while adding foreign key, in action tab. if user click on 'x' button in "on update" or "on delete" select2 control, it gives error "Uncaught SyntaxError: Unexpected end of input"
Fixed
In Table creation dialog, while adding a check constraint, "validated" button does not work properly
Fixed.
After successfully creation of table, "table name cannot be empty" error is not getting cleared.
Not reproducible.
In Table creation dialog, if user has added an empty column without entering its name or type and trying to add check constraint, it will add an empty constraint
Expected behaviour (Columns are not mandatory for check constrains)
In Table creation dialog, while adding an exclude constraint, for "character varying" column type, no operators are being listed
There are no operators for character varying data type.
In Table creation dialog, while adding an exclude constraint, below mentioned error comes if user removes operator class by clicking 'x' on that control Uncaught TypeError: Cannot read property 'id' of undefined
TODO
In Table creation dialog, SQL is not getting generated for exclude constraint
Fixed
In Table creation dialog, schema should be prefixed with table name in "of type" control
Fixed
In Table creation dialog, while adding privileges, it always shows default privileges even if user has selected different privileges. (This works fine once user edit the privileges in edit table mode and shows only those privileges which user selects). Ashesh, please confirm the behaviour.
Privileges are set correctly. Only it shows in incorrect order.

Table edit mode:
If in edit mode, any constraint is already having any comment, then remove it. It will not create the SQL for the same.

Fixed
Changing Schema will give server error
This is generic issue for each node.

Column Creation:
Save button is enabled by default
Data type validation is not provided. Save button is enabled just after providing column name
Length field limitation is not provided. (i.e. for numeric type, length should be allowed greater than 1000)
Fixed
Exclusion constraint creation:
Access method should not be allowed to be empty. (currently by clicking 'x' will remove the selection in it)
Access method is optional.

Index creation:
No error message for name field when empty
No error message when column name is not provided while adding a column in index
While adding a column if no name is provided, "None" appears in SQL tab which will give error on OK button click
when comment is provided while creation, it gives error saying index does not exists. because schema name is not added before it.
Fixed
Rule creation:
Name is empty error does not come till user enters something in definition tab
DO INSTEAD button does not make any difference to SQL (it works in edit mode)
Surinder will send patch
Rule edit mode:
Add comment in edit mode, check the SQL in sql tab. Now come back to general tab and removes comment and check the sql tab again.
SQL for comment is still there with empty string as comment
Surinder will send patch
Trigger Creation:
SQL is not proper when creating a trigger. "()" should be appended to function name in SQL.
It gives error while creating a trigger
"+" sign is visible in browser tree in front of trigger. either On expanding trigger, it should show the trigger function name or that "+" sign should not appear
Fixed
Trigger edit node:
On removing comment, nothing happens. No sql is being created. Comment is still there in properties.
Fixed

Regards,
Sanket Mehta
Sr Software engineer
Enterprisedb

--
Sent via pgadmin-hackers mailing list (pgadmin-hackers@postgresql.org)
To make changes to your subscription:
http://www.postgresql.org/mailpref/pgadmin-hackers

--
Sent via pgadmin-hackers mailing list (pgadmin-hackers@postgresql.org)
To make changes to your subscription:
http://www.postgresql.org/mailpref/pgadmin-hackers

Attachment

table_19_May_V9.patch

Re: [PATCH] Tables node (pgAdmin4)

From

Akshay Joshi

Date:

20 May 2016, 14:57:08

Thanks - Committed with minor changes.

On Thu, May 19, 2016 at 10:47 PM, Harshal Dhumal <harshal.dhumal@enterprisedb.com> wrote:

Hi,

PFA updated patch for table and all it's child nodes (Version 9). This patch does not depend on any of existing table node patch.

Major change in this patch: Unlike pgAdmin3 now in table create mode any constraint(s) created (but not saved) will listen to table column changes and adapt themselves accordingly.

For e.g.
In table create mode user adds column definition with name "col1" then adds constraint which includes column "col1". Now user changes column name to "col2" then constraint will listen to this change and adapt the column name from "col1" to "col2" in constraint definition. Also if column "col2" is removed then constraint will also remove the column "col2" from it's definition.

--
Harshal Dhumal
Software Engineer

EenterpriseDB

--
Sent via pgadmin-hackers mailing list (pgadmin-hackers@postgresql.org)
To make changes to your subscription:
http://www.postgresql.org/mailpref/pgadmin-hackers

Akshay Joshi

Principal Software Engineer

Phone: +91 20-3058-9517
Mobile: +91 976-788-8246

Re: [PATCH] Tables node (pgAdmin4)

From

Dave Page

Date:

20 May 2016, 21:31:59

I just started to take a look at the table dialogue and friends. Here are a few issues that we need to address - please take care of them:

1) Move columns to their own tab. Vertical scrolling is bad.

2) Similarly, move constraints to their own tab.

3) Ensure all labels only have a capital letter on the first word, except if following words are keywords or acronyms, e.g.

With default values?

Has OIDs?

4) s/System tabel?/System table?

5) Error messages on fields should not be shown unless the field loses focus and has an error (see Create Table)

6) The sections on the Properties view are not as they should be. As I've pointed out before, the "General" section should have a limited subset of information, e.g. name, oid, owner, tablespace, comment and "is system?" Other properties should be in other appropriate sections.

7) Variables grids should not be on the Security tab (as also mentioned previously).

8) Field labels that imply a question (e.g. usually those with a Yes/No switch for input) should end in a ? - e.g. "Deferrable?"

9) On the Trigger dialogue, "Fires" and following controls should move to a new tab.

10) On the MV dialogue, VACUUM settings should be on their own tab, as on the Table dialogue.

11) Privileges controls on the Properties lists should be in a "Security" group, not "General"

I think there are a couple of basic principles to follow here:

- Make properties lists and dialogues consistent with existing ones, from control grouping right down to spelling and case of labels.

- Dialogs should never need vertical scrolling by default (e.g. for a new object with no columns/constraints/whatever yet defined). If you need to scroll, then things should be moved to a new tab, grouped as appropriate.

Thanks.

On Fri, May 20, 2016 at 7:57 AM, Akshay Joshi <akshay.joshi@enterprisedb.com> wrote:

Thanks - Committed with minor changes.

On Thu, May 19, 2016 at 10:47 PM, Harshal Dhumal <harshal.dhumal@enterprisedb.com> wrote:
Hi,

PFA updated patch for table and all it's child nodes (Version 9). This patch does not depend on any of existing table node patch.

Major change in this patch: Unlike pgAdmin3 now in table create mode any constraint(s) created (but not saved) will listen to table column changes and adapt themselves accordingly.

For e.g.
In table create mode user adds column definition with name "col1" then adds constraint which includes column "col1". Now user changes column name to "col2" then constraint will listen to this change and adapt the column name from "col1" to "col2" in constraint definition. Also if column "col2" is removed then constraint will also remove the column "col2" from it's definition.

--
Harshal Dhumal
Software Engineer

EenterpriseDB

--
Sent via pgadmin-hackers mailing list (pgadmin-hackers@postgresql.org)
To make changes to your subscription:
http://www.postgresql.org/mailpref/pgadmin-hackers

--
Akshay Joshi
Principal Software Engineer

Phone: +91 20-3058-9517
Mobile: +91 976-788-8246

Dave Page
Blog: http://pgsnake.blogspot.com
Twitter: @pgsnake

EnterpriseDB UK: http://www.enterprisedb.com
The Enterprise PostgreSQL Company

Re: [PATCH] Tables node (pgAdmin4)

From

Ashesh Vashi

Date:

21 May 2016, 06:12:50

On Sat, May 21, 2016 at 12:01 AM, Dave Page <dpage@pgadmin.org> wrote:

Hi

I just started to take a look at the table dialogue and friends. Here are a few issues that we need to address - please take care of them:

1) Move columns to their own tab. Vertical scrolling is bad.

Should the 'inherit from table' part of columns tab?

2) Similarly, move constraints to their own tab.

3) Ensure all labels only have a capital letter on the first word, except if following words are keywords or acronyms, e.g.

With default values?
Has OIDs?

4) s/System tabel?/System table?

5) Error messages on fields should not be shown unless the field loses focus and has an error (see Create Table)

6) The sections on the Properties view are not as they should be. As I've pointed out before, the "General" section should have a limited subset of information, e.g. name, oid, owner, tablespace, comment and "is system?" Other properties should be in other appropriate sections.

7) Variables grids should not be on the Security tab (as also mentioned previously).

8) Field labels that imply a question (e.g. usually those with a Yes/No switch for input) should end in a ? - e.g. "Deferrable?"

9) On the Trigger dialogue, "Fires" and following controls should move to a new tab.

10) On the MV dialogue, VACUUM settings should be on their own tab, as on the Table dialogue.

11) Privileges controls on the Properties lists should be in a "Security" group, not "General"

I think there are a couple of basic principles to follow here:

- Make properties lists and dialogues consistent with existing ones, from control grouping right down to spelling and case of labels.

- Dialogs should never need vertical scrolling by default (e.g. for a new object with no columns/constraints/whatever yet defined). If you need to scroll, then things should be moved to a new tab, grouped as appropriate.

Thanks.

On Fri, May 20, 2016 at 7:57 AM, Akshay Joshi <akshay.joshi@enterprisedb.com> wrote:
Thanks - Committed with minor changes.

On Thu, May 19, 2016 at 10:47 PM, Harshal Dhumal <harshal.dhumal@enterprisedb.com> wrote:
Hi,

PFA updated patch for table and all it's child nodes (Version 9). This patch does not depend on any of existing table node patch.

Major change in this patch: Unlike pgAdmin3 now in table create mode any constraint(s) created (but not saved) will listen to table column changes and adapt themselves accordingly.

For e.g.
In table create mode user adds column definition with name "col1" then adds constraint which includes column "col1". Now user changes column name to "col2" then constraint will listen to this change and adapt the column name from "col1" to "col2" in constraint definition. Also if column "col2" is removed then constraint will also remove the column "col2" from it's definition.

--
Harshal Dhumal
Software Engineer

EenterpriseDB

--
Sent via pgadmin-hackers mailing list (pgadmin-hackers@postgresql.org)
To make changes to your subscription:
http://www.postgresql.org/mailpref/pgadmin-hackers

--
Akshay Joshi
Principal Software Engineer

Phone: +91 20-3058-9517
Mobile: +91 976-788-8246

--
Dave Page
Blog: http://pgsnake.blogspot.com
Twitter: @pgsnake

EnterpriseDB UK: http://www.enterprisedb.com
The Enterprise PostgreSQL Company

Re: [PATCH] Tables node (pgAdmin4)

From

Dave Page

Date:

21 May 2016, 12:15:32

I think that makes sense, yes.

Sent from my iPad

On 21 May 2016, at 04:12, Ashesh Vashi <ashesh.vashi@enterprisedb.com> wrote:

On Sat, May 21, 2016 at 12:01 AM, Dave Page <dpage@pgadmin.org> wrote:
Hi

I just started to take a look at the table dialogue and friends. Here are a few issues that we need to address - please take care of them:

1) Move columns to their own tab. Vertical scrolling is bad.
Should the 'inherit from table' part of columns tab?

2) Similarly, move constraints to their own tab.

3) Ensure all labels only have a capital letter on the first word, except if following words are keywords or acronyms, e.g.

With default values?
Has OIDs?

4) s/System tabel?/System table?

5) Error messages on fields should not be shown unless the field loses focus and has an error (see Create Table)

6) The sections on the Properties view are not as they should be. As I've pointed out before, the "General" section should have a limited subset of information, e.g. name, oid, owner, tablespace, comment and "is system?" Other properties should be in other appropriate sections.

7) Variables grids should not be on the Security tab (as also mentioned previously).

8) Field labels that imply a question (e.g. usually those with a Yes/No switch for input) should end in a ? - e.g. "Deferrable?"

9) On the Trigger dialogue, "Fires" and following controls should move to a new tab.

10) On the MV dialogue, VACUUM settings should be on their own tab, as on the Table dialogue.

11) Privileges controls on the Properties lists should be in a "Security" group, not "General"

I think there are a couple of basic principles to follow here:

- Make properties lists and dialogues consistent with existing ones, from control grouping right down to spelling and case of labels.

- Dialogs should never need vertical scrolling by default (e.g. for a new object with no columns/constraints/whatever yet defined). If you need to scroll, then things should be moved to a new tab, grouped as appropriate.

Thanks.

On Fri, May 20, 2016 at 7:57 AM, Akshay Joshi <akshay.joshi@enterprisedb.com> wrote:
Thanks - Committed with minor changes.

On Thu, May 19, 2016 at 10:47 PM, Harshal Dhumal <harshal.dhumal@enterprisedb.com> wrote:
Hi,

PFA updated patch for table and all it's child nodes (Version 9). This patch does not depend on any of existing table node patch.

Major change in this patch: Unlike pgAdmin3 now in table create mode any constraint(s) created (but not saved) will listen to table column changes and adapt themselves accordingly.

For e.g.
In table create mode user adds column definition with name "col1" then adds constraint which includes column "col1". Now user changes column name to "col2" then constraint will listen to this change and adapt the column name from "col1" to "col2" in constraint definition. Also if column "col2" is removed then constraint will also remove the column "col2" from it's definition.

--
Harshal Dhumal
Software Engineer

EenterpriseDB

--
Sent via pgadmin-hackers mailing list (pgadmin-hackers@postgresql.org)
To make changes to your subscription:
http://www.postgresql.org/mailpref/pgadmin-hackers

--
Akshay Joshi
Principal Software Engineer

Phone: +91 20-3058-9517
Mobile: +91 976-788-8246

--
Dave Page
Blog: http://pgsnake.blogspot.com
Twitter: @pgsnake

EnterpriseDB UK: http://www.enterprisedb.com
The Enterprise PostgreSQL Company

Re: [PATCH] Tables node (pgAdmin4)

From

Murtuza Zabuawala

Date:

23 May 2016, 16:06:30

Hi,

PFA patch, which will fixes below mentioned issues,

- Fixed all the review comments given by Dave on tables & its child nodes.

Additional enhancements

- In Index node, We have updated the way columns were added,

earlier it was using subnode control now we can insert/update

values in-place using DepsCell functionality

- In Type node, We have updated the way Composite types were added,

earlier it was using subnode control now we can insert/update

values in-place using DepsCell functionality

- In Constraints nodes, Updated error messages handling earlier it was

throwing error when we open create dialog and no input has been

provided by user.

Affected nodes by this patch:

Table
Column
Check constraint
Exclusion constraint
Foreign key
Primary key
Unique
Index
Trigger
Type
Materialized view

Regards,

Murtuza Zabuawala
EnterpriseDB: http://www.enterprisedb.com
The Enterprise PostgreSQL Company

On Sat, May 21, 2016 at 2:45 PM, Dave Page <dpage@pgadmin.org> wrote:

I think that makes sense, yes.

Sent from my iPad

On 21 May 2016, at 04:12, Ashesh Vashi <ashesh.vashi@enterprisedb.com> wrote:

On Sat, May 21, 2016 at 12:01 AM, Dave Page <dpage@pgadmin.org> wrote:
Hi

I just started to take a look at the table dialogue and friends. Here are a few issues that we need to address - please take care of them:

1) Move columns to their own tab. Vertical scrolling is bad.
Should the 'inherit from table' part of columns tab?

2) Similarly, move constraints to their own tab.

3) Ensure all labels only have a capital letter on the first word, except if following words are keywords or acronyms, e.g.

With default values?
Has OIDs?

4) s/System tabel?/System table?

5) Error messages on fields should not be shown unless the field loses focus and has an error (see Create Table)

6) The sections on the Properties view are not as they should be. As I've pointed out before, the "General" section should have a limited subset of information, e.g. name, oid, owner, tablespace, comment and "is system?" Other properties should be in other appropriate sections.

7) Variables grids should not be on the Security tab (as also mentioned previously).

8) Field labels that imply a question (e.g. usually those with a Yes/No switch for input) should end in a ? - e.g. "Deferrable?"

9) On the Trigger dialogue, "Fires" and following controls should move to a new tab.

10) On the MV dialogue, VACUUM settings should be on their own tab, as on the Table dialogue.

11) Privileges controls on the Properties lists should be in a "Security" group, not "General"

I think there are a couple of basic principles to follow here:

- Make properties lists and dialogues consistent with existing ones, from control grouping right down to spelling and case of labels.

- Dialogs should never need vertical scrolling by default (e.g. for a new object with no columns/constraints/whatever yet defined). If you need to scroll, then things should be moved to a new tab, grouped as appropriate.

Thanks.

On Fri, May 20, 2016 at 7:57 AM, Akshay Joshi <akshay.joshi@enterprisedb.com> wrote:
Thanks - Committed with minor changes.

On Thu, May 19, 2016 at 10:47 PM, Harshal Dhumal <harshal.dhumal@enterprisedb.com> wrote:
Hi,

PFA updated patch for table and all it's child nodes (Version 9). This patch does not depend on any of existing table node patch.

Major change in this patch: Unlike pgAdmin3 now in table create mode any constraint(s) created (but not saved) will listen to table column changes and adapt themselves accordingly.

For e.g.
In table create mode user adds column definition with name "col1" then adds constraint which includes column "col1". Now user changes column name to "col2" then constraint will listen to this change and adapt the column name from "col1" to "col2" in constraint definition. Also if column "col2" is removed then constraint will also remove the column "col2" from it's definition.

--
Harshal Dhumal
Software Engineer

EenterpriseDB

--
Sent via pgadmin-hackers mailing list (pgadmin-hackers@postgresql.org)
To make changes to your subscription:
http://www.postgresql.org/mailpref/pgadmin-hackers

--
Akshay Joshi
Principal Software Engineer

Phone: +91 20-3058-9517
Mobile: +91 976-788-8246

--
Dave Page
Blog: http://pgsnake.blogspot.com
Twitter: @pgsnake

EnterpriseDB UK: http://www.enterprisedb.com
The Enterprise PostgreSQL Company

Attachment

fixed_review_comments.patch

Re: [PATCH] Tables node (pgAdmin4)

From

Ashesh Vashi

Date:

24 May 2016, 21:09:52

On Mon, May 23, 2016 at 6:35 PM, Murtuza Zabuawala <murtuza.zabuawala@enterprisedb.com> wrote:

Hi,

PFA patch, which will fixes below mentioned issues,

Committed.

- Fixed all the review comments given by Dave on tables & its child nodes.

Can you please list down, what has not yet been taken care in the review comments?

Additional enhancements
- In Index node, We have updated the way columns were added,
earlier it was using subnode control now we can insert/update
values in-place using DepsCell functionality

- In Type node, We have updated the way Composite types were added,
earlier it was using subnode control now we can insert/update
values in-place using DepsCell functionality

- In Constraints nodes, Updated error messages handling earlier it was
throwing error when we open create dialog and no input has been
provided by user.

Affected nodes by this patch:

Table
Column
Check constraint
Exclusion constraint
Foreign key
Primary key
Unique
Index
Trigger
Type
Materialized view

Thanks & Regards,

Ashesh Vashi
EnterpriseDB INDIA: Enterprise PostgreSQL Company

http://www.linkedin.com/in/asheshvashi

--
Regards,
Murtuza Zabuawala
EnterpriseDB: http://www.enterprisedb.com
The Enterprise PostgreSQL Company

On Sat, May 21, 2016 at 2:45 PM, Dave Page <dpage@pgadmin.org> wrote:
I think that makes sense, yes.

Sent from my iPad

On 21 May 2016, at 04:12, Ashesh Vashi <ashesh.vashi@enterprisedb.com> wrote:

On Sat, May 21, 2016 at 12:01 AM, Dave Page <dpage@pgadmin.org> wrote:
Hi

I just started to take a look at the table dialogue and friends. Here are a few issues that we need to address - please take care of them:

1) Move columns to their own tab. Vertical scrolling is bad.
Should the 'inherit from table' part of columns tab?

2) Similarly, move constraints to their own tab.

3) Ensure all labels only have a capital letter on the first word, except if following words are keywords or acronyms, e.g.

With default values?
Has OIDs?

4) s/System tabel?/System table?

5) Error messages on fields should not be shown unless the field loses focus and has an error (see Create Table)

6) The sections on the Properties view are not as they should be. As I've pointed out before, the "General" section should have a limited subset of information, e.g. name, oid, owner, tablespace, comment and "is system?" Other properties should be in other appropriate sections.

7) Variables grids should not be on the Security tab (as also mentioned previously).

8) Field labels that imply a question (e.g. usually those with a Yes/No switch for input) should end in a ? - e.g. "Deferrable?"

9) On the Trigger dialogue, "Fires" and following controls should move to a new tab.

10) On the MV dialogue, VACUUM settings should be on their own tab, as on the Table dialogue.

11) Privileges controls on the Properties lists should be in a "Security" group, not "General"

I think there are a couple of basic principles to follow here:

- Make properties lists and dialogues consistent with existing ones, from control grouping right down to spelling and case of labels.

- Dialogs should never need vertical scrolling by default (e.g. for a new object with no columns/constraints/whatever yet defined). If you need to scroll, then things should be moved to a new tab, grouped as appropriate.

Thanks.

On Fri, May 20, 2016 at 7:57 AM, Akshay Joshi <akshay.joshi@enterprisedb.com> wrote:
Thanks - Committed with minor changes.

On Thu, May 19, 2016 at 10:47 PM, Harshal Dhumal <harshal.dhumal@enterprisedb.com> wrote:
Hi,

PFA updated patch for table and all it's child nodes (Version 9). This patch does not depend on any of existing table node patch.

Major change in this patch: Unlike pgAdmin3 now in table create mode any constraint(s) created (but not saved) will listen to table column changes and adapt themselves accordingly.

For e.g.
In table create mode user adds column definition with name "col1" then adds constraint which includes column "col1". Now user changes column name to "col2" then constraint will listen to this change and adapt the column name from "col1" to "col2" in constraint definition. Also if column "col2" is removed then constraint will also remove the column "col2" from it's definition.

--
Harshal Dhumal
Software Engineer

EenterpriseDB

--
Sent via pgadmin-hackers mailing list (pgadmin-hackers@postgresql.org)
To make changes to your subscription:
http://www.postgresql.org/mailpref/pgadmin-hackers

--
Akshay Joshi
Principal Software Engineer

Phone: +91 20-3058-9517
Mobile: +91 976-788-8246

--
Dave Page
Blog: http://pgsnake.blogspot.com
Twitter: @pgsnake

EnterpriseDB UK: http://www.enterprisedb.com
The Enterprise PostgreSQL Company

Re: [PATCH] Tables node (pgAdmin4)

From

Thom Brown

Date:

25 May 2016, 02:29:59

On 24 May 2016 at 19:09, Ashesh Vashi <ashesh.vashi@enterprisedb.com> wrote:

On Mon, May 23, 2016 at 6:35 PM, Murtuza Zabuawala <murtuza.zabuawala@enterprisedb.com> wrote:
Hi,

PFA patch, which will fixes below mentioned issues,
Committed.

In the Create Table dialog, on the Advanced tab, the "Of type" drop-down lists tables and composite types, but those are supposed to just be composite types.

Also, when using OF in CREATE TABLE, LIKE is no longer valid, so LIKE should be disabled when using OF. Also, there should probably be a way of setting options for the columns taken from the composite type. For example:

CREATE TYPE inventory AS (product_id bigint, product_name text, weight numeric);

CREATE TABLE stock OF inventory (
PRIMARY KEY (product_id),
weight WITH OPTIONS DEFAULT 0
);

There's currently no way of doing this (neither the primary key, nor the default value for any columns). It should probably automatically populate the columns from the composite type on the columns tab.

Also, could the generated SQL have an empty line between each statement?

Thanks

Thom

Re: [PATCH] Tables node (pgAdmin4)

From

Thom Brown

Date:

25 May 2016, 04:00:52

On 25 May 2016 at 00:29, Thom Brown <thom@linux.com> wrote:
> On 24 May 2016 at 19:09, Ashesh Vashi <ashesh.vashi@enterprisedb.com> wrote:
>>
>> On Mon, May 23, 2016 at 6:35 PM, Murtuza Zabuawala
>> <murtuza.zabuawala@enterprisedb.com> wrote:
>>>
>>> Hi,
>>>
>>> PFA patch, which will fixes below mentioned issues,
>>
>> Committed.
>
>
> In the Create Table dialog, on the Advanced tab, the "Of type" drop-down
> lists tables and composite types, but those are supposed to just be
> composite types.
>
> Also, when using OF in CREATE TABLE, LIKE is no longer valid, so LIKE should
> be disabled when using OF.  Also, there should probably be a way of setting
> options for the columns taken from the composite type.  For example:
>
> CREATE TYPE inventory AS (product_id bigint, product_name text, weight
> numeric);
>
> CREATE TABLE stock OF inventory (
>     PRIMARY KEY (product_id),
>     weight WITH OPTIONS DEFAULT 0
> );
>
> There's currently no way of doing this (neither the primary key, nor the
> default value for any columns).  It should probably automatically populate
> the columns from the composite type on the columns tab.
>
> Also, could the generated SQL have an empty line between each statement?

Another thing I've noticed is that, when adding columns, the "Is
primary key?" column is greyed out.  Why not just make those
modifiable in that view rather than having to go into the details for
each column?

When there's something that hasn't been set up correctly, like adding
variables for a column, but not actually selecting a variable, the SQL
pane, correctly, doesn't show an output, but the error message,
"Please provide input for variable." isn't enough to identify what
needs checking.  Could the relevant tab and field/row be
highlighted/coloured in red/bold?  This is more general, so doesn't
just apply to the create table dialog.

Thom

Re: [PATCH] Tables node (pgAdmin4)

From

Thom Brown

Date:

25 May 2016, 04:13:04

On 25 May 2016 at 02:00, Thom Brown <thom@linux.com> wrote:
> On 25 May 2016 at 00:29, Thom Brown <thom@linux.com> wrote:
>> On 24 May 2016 at 19:09, Ashesh Vashi <ashesh.vashi@enterprisedb.com> wrote:
>>>
>>> On Mon, May 23, 2016 at 6:35 PM, Murtuza Zabuawala
>>> <murtuza.zabuawala@enterprisedb.com> wrote:
>>>>
>>>> Hi,
>>>>
>>>> PFA patch, which will fixes below mentioned issues,
>>>
>>> Committed.
>>
>>
>> In the Create Table dialog, on the Advanced tab, the "Of type" drop-down
>> lists tables and composite types, but those are supposed to just be
>> composite types.
>>
>> Also, when using OF in CREATE TABLE, LIKE is no longer valid, so LIKE should
>> be disabled when using OF.  Also, there should probably be a way of setting
>> options for the columns taken from the composite type.  For example:
>>
>> CREATE TYPE inventory AS (product_id bigint, product_name text, weight
>> numeric);
>>
>> CREATE TABLE stock OF inventory (
>>     PRIMARY KEY (product_id),
>>     weight WITH OPTIONS DEFAULT 0
>> );
>>
>> There's currently no way of doing this (neither the primary key, nor the
>> default value for any columns).  It should probably automatically populate
>> the columns from the composite type on the columns tab.
>>
>> Also, could the generated SQL have an empty line between each statement?
>
> Another thing I've noticed is that, when adding columns, the "Is
> primary key?" column is greyed out.  Why not just make those
> modifiable in that view rather than having to go into the details for
> each column?
>
> When there's something that hasn't been set up correctly, like adding
> variables for a column, but not actually selecting a variable, the SQL
> pane, correctly, doesn't show an output, but the error message,
> "Please provide input for variable." isn't enough to identify what
> needs checking.  Could the relevant tab and field/row be
> highlighted/coloured in red/bold?  This is more general, so doesn't
> just apply to the create table dialog.

Last issue today:

When using "Of type", it's not valid to allow additional columns to be
added, so those should be prevented.

Thom

Re: [PATCH] Tables node (pgAdmin4)

From

Ashesh Vashi

Date:

25 May 2016, 06:23:33

Hi Thom,

Can you please create RM cases for the same, it will be easy to track those issues?

We're using "https://redmine.postgresql.org/projects/pgadmin4/" for the same.

Thanks & Regards,

Ashesh Vashi
EnterpriseDB INDIA: Enterprise PostgreSQL Company

http://www.linkedin.com/in/asheshvashi

On Wed, May 25, 2016 at 6:42 AM, Thom Brown <thom@linux.com> wrote:

On 25 May 2016 at 02:00, Thom Brown <thom@linux.com> wrote:
> On 25 May 2016 at 00:29, Thom Brown <thom@linux.com> wrote:
>> On 24 May 2016 at 19:09, Ashesh Vashi <ashesh.vashi@enterprisedb.com> wrote:
>>>
>>> On Mon, May 23, 2016 at 6:35 PM, Murtuza Zabuawala
>>> <murtuza.zabuawala@enterprisedb.com> wrote:
>>>>
>>>> Hi,
>>>>
>>>> PFA patch, which will fixes below mentioned issues,
>>>
>>> Committed.
>>
>>
>> In the Create Table dialog, on the Advanced tab, the "Of type" drop-down
>> lists tables and composite types, but those are supposed to just be
>> composite types.
>>
>> Also, when using OF in CREATE TABLE, LIKE is no longer valid, so LIKE should
>> be disabled when using OF. Also, there should probably be a way of setting
>> options for the columns taken from the composite type. For example:
>>
>> CREATE TYPE inventory AS (product_id bigint, product_name text, weight
>> numeric);
>>
>> CREATE TABLE stock OF inventory (
>> PRIMARY KEY (product_id),
>> weight WITH OPTIONS DEFAULT 0
>> );
>>
>> There's currently no way of doing this (neither the primary key, nor the
>> default value for any columns). It should probably automatically populate
>> the columns from the composite type on the columns tab.
>>
>> Also, could the generated SQL have an empty line between each statement?
>
> Another thing I've noticed is that, when adding columns, the "Is
> primary key?" column is greyed out. Why not just make those
> modifiable in that view rather than having to go into the details for
> each column?
>
> When there's something that hasn't been set up correctly, like adding
> variables for a column, but not actually selecting a variable, the SQL
> pane, correctly, doesn't show an output, but the error message,
> "Please provide input for variable." isn't enough to identify what
> needs checking. Could the relevant tab and field/row be
> highlighted/coloured in red/bold? This is more general, so doesn't
> just apply to the create table dialog.

Last issue today:

When using "Of type", it's not valid to allow additional columns to be
added, so those should be prevented.

Thom

Re: [PATCH] Tables node (pgAdmin4)

From

Thom Brown

Date:

25 May 2016, 19:00:39

Thanks. I've raised all of these in tickets 1231 to 1237.

Thom

On 25 May 2016 at 04:23, Ashesh Vashi <ashesh.vashi@enterprisedb.com> wrote:

Hi Thom,

Can you please create RM cases for the same, it will be easy to track those issues?
We're using "https://redmine.postgresql.org/projects/pgadmin4/" for the same.

--
Thanks & Regards,

Ashesh Vashi
EnterpriseDB INDIA: Enterprise PostgreSQL Company

http://www.linkedin.com/in/asheshvashi

On Wed, May 25, 2016 at 6:42 AM, Thom Brown <thom@linux.com> wrote:
On 25 May 2016 at 02:00, Thom Brown <thom@linux.com> wrote:
> On 25 May 2016 at 00:29, Thom Brown <thom@linux.com> wrote:
>> On 24 May 2016 at 19:09, Ashesh Vashi <ashesh.vashi@enterprisedb.com> wrote:
>>>
>>> On Mon, May 23, 2016 at 6:35 PM, Murtuza Zabuawala
>>> <murtuza.zabuawala@enterprisedb.com> wrote:
>>>>
>>>> Hi,
>>>>
>>>> PFA patch, which will fixes below mentioned issues,
>>>
>>> Committed.
>>
>>
>> In the Create Table dialog, on the Advanced tab, the "Of type" drop-down
>> lists tables and composite types, but those are supposed to just be
>> composite types.
>>
>> Also, when using OF in CREATE TABLE, LIKE is no longer valid, so LIKE should
>> be disabled when using OF. Also, there should probably be a way of setting
>> options for the columns taken from the composite type. For example:
>>
>> CREATE TYPE inventory AS (product_id bigint, product_name text, weight
>> numeric);
>>
>> CREATE TABLE stock OF inventory (
>> PRIMARY KEY (product_id),
>> weight WITH OPTIONS DEFAULT 0
>> );
>>
>> There's currently no way of doing this (neither the primary key, nor the
>> default value for any columns). It should probably automatically populate
>> the columns from the composite type on the columns tab.
>>
>> Also, could the generated SQL have an empty line between each statement?
>
> Another thing I've noticed is that, when adding columns, the "Is
> primary key?" column is greyed out. Why not just make those
> modifiable in that view rather than having to go into the details for
> each column?
>
> When there's something that hasn't been set up correctly, like adding
> variables for a column, but not actually selecting a variable, the SQL
> pane, correctly, doesn't show an output, but the error message,
> "Please provide input for variable." isn't enough to identify what
> needs checking. Could the relevant tab and field/row be
> highlighted/coloured in red/bold? This is more general, so doesn't
> just apply to the create table dialog.

Last issue today:

When using "Of type", it's not valid to allow additional columns to be
added, so those should be prevented.

Thom

Re: [PATCH] Tables node (pgAdmin4)

From

Ashesh Vashi

Date:

26 May 2016, 10:50:31

Thanks.

On May 25, 2016 21:01, "Thom Brown" <thom@linux.com> wrote:

Thanks. I've raised all of these in tickets 1231 to 1237.

Thom

On 25 May 2016 at 04:23, Ashesh Vashi <ashesh.vashi@enterprisedb.com> wrote:
Hi Thom,

Can you please create RM cases for the same, it will be easy to track those issues?
We're using "https://redmine.postgresql.org/projects/pgadmin4/" for the same.

--
Thanks & Regards,

Ashesh Vashi
EnterpriseDB INDIA: Enterprise PostgreSQL Company

http://www.linkedin.com/in/asheshvashi

On Wed, May 25, 2016 at 6:42 AM, Thom Brown <thom@linux.com> wrote:
On 25 May 2016 at 02:00, Thom Brown <thom@linux.com> wrote:
> On 25 May 2016 at 00:29, Thom Brown <thom@linux.com> wrote:
>> On 24 May 2016 at 19:09, Ashesh Vashi <ashesh.vashi@enterprisedb.com> wrote:
>>>
>>> On Mon, May 23, 2016 at 6:35 PM, Murtuza Zabuawala
>>> <murtuza.zabuawala@enterprisedb.com> wrote:
>>>>
>>>> Hi,
>>>>
>>>> PFA patch, which will fixes below mentioned issues,
>>>
>>> Committed.
>>
>>
>> In the Create Table dialog, on the Advanced tab, the "Of type" drop-down
>> lists tables and composite types, but those are supposed to just be
>> composite types.
>>
>> Also, when using OF in CREATE TABLE, LIKE is no longer valid, so LIKE should
>> be disabled when using OF. Also, there should probably be a way of setting
>> options for the columns taken from the composite type. For example:
>>
>> CREATE TYPE inventory AS (product_id bigint, product_name text, weight
>> numeric);
>>
>> CREATE TABLE stock OF inventory (
>> PRIMARY KEY (product_id),
>> weight WITH OPTIONS DEFAULT 0
>> );
>>
>> There's currently no way of doing this (neither the primary key, nor the
>> default value for any columns). It should probably automatically populate
>> the columns from the composite type on the columns tab.
>>
>> Also, could the generated SQL have an empty line between each statement?
>
> Another thing I've noticed is that, when adding columns, the "Is
> primary key?" column is greyed out. Why not just make those
> modifiable in that view rather than having to go into the details for
> each column?
>
> When there's something that hasn't been set up correctly, like adding
> variables for a column, but not actually selecting a variable, the SQL
> pane, correctly, doesn't show an output, but the error message,
> "Please provide input for variable." isn't enough to identify what
> needs checking. Could the relevant tab and field/row be
> highlighted/coloured in red/bold? This is more general, so doesn't
> just apply to the create table dialog.

Last issue today:

When using "Of type", it's not valid to allow additional columns to be
added, so those should be prevented.

Thom

Re: [PATCH] Tables node (pgAdmin4)

From

Murtuza Zabuawala

Date:

26 May 2016, 14:17:59

Hi,

PFA patch for RM#1231 & RM#1237.

Additionally I have shifted 'Advanced tab' after columns & constraint tab.

@Thom,

Reading "Of type" drop-down, We borrowed sql query from pgadmin3 to populate "Of type" combo box as given below.

I was not able to find a way to differentiate between table & composite type populating from below given query,

I'll put in todo list, may be someone from community can help in future.

SELECT t.oid,

quote_ident(n.nspname)||'.'||quote_ident(t.typname) AS typname

FROM pg_type t, pg_namespace n

WHERE t.typtype='c' AND t.typnamespace=n.oid

AND NOT (n.nspname like 'pg_%' OR n.nspname='information_schema')

ORDER BY typname;

Regards,

Murtuza

On 25-May-2016, at 9:34 pm, Ashesh Vashi <ashesh.vashi@enterprisedb.com> wrote:

Thanks.
On May 25, 2016 21:01, "Thom Brown" <thom@linux.com> wrote:
Thanks. I've raised all of these in tickets 1231 to 1237.

Thom

On 25 May 2016 at 04:23, Ashesh Vashi <ashesh.vashi@enterprisedb.com> wrote:
Hi Thom,

Can you please create RM cases for the same, it will be easy to track those issues?
We're using "https://redmine.postgresql.org/projects/pgadmin4/" for the same.

--
Thanks & Regards,

Ashesh Vashi
EnterpriseDB INDIA: Enterprise PostgreSQL Company

http://www.linkedin.com/in/asheshvashi

On Wed, May 25, 2016 at 6:42 AM, Thom Brown <thom@linux.com> wrote:
On 25 May 2016 at 02:00, Thom Brown <thom@linux.com> wrote:
> On 25 May 2016 at 00:29, Thom Brown <thom@linux.com> wrote:
>> On 24 May 2016 at 19:09, Ashesh Vashi <ashesh.vashi@enterprisedb.com> wrote:
>>>
>>> On Mon, May 23, 2016 at 6:35 PM, Murtuza Zabuawala
>>> <murtuza.zabuawala@enterprisedb.com> wrote:
>>>>
>>>> Hi,
>>>>
>>>> PFA patch, which will fixes below mentioned issues,
>>>
>>> Committed.
>>
>>
>> In the Create Table dialog, on the Advanced tab, the "Of type" drop-down
>> lists tables and composite types, but those are supposed to just be
>> composite types.
>>
>> Also, when using OF in CREATE TABLE, LIKE is no longer valid, so LIKE should
>> be disabled when using OF. Also, there should probably be a way of setting
>> options for the columns taken from the composite type. For example:
>>
>> CREATE TYPE inventory AS (product_id bigint, product_name text, weight
>> numeric);
>>
>> CREATE TABLE stock OF inventory (
>> PRIMARY KEY (product_id),
>> weight WITH OPTIONS DEFAULT 0
>> );
>>
>> There's currently no way of doing this (neither the primary key, nor the
>> default value for any columns). It should probably automatically populate
>> the columns from the composite type on the columns tab.
>>
>> Also, could the generated SQL have an empty line between each statement?
>
> Another thing I've noticed is that, when adding columns, the "Is
> primary key?" column is greyed out. Why not just make those
> modifiable in that view rather than having to go into the details for
> each column?
>
> When there's something that hasn't been set up correctly, like adding
> variables for a column, but not actually selecting a variable, the SQL
> pane, correctly, doesn't show an output, but the error message,
> "Please provide input for variable." isn't enough to identify what
> needs checking. Could the relevant tab and field/row be
> highlighted/coloured in red/bold? This is more general, so doesn't
> just apply to the create table dialog.

Last issue today:

When using "Of type", it's not valid to allow additional columns to be
added, so those should be prevented.

Thom

Attachment

RM_1231_1237.patch

Re: [PATCH] Tables node (pgAdmin4)

From

Thom Brown

Date:

26 May 2016, 14:18:13

On 26 May 2016 at 11:20, Murtuza Zabuawala <murtuza.zabuawala@enterprisedb.com> wrote:

Hi,

PFA patch for RM#1231 & RM#1237.

Additionally I have shifted 'Advanced tab' after columns & constraint tab.

@Thom,

Reading "Of type" drop-down, We borrowed sql query from pgadmin3 to populate "Of type" combo box as given below.
I was not able to find a way to differentiate between table & composite type populating from below given query,
I'll put in todo list, may be someone from community can help in future.

SELECT t.oid,
quote_ident(n.nspname)||'.'||quote_ident(t.typname) AS typname
FROM pg_type t, pg_namespace n
WHERE t.typtype='c' AND t.typnamespace=n.oid
AND NOT (n.nspname like 'pg_%' OR n.nspname='information_schema')
ORDER BY typname;

This should work:

SELECT c.oid,
quote_ident(n.nspname)||'.'||quote_ident(c.relname) AS typname
FROM pg_namespace n, pg_class c
WHERE c.relkind = 'c' AND c.relnamespace=n.oid

AND NOT (n.nspname like 'pg_%' OR n.nspname='information_schema')
ORDER BY typname;

Although, to avoid confusion, the "typname" alias should probably just be "relname".

Thom

Re: [PATCH] Tables node (pgAdmin4)

From

Murtuza Zabuawala

Date:

26 May 2016, 14:18:25

Hi,

PFA updated patch which will also include new query given by Thom for "Of type" drop-down.

Regards,

Murtuza

Regards,

Murtuza Zabuawala
EnterpriseDB: http://www.enterprisedb.com
The Enterprise PostgreSQL Company

On Thu, May 26, 2016 at 4:04 PM, Thom Brown <thom@linux.com> wrote:

On 26 May 2016 at 11:20, Murtuza Zabuawala <murtuza.zabuawala@enterprisedb.com> wrote:
Hi,

PFA patch for RM#1231 & RM#1237.

Additionally I have shifted 'Advanced tab' after columns & constraint tab.

@Thom,

Reading "Of type" drop-down, We borrowed sql query from pgadmin3 to populate "Of type" combo box as given below.
I was not able to find a way to differentiate between table & composite type populating from below given query,
I'll put in todo list, may be someone from community can help in future.

SELECT t.oid,
quote_ident(n.nspname)||'.'||quote_ident(t.typname) AS typname
FROM pg_type t, pg_namespace n
WHERE t.typtype='c' AND t.typnamespace=n.oid
AND NOT (n.nspname like 'pg_%' OR n.nspname='information_schema')
ORDER BY typname;

This should work:

SELECT c.oid,
quote_ident(n.nspname)||'.'||quote_ident(c.relname) AS typname
FROM pg_namespace n, pg_class c
WHERE c.relkind = 'c' AND c.relnamespace=n.oid
AND NOT (n.nspname like 'pg_%' OR n.nspname='information_schema')
ORDER BY typname;

Although, to avoid confusion, the "typname" alias should probably just be "relname".

Thom

Attachment

RM_1231_1237.patch

Re: [PATCH] Tables node (pgAdmin4)

From

Ashesh Vashi

Date:

31 May 2016, 11:49:05

Committed - after rebased the patch.

Thanks & Regards,

Ashesh Vashi
EnterpriseDB INDIA: Enterprise PostgreSQL Company

http://www.linkedin.com/in/asheshvashi

On Thu, May 26, 2016 at 4:41 PM, Murtuza Zabuawala <murtuza.zabuawala@enterprisedb.com> wrote:

Hi,

PFA updated patch which will also include new query given by Thom for "Of type" drop-down.

Regards,
Murtuza

--
Regards,
Murtuza Zabuawala
EnterpriseDB: http://www.enterprisedb.com
The Enterprise PostgreSQL Company

On Thu, May 26, 2016 at 4:04 PM, Thom Brown <thom@linux.com> wrote:
On 26 May 2016 at 11:20, Murtuza Zabuawala <murtuza.zabuawala@enterprisedb.com> wrote:
Hi,

PFA patch for RM#1231 & RM#1237.

Additionally I have shifted 'Advanced tab' after columns & constraint tab.

@Thom,

Reading "Of type" drop-down, We borrowed sql query from pgadmin3 to populate "Of type" combo box as given below.
I was not able to find a way to differentiate between table & composite type populating from below given query,
I'll put in todo list, may be someone from community can help in future.

SELECT t.oid,
quote_ident(n.nspname)||'.'||quote_ident(t.typname) AS typname
FROM pg_type t, pg_namespace n
WHERE t.typtype='c' AND t.typnamespace=n.oid
AND NOT (n.nspname like 'pg_%' OR n.nspname='information_schema')
ORDER BY typname;

This should work:

SELECT c.oid,
quote_ident(n.nspname)||'.'||quote_ident(c.relname) AS typname
FROM pg_namespace n, pg_class c
WHERE c.relkind = 'c' AND c.relnamespace=n.oid
AND NOT (n.nspname like 'pg_%' OR n.nspname='information_schema')
ORDER BY typname;

Although, to avoid confusion, the "typname" alias should probably just be "relname".

Thom
