Hello,

I have following queries related to staticfiles:

• Why do we have /media-archives/... URL for CSS files? [https://github.com/postgres/pgarchives/blob/master/django/archives/mailarchives/templates/base.html#L18] Such folder is not present in the project. We have a folder named media which contains all static files. Can I change all /media-archives/ to /media/ ? Also the css_map that dynamic_css() method is using and in the css files for specifying path to images, contain /media/ and not /media-archives/.

• What is the use case of that dynamic_css() method?

• CSS and images will reflect on the HTML pages when I set STATIC_URL = "/media/" and change all media-archives to media. Also I need to add 'django.contrib.staticfiles' in the INSTALLED_APPS.

• In the main.css also many things are missing.
  I have attached the main.css present in the GitHub and main.css that actual pgarchives is using. Why do we have such differences in the code?

Because it runs on the same hostname as www.postgresql.org, and otherwise there would be a potential conflict. The folder /media/ is in the filesystem, and should be served up as /media-static/ on http.

We don't use staticfiles.

What do you mean "present in the github" and the one that's in pgarchives? Where is it on github and where do you see it in pgarchives?

Because it runs on the same hostname as www.postgresql.org, and otherwise there would be a potential conflict. The folder /media/ is in the filesystem, and should be served up as /media-static/ on http.

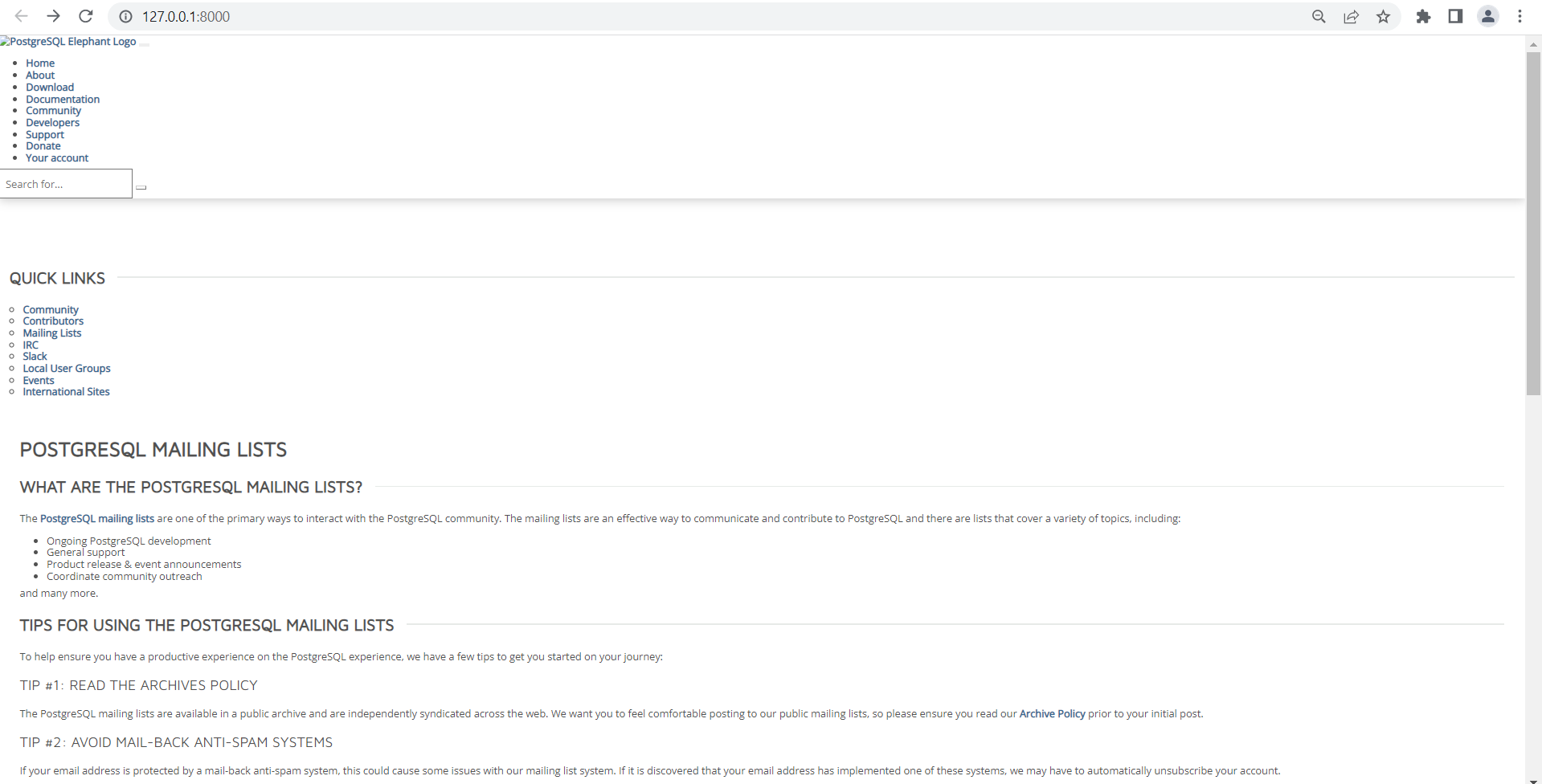

What am I supposed to do to resolve 404 I am getting for these urls?

What do you mean "present in the github" and the one that's in pgarchives? Where is it on github and where do you see it in pgarchives?



main.css file

Present in the pgarchives github repository: https://github.com/postgres/pgarchives/blob/master/django/media/css/main.css

The CSS that is being loaded for this page: https://www.postgresql.org/list/ (actual CSS that pgarchives using) I compared this by inspecting components in the browser.

As I said, you need to make the folder /media/ be served up as /media-static/. This is configuration in your webserver.

Um. There is no reference from https://www.postgresql.org/list/ to main.css in media-archives that I can see?

On Wed, 15 Jun 2022 at 02:52, Magnus Hagander <magnus@hagander.net> wrote:

As I said, you need to make the folder /media/ be served up as /media-static/. This is configuration in your webserver.



Could you please help me to do this? Like where and what I need to change.

Um. There is no reference from https://www.postgresql.org/list/ to main.css in media-archives that I can see?

Yeah, with the help of /dyncss/ the base.css = (main.css+normalize.css) of pgweb gets loaded after visiting /list/.
Now I am just confused about what exactly happens when someone opens  https://www.postgresql.org/list/ in the browser? How is HTML loading? If it is using CSS files of pgweb then why do we have CSS files in the /media/css/ of pgarchives :(

That depends on what webserver you're using. For example, in uwsgi you'd add something like:

static-map=/media-archives=/some/where/pgarchives/django/media

For nginx, it'd be something like:

        location /media-archives/ {
                alias /some/where/pgarchives/django/media/;
        }

Oh. Yes, anything outside of /list/ is loaded from pgweb. The dyncss is one of them. And yes, this is kind of a hacky and terrible way, but that's how it is right now. Certain parts of them have to be kept in sync.

We need them separately because the same pgarchives code is also run standalone, for our private archives. And in that scenario, there is no pgweb involved.

On Wed, 15 Jun 2022 at 22:43, Magnus Hagander <magnus@hagander.net> wrote:

That depends on what webserver you're using. For example, in uwsgi you'd add something like:

static-map=/media-archives=/some/where/pgarchives/django/media

For nginx, it'd be something like:

        location /media-archives/ {
                alias /some/where/pgarchives/django/media/;
        }

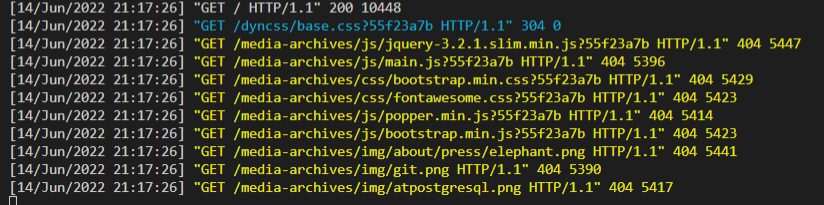

I tried this, but still, it is showing 404.
I created a .ini file and added the following values. and instead of running the server using runserver command I am using uwsgi.

[uwsgi]

http = localhost:8000

wsgi-file = archives/wsgi.py

static-map = /media-archives=/pgarchives/django/media

Am I missing anything here?

Oh. Yes, anything outside of /list/ is loaded from pgweb. The dyncss is one of them. And yes, this is kind of a hacky and terrible way, but that's how it is right now. Certain parts of them have to be kept in sync.

We need them separately because the same pgarchives code is also run standalone, for our private archives. And in that scenario, there is no pgweb involved.

Okay, so let's say if I want to make some changes in https://www.postgresql.org/list/, https://www.postgresql.org/list/pgsql-admin/, https://www.postgresql.org/list/pgsql-admin/2022-06/ etc. In which file should I make changes? main.css of pgweb or pgarchives or both (since pgarchives can also run standalone)?
