Need help debugging slow logical replication - Mailing list pgsql-general

Hi there,

I am using PG 14.14 on both primary and secondary DB on AWS, setup
using a logical replication, I'm having trouble with huge replication
lag.

My setup is as follows:

P1 - physical - P1-R
  | (logical)
P2 - physical - P2-R


The lag between P1 & P1-R , P2 & P2-R are both minimal , less than
10seconds , but I'm seeing several hours of lag between P1 & P2  .We
currently have 1 pub/sub that covers about 100 tables.

Here is the output from P1 showing there is a Lag of at least 80GB
(keep growing)

> SELECT now() AS CURRENT_TIME,
       slot_name,
       active,
       active_pid,confirmed_flush_lsn,
       pg_size_pretty(pg_wal_lsn_diff(pg_current_wal_lsn(),
confirmed_flush_lsn)) AS diff_size,
       pg_wal_lsn_diff(pg_current_wal_lsn(), confirmed_flush_lsn) AS diff_bytes
FROM pg_replication_slots
WHERE slot_type = 'logical';
-[ RECORD 1 ]-------+---------------------------
current_time        | 2023-02-07 23:26:00.733+00
slot_name           | upgrade
active              | t
active_pid          | 5180
confirmed_flush_lsn | 26B09/8C08C610
diff_size           | 81 GB
diff_bytes          | 86573472240

Here is what pg_stat_replication shows: note that the write_lag is
very high: we previously had to set wal_sender_timeout to 0, otherwise
the logical replication work keep exiting and fail.

> select * from pg_stat_replication;
-[ RECORD 1 ]----+------------------------------
pid              | xxx
usesysid         | xxx
usename          | dev
application_name | upgrade_target
client_addr      | 10.xxx
client_hostname  |
client_port      | 27404
backend_start    | 2023-02-07 23:02:39.228572+00
backend_xmin     | 2909692747
state            | catchup
sent_lsn         | 26B09/8C08C610
write_lsn        | 26B09/840514C0
flush_lsn        | 26B09/840514C0
replay_lsn       | 26B09/840514C0
write_lag        | 00:07:03.60362
flush_lag        | 00:07:03.60362
replay_lag       | 00:07:03.60362
sync_priority    | 0
sync_state       | async
reply_time       | 2023-02-07 23:22:08.245066+00

So, the problem seems to be like P2 takes a very long time to apply a

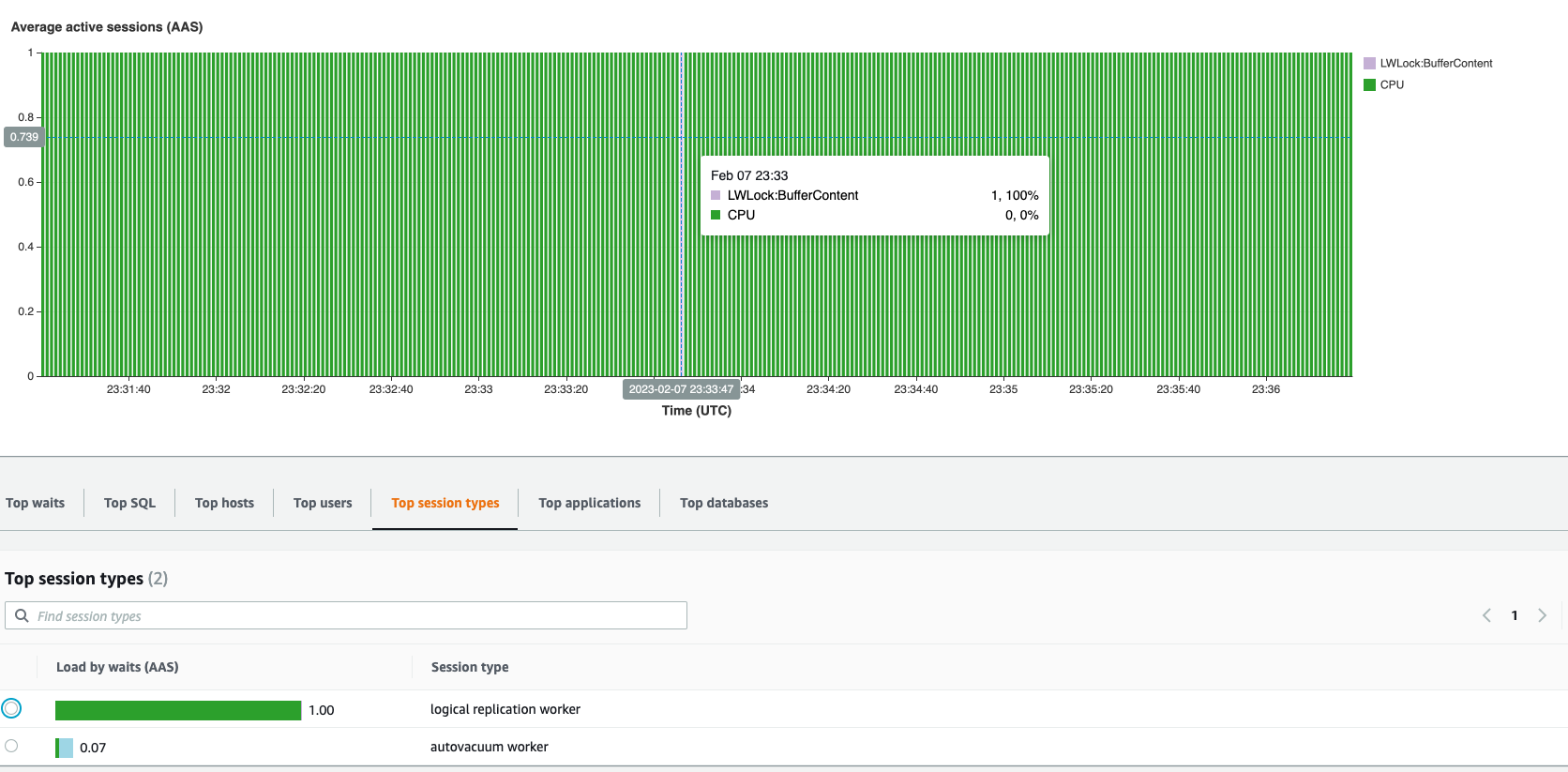

chunk,  Mow, my question is why?  From AWS performance insight, it
looks like there is only 1 process running on P2, that is 100% blocked
by CPU. I don't really understand why it is being blocked by the CPU,
and any help in further debugging is much appreciated.

Cheers.
