Thread: DETAIL: pg_rewind: servers diverged at WAL location 0/9000000 on timeline 1

Failover steps:

We stopped the primary server pg service and repmgrd automatically did the failover to standby and made standby as the new primary.

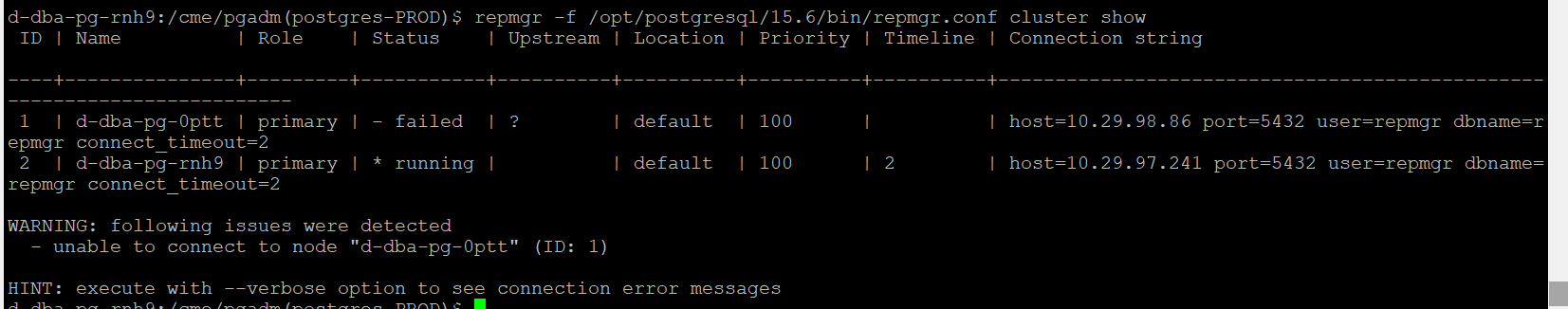

See the below status after failover




Failback steps;

1. We executed a checkpoint on the new primary( originally standby ).
 2. We ran the below node rejoin command with --dry-run

repmgr node rejoin -f /opt/postgresql/15.6/bin/repmgr.conf -d 'host=10.29.97.241 port=5432 user=repmgr dbname=repmgr' --force-rewind --config-files=postgresql.conf,postgresql.local.conf,pg_hba.conf -v --dry-run ///try to check if original_primary is eligible to rejoin


NOTICE: rejoin target is node "d-dba-pg-rnh9" (ID: 2)
INFO: replication connection to the rejoin target node was successful
INFO: local and rejoin target system identifiers match
DETAIL: system identifier is 7360952088605465701
NOTICE: pg_rewind execution required for this node to attach to rejoin target node 2
DETAIL: rejoin target server's timeline 2 forked off current database system timeline 1 before current recovery point 0/9000028
INFO: prerequisites for using pg_rewind are met
INFO: file "postgresql.conf" would be copied to "/tmp/repmgr-config-archive-d-dba-pg-0ptt/postgresql.conf"
WARNING: specified file "/pgresdata101/data/postgresql.local.conf" not found, skipping
INFO: file "pg_hba.conf" would be copied to "/tmp/repmgr-config-archive-d-dba-pg-0ptt/pg_hba.conf"
INFO: pg_rewind would now be executed
DETAIL: pg_rewind command is:
  /opt/postgresql/pg/bin/pg_rewind -D '/pgresdata101/data' --source-server='host=10.29.97.241 port=5432 user=repmgr dbname=repmgr connect_timeout=2'
INFO: prerequisites for executing NODE REJOIN are met

3. executed node rejoin command

repmgr node rejoin -f /opt/postgresql/15.6/bin/repmgr.conf -d 'host=10.29.97.241 port=5432 user=repmgr dbname=repmgr' --force-rewind --config-files=postgresql.conf,postgresql.local.conf,pg_hba.conf -v
NOTICE: using provided configuration file "/opt/postgresql/15.6/bin/repmgr.conf"
DEBUG: server version number is: 150000
DEBUG: set_config():
  SET synchronous_commit TO 'local'
DEBUG: get_primary_node_id():
SELECT node_id                   FROM repmgr.nodes     WHERE type = 'primary'    AND active IS TRUE
DEBUG: get_node_record():
  SELECT n.node_id, n.type, n.upstream_node_id, n.node_name,  n.conninfo, n.repluser, n.slot_name, n.location, n.priority, n.active, n.config_file, '' AS upstream_node_name, NULL AS attached   FROM repmgr.nodes n  WHERE n.node_id = 2
NOTICE: rejoin target is node "d-dba-pg-rnh9" (ID: 2)
DEBUG: connecting to: "user=repmgr connect_timeout=2 dbname=repmgr host=10.29.97.241 port=5432 fallback_application_name=repmgr options=-csearch_path="
DEBUG: set_config():
  SET synchronous_commit TO 'local'
DEBUG: get_recovery_type(): SELECT pg_catalog.pg_is_in_recovery()
DEBUG: get_node_record():
  SELECT n.node_id, n.type, n.upstream_node_id, n.node_name,  n.conninfo, n.repluser, n.slot_name, n.location, n.priority, n.active, n.config_file, '' AS upstream_node_name, NULL AS attached   FROM repmgr.nodes n  WHERE n.node_id = 1
DEBUG: local timeline: 1; rejoin target timeline: 2
DEBUG: get_timeline_history():
TIMELINE_HISTORY 2
DEBUG: local tli: 1; local_xlogpos: 0/9000028; follow_target_history->tli: 1; follow_target_history->end: 0/9000000
NOTICE: pg_rewind execution required for this node to attach to rejoin target node 2
DETAIL: rejoin target server's timeline 2 forked off current database system timeline 1 before current recovery point 0/9000028
DEBUG: guc_set():
SELECT true FROM pg_catalog.pg_settings  WHERE name = 'full_page_writes' AND setting = 'off'
DEBUG: guc_set():
SELECT true FROM pg_catalog.pg_settings  WHERE name = 'wal_log_hints' AND setting = 'on'
INFO: prerequisites for using pg_rewind are met
DEBUG: using archive directory "/tmp/repmgr-config-archive-d-dba-pg-0ptt"
DEBUG: copying "postgresql.conf" to "/tmp/repmgr-config-archive-d-dba-pg-0ptt/postgresql.conf"
WARNING: specified file "/pgresdata101/data/postgresql.local.conf" not found, skipping
DEBUG: copying "pg_hba.conf" to "/tmp/repmgr-config-archive-d-dba-pg-0ptt/pg_hba.conf"
INFO: 2 files copied to "/tmp/repmgr-config-archive-d-dba-pg-0ptt"
NOTICE: executing pg_rewind
DETAIL: pg_rewind command is "/opt/postgresql/pg/bin/pg_rewind -D '/pgresdata101/data' --source-server='host=10.29.97.241 port=5432 user=repmgr dbname=repmgr connect_timeout=2'"
DEBUG: executing:
  /opt/postgresql/pg/bin/pg_rewind -D '/pgresdata101/data' --source-server='host=10.29.97.241 port=5432 user=repmgr dbname=repmgr connect_timeout=2' 2>/tmp/repmgr_command.wgVGPS
DEBUG: result of command was 1 (256)
DEBUG: local_command(): output returned was:
pg_rewind: servers diverged at WAL location 0/9000000 on timeline 1
pg_rewind: error: could not open file "/pgresdata101/data/pg_wal/000000010000000000000008": No such file or directory
pg_rewind: error: could not find previous WAL record at 0/802B668

ERROR: pg_rewind execution failed
DETAIL: pg_rewind: servers diverged at WAL location 0/9000000 on timeline 1
pg_rewind: error: could not open file "/pgresdata101/data/pg_wal/000000010000000000000008": No such file or directory
pg_rewind: error: could not find previous WAL record at 0/802B668
