Thread: Building with wx2.9 on Mac

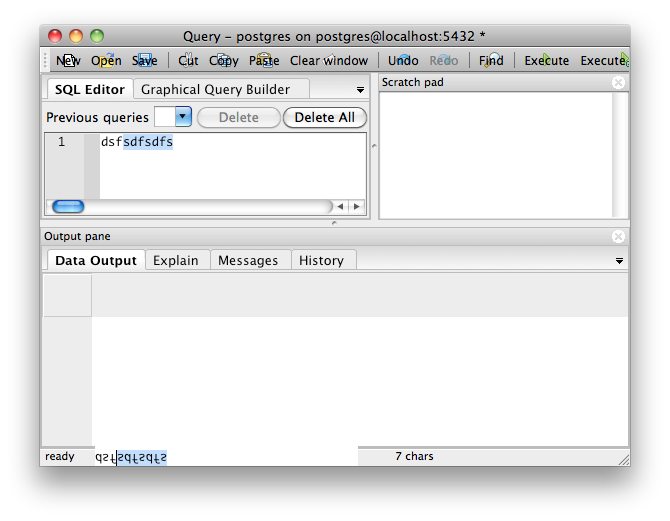

Hi Peter, It seems that the wxWidgets guys have fixed the issue with 2.9 on Mac, so I was able to try out a build today. Attached is the patch for your review. Aside from an issue with the font selector dialog (which seems to work OK now, thus the workaround which is broken on 2.9 anyway isn't required), the main issue I see is this: ./dlg/dlgDatabase.cpp: In member function ‘bool dlgDatabase::executeDDLSql(const wxString&)’: ./dlg/dlgDatabase.cpp:425: error: request for member ‘GetClientData’ is ambiguous /usr/local/include/wx-2.9/wx/ctrlsub.h:297: error: candidates are: void* wxItemContainer::GetClientData(unsigned int) const /usr/local/include/wx-2.9/wx/event.h:3204: error: void* wxEvtHandler::GetClientData() const It's easily fixed (albeit somewhat ugly) as can be seen in the patch - but I'm somewhat baffled about why the compiler thinks the two functions listed are both candidates, given that one takes an argument and the other doesn't. Any ideas? Other problems seen so far: - The toolbars have button labels displayed through them for some reason (see the attached screenshot). - Highlighting text in the STC has a weird effect on lower parts of the sae window (see the attached screenshot). - The wxDIALOG_MODAL flag seems to be gone. -- Dave Page Blog: http://pgsnake.blogspot.com Twitter: @pgsnake EnterpriseDB UK: http://www.enterprisedb.com The Enterprise PostgreSQL Company
Attachment
On 23 February 2011 23:51, Dave Page <dpage@pgadmin.org> wrote: > It seems that the wxWidgets guys have fixed the issue with 2.9 on Mac, > so I was able to try out a build today. Attached is the patch for your > review. Aside from an issue with the font selector dialog (which seems > to work OK now, thus the workaround which is broken on 2.9 anyway > isn't required), the main issue I see is this: Good. How many of the remaining 2.9 bugs that I reported were you able to reproduce on the Cocoa build? Did you see: * Any distortion of AUI elements, other than the distortion visible in toolbar.png . * Table editor segfaulting when text and serial datums are edited, but not when integer and numeric datums are edited. * Splash screen not displaying. My suspicion is that you won't see most or all of these bugs, because they specifically relate to wxGTK-2.9. > ./dlg/dlgDatabase.cpp: In member function ‘bool > dlgDatabase::executeDDLSql(const wxString&)’: > ./dlg/dlgDatabase.cpp:425: error: request for member ‘GetClientData’ > is ambiguous > /usr/local/include/wx-2.9/wx/ctrlsub.h:297: error: candidates are: > void* wxItemContainer::GetClientData(unsigned int) const > /usr/local/include/wx-2.9/wx/event.h:3204: error: > void* wxEvtHandler::GetClientData() const > > It's easily fixed (albeit somewhat ugly) as can be seen in the patch - > but I'm somewhat baffled about why the compiler thinks the two > functions listed are both candidates, given that one takes an argument > and the other doesn't. Any ideas? Yeah, that's fairly ugly. The issue you're experiencing doesn't make much sense to me. I've done an SVN update, and am at a commit 20 minutes before you sent your e-mail. Since I can still build this fine against wxGTK-2.9, it stands to reason it's a bug in wxWidgets, perhaps down to platform #ifdefs. I would not commit the patch, but report the bug. I note that this occurs with wxComboBoxs. I don't have time to look at the platform specific implementation in detail right now, but I suspect the dastardly diamond problem (Do other people call it dastardly or is that just me? I can't remember) has occurred, what with the extensive use of multiple inheritance. Take a look here: http://en.wikipedia.org/wiki/Virtual_inheritance > - The toolbars have button labels displayed through them for some > reason (see the attached screenshot). This may sound silly, but are you sure that just isn't how tooltips are supposed to be displayed with Cocoa? The icons are faded/inactive at the same time as their tooltips. It looks deliberate. If so, maybe you should use an #ifdef to customise the appearance of the toolbar tooltips on Cocoa. > - Highlighting text in the STC has a weird effect on lower parts of > the sae window (see the attached screenshot). Looks like another upstream WX bug. > - The wxDIALOG_MODAL flag seems to be gone. This: http://trac.wxwidgets.org/ticket/6601 indicates that that flag is obsolete, and it's 7 years old. Does the absence of the flag have any noticeable behavioural effect? I doubt that it does. -- Regards, Peter Geoghegan
You have pgAdmin compiling (though still not linking) with clang on your laptop, right? I suggest you use that to get a non-crappy error message. -- Regards, Peter Geoghegan
The fact that GCC produces an error that's just as bad as I thought it would be when I called bat.eat() as in the sample code in the wikipedia article makes me more confident that I'm right: -*- mode: compilation; default-directory: "/home/peter/cpp_tests/" -*- Compilation started at Thu Feb 24 03:07:35 c++ diamond.cpp diamond.cpp: In function ‘int main()’: diamond.cpp:26:7: error: request for member ‘eat’ is ambiguous diamond.cpp:4:16: error: candidates are: virtual void Animal::eat() diamond.cpp:4:16: error: virtual void Animal::eat() Compilation exited abnormally with code 1 at Thu Feb 24 03:07:36 -- Regards, Peter Geoghegan
On Thu, Feb 24, 2011 at 2:52 AM, Peter Geoghegan <peter.geoghegan86@gmail.com> wrote: > On 23 February 2011 23:51, Dave Page <dpage@pgadmin.org> wrote: >> It seems that the wxWidgets guys have fixed the issue with 2.9 on Mac, >> so I was able to try out a build today. Attached is the patch for your >> review. Aside from an issue with the font selector dialog (which seems >> to work OK now, thus the workaround which is broken on 2.9 anyway >> isn't required), the main issue I see is this: > > Good. How many of the remaining 2.9 bugs that I reported were you able > to reproduce on the Cocoa build? Did you see: > > * Any distortion of AUI elements, other than the distortion visible in > toolbar.png . No. > * Table editor segfaulting when text and serial datums are edited, but > not when integer and numeric datums are edited. I just realised what's probably causing that - we use our own version of wxGridCellTextEditor, which uses the STC instead of a rich text box to avoid some bugs. Because we haven't implemented our own version of EndEdit() yet, it's probably assuming the edit control is the original type in the default code. > * Splash screen not displaying. That's working fine. > My suspicion is that you won't see most or all of these bugs, because > they specifically relate to wxGTK-2.9. > > >> ./dlg/dlgDatabase.cpp: In member function ‘bool >> dlgDatabase::executeDDLSql(const wxString&)’: >> ./dlg/dlgDatabase.cpp:425: error: request for member ‘GetClientData’ >> is ambiguous >> /usr/local/include/wx-2.9/wx/ctrlsub.h:297: error: candidates are: >> void* wxItemContainer::GetClientData(unsigned int) const >> /usr/local/include/wx-2.9/wx/event.h:3204: error: >> void* wxEvtHandler::GetClientData() const >> >> It's easily fixed (albeit somewhat ugly) as can be seen in the patch - >> but I'm somewhat baffled about why the compiler thinks the two >> functions listed are both candidates, given that one takes an argument >> and the other doesn't. Any ideas? > > Yeah, that's fairly ugly. The issue you're experiencing doesn't make > much sense to me. I've done an SVN update, and am at a commit 20 > minutes before you sent your e-mail. Since I can still build this fine > against wxGTK-2.9, it stands to reason it's a bug in wxWidgets, > perhaps down to platform #ifdefs. I would not commit the patch, but > report the bug. > > I note that this occurs with wxComboBoxs. I don't have time to look at > the platform specific implementation in detail right now, but I > suspect the dastardly diamond problem (Do other people call it > dastardly or is that just me? I can't remember) has occurred, what > with the extensive use of multiple inheritance. Take a look here: > > http://en.wikipedia.org/wiki/Virtual_inheritance Will do. I'm actually OOO for the next few days, so I'll try to look in the evenings. >> - The toolbars have button labels displayed through them for some >> reason (see the attached screenshot). > > This may sound silly, but are you sure that just isn't how tooltips > are supposed to be displayed with Cocoa? The icons are faded/inactive > at the same time as their tooltips. It looks deliberate. If so, maybe > you should use an #ifdef to customise the appearance of the toolbar > tooltips on Cocoa. I've never seen that effect in any other apps that I can recall. Plus the toolbars do have a text style to enable/disable labels, which is off by default. >> - Highlighting text in the STC has a weird effect on lower parts of >> the sae window (see the attached screenshot). > > Looks like another upstream WX bug. Yeah, that was my thought. >> - The wxDIALOG_MODAL flag seems to be gone. > > This: > > http://trac.wxwidgets.org/ticket/6601 > > indicates that that flag is obsolete, and it's 7 years old. Does the > absence of the flag have any noticeable behavioural effect? I doubt > that it does. Ahh, ok. Didn't get as far as searching for that yet - thanks! -- Dave Page Blog: http://pgsnake.blogspot.com Twitter: @pgsnake EnterpriseDB UK: http://www.enterprisedb.com The Enterprise PostgreSQL Company
On Thu, Feb 24, 2011 at 2:56 AM, Peter Geoghegan <peter.geoghegan86@gmail.com> wrote: > You have pgAdmin compiling (though still not linking) with clang on > your laptop, right? I suggest you use that to get a non-crappy error > message. Oh, good idea. I'll do that. -- Dave Page Blog: http://pgsnake.blogspot.com Twitter: @pgsnake EnterpriseDB UK: http://www.enterprisedb.com The Enterprise PostgreSQL Company
On Thu, Feb 24, 2011 at 8:36 AM, Dave Page <dpage@pgadmin.org> wrote: > On Thu, Feb 24, 2011 at 2:56 AM, Peter Geoghegan > <peter.geoghegan86@gmail.com> wrote: >> You have pgAdmin compiling (though still not linking) with clang on >> your laptop, right? I suggest you use that to get a non-crappy error >> message. > > Oh, good idea. I'll do that. Clang compiles it just fine. -- Dave Page Blog: http://pgsnake.blogspot.com Twitter: @pgsnake EnterpriseDB UK: http://www.enterprisedb.com The Enterprise PostgreSQL Company
On 24 February 2011 09:13, Dave Page <dpage@pgadmin.org> wrote: > Clang compiles it just fine. So you still see the ambiguous overload error on GCC, but you don't see it on Clang? That strikes me as very unusual. -- Regards, Peter Geoghegan
