pgbench: INSERT workload, FK indexes, filler fix - Mailing list pgsql-hackers

Attached is a combined diff for a set of related patches to the built-in pgbench workloads.  One commit adds an INSERT workload.  One fixes the long standing 0 length filler issue.  A new --extra-indexes option adds the indexes needed for lookups added by the --foreign-keys option.

The commits are independent but overlap in goals.  I'm grouping them here mainly to consolidate this message, covering the feedback leading to this particular combination plus a first review from me.  More graphs etc. coming as my pgbench toolchain settles down again.

Code all by David Christensen based on vague specs from me, errors probably mine, changes are also at https://github.com/pgguru/postgres/commits/pgbench-improvements  David ran through the pgbench TAP regression tests and we're thinking about how to add more for changes like this.  Long term that collides with performance testing for things like CREATE INDEX, which I've done some work on myself recently in pgbench-tools.

After bouncing the possibilities around a little, David and I thought this specific set of changes might be the right amount of change for one PG version.  Core development could bite on all these pgbench changes or even more [foreshadowing] as part of a themed rework of pgbench's workload that's known to adjust results a bit, so beware direct comparisons to old versions.  That's what I'd prefer to do, a break it all at once strategy for these items and whatever else we can dig up this cycle.  I'll do my usual thing to help with that, starting with more benchmark graphs of this patch and such once my pgbench toolchain settles again.

To me pgbench should continue to demonstrate good PostgreSQL client behavior, and all this is just modernizing polish.  Row size and indexing matter of course, but none of these changes really alter the fundamentals of pgbench results.  With modern hardware acceleration, the performance drag due to the increased size of the filler is so much further down in the benchmark noise from where I started at with PG.  The $750 USD AMD retail chip in my basement lab pushes 1M TPS of prepared SELECT statements over sockets.  Plus or minus 84 bytes per row in a benchmark database doesn't worry me so much anymore.  Seems down there with JSON overhead as a lost micro optimization fight nowadays.

# Background:  pgbench vs. sysbench

This whole rework idea came from a performance review pass where I compared pgbench and sysbench again, as both have evolved a good bit since my last comparison.  All of the software defined storage testing brewing right now is shining a brighter light on both tools lately than I've seen in a while.

The goal I worked on a bit (with Joe Conway and RedHat, thank you to our sponsors) was how to make both tools closer to equal when performing similar tasks.  pgbench can duplicate the basics of the sysbench OLTP workload easily enough, running custom pgbench scripts against the generated pgbench_accounts and/or the initially empty pgbench_history.  Joe and I did some work on sysbench to improve its error handling to where it reconnected automatically as part of that.  How to add a reconnection feature to pgbench is a struggle because of where it fits between PG's typical connection and connection pooler abstractions; different story than this one. sysbench had the basics and just needed some error handling bug fixes, which might even have made their way upstream.  These three patches are the changes I thought core PG could use in parallel, as a mix of correctness, new features, and fair play in benchmarking.# INSERT workload

The easiest way to measure the basic COMMIT overhead of network storage is by doing an INSERT into an empty database and seeing the latency.  I've been doing that regularly since 9.1 added sync rep and that was the easiest way to test client scaling.  From my perspective as an old CRUD app writer, creating a row is the main interesting operation that's not already available in pgbench.  (No one has a DELETE heavy workload for very long)

Some chunk of pgbench users are trying to do that job now using the built-ins, and none of the options fit well.  Anything that touches the accounts table becomes heavily wrapped into the checkpoint cycle, and extracting signal from checkpoint noise is so hard dudes charge for books about it.  In this context I trust INSERT results more than I do the output from pg_test_fsync, which is too low level for me to recommend as a general-purpose tool.

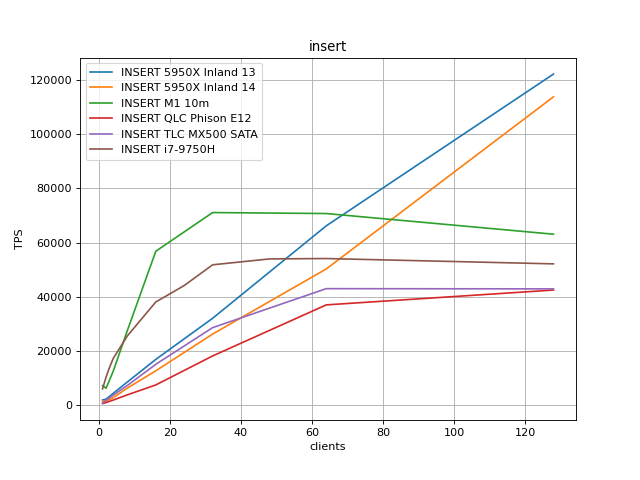

For better or worse pgbench is a primary tool in that role to PG customers, and the INSERT scaling looks great all over.  I've attached an early sample comparing 5 models of SSD to show it; what looks like a PG14 regression there is a testing artifact I'm working on.

The INSERT workload is useful with or without the history indexes, which again as written here only are created if you ask for the FKs.  When I do these performance studies of INSERT scaling as a new history table builds, for really no good reason other than my curiosity, the slowdowns from whether the pgbench_history has keys on it seem like basic primary key overhead to me.

# FK indexes

The new extra index set always appears if you turn on FKs after this change.  Then there's also the original path to turn on the indexes but not the FKs.

As I don't consider the use case of FKs without indexes to exist in the wild, I was surprised at the current state of things, that you could even have FKs but not the associated indexes.  I have not RTFA for it but I'd wager it's been brought up before.  In that case, +1 from me and David for this patch's view of database correctness I guess.

On a fresh pgbench database, the history table is empty and only the accounts table has serious size to it.  Adding indexes to the other tables, like this patch does, has light overhead during the creation cycle.

My take on INSERT/UPDATE workloads that once you're hitting disk and have WAL changes, whether one or three index blocks are touched each time on the small tables is so much more of a checkpoint problem than anything else.  The overhead these new indexes add should be in the noise of the standard pgbench "TPC-B (sort of)" workload.

The index overhead only gets substantial once you've run pgbench long enough that history has some size to it.  The tiny slice of people using pgbench for long-term simulation--which might only be me--are surely sophisticated enough to deal with index overhead increasing from zero to normal primary key index overhead.

I personally would prefer to see pgbench lead by example here, that tables related this way should be indexed with FKs by default, as the Right Way to do such things.  There's a slow deprecation plan leading that way possible from here.  This patch set adds options to add those indexes, and slowly those options could become the defaults.  Or there's the break it all at once and the FK+Index path is the new default path forward, and users would have to turn it off if they want to reduce overhead.

# filler

Every few years a customer I deal with discovers pgbench's generated tables don't really fill its filler column.  I think on modern hardware it's time to pay for that fully, as not as scary of a performance regression.  memcpy() is AVX accelerated for me on Linux now; it's not the old C standard library doing the block work.  When I field detailed questions about the filler, why it's length is 0, how the problem was introduced, and why it was never fixed before, it's not the best look.

From port 5432 you can identify if a patched pgbench client created the database like this:

    pgbench# SELECT length(filler) FROM pgbench_accounts LIMIT 1;
    length | 84

That is 0 in HEAD.  I'd really prefer not to have to pause and explain this filler thing again.  It looks a little too much like benchmark mischief for my comfort, which the whole sysbench comparison really highlighted again.
