Thanks for your reply, hoping Support may help me to find the issue.

Try to clear some things of my setup, to See if that helps:

For the moment I can get it to work with tool DBeaver-Windows, with Kerberos/AD.
also psql for Linux works, with Kerberos/AD.
AWS setup is a lot of steps, not going into that now, but that works, since DBeaver works and psql in Linux also works
We are running AWS RDS Postgres/Aurora DB version 13.4, so not able to login to DB server.

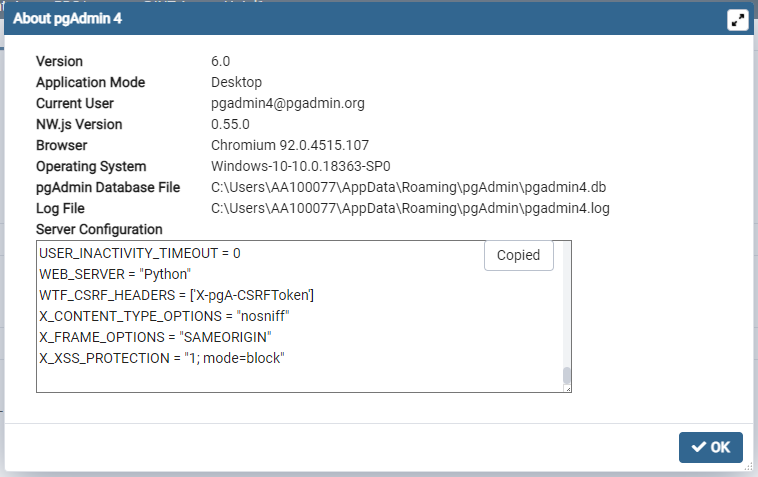

pgAdmin Desktop 6.0 , see below

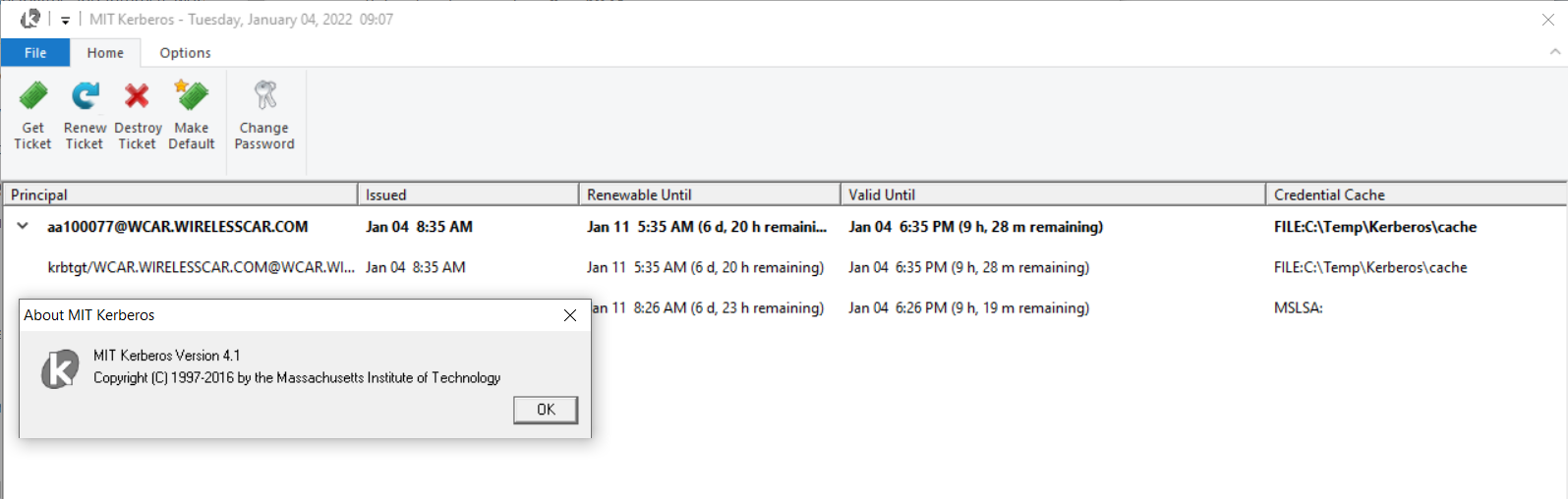

MIT Kerberos, see below

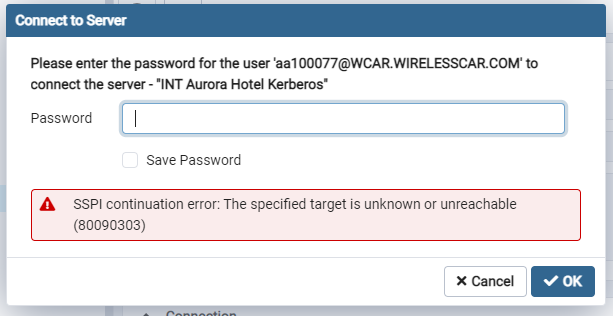

Connection error in pgadmin, see below
Connection error in psql, see below





Parameter settings:

ALLOW_SAVE_PASSWORD = True

ALLOW_SAVE_TUNNEL_PASSWORD = False

APP_COPYRIGHT = "Copyright (C) 2013 - 2021, The pgAdmin Development Team"

APP_ICON = "pg-icon"

APP_NAME = "pgAdmin 4"

APP_RELEASE = 6

APP_REVISION = 0

APP_SUFFIX = ""

APP_VERSION = "6.0"

APP_VERSION_EXTN = ('.css', '.js', '.html', '.svg', '.png', '.gif', '.ico')

APP_VERSION_INT = 60000

APP_VERSION_PARAM = "ver"

AUTHENTICATION_SOURCES = ['internal', 'kerberos']

CA_FILE = "C:\app\pgAdmin 4\v6\web\cacert.pem"

CHECK_EMAIL_DELIVERABILITY = False

CHECK_SESSION_FILES_INTERVAL = 24

CHECK_SUPPORTED_BROWSER = True

COMPRESS_LEVEL = 9

COMPRESS_MIMETYPES = ['text/html', 'text/css', 'text/xml', 'application/json', 'application/javascript']

COMPRESS_MIN_SIZE = 500

CONSOLE_LOG_FORMAT = "%(asctime)s: %(levelname)s           %(name)s:       %(message)s"

CONSOLE_LOG_LEVEL = 30

CONTENT_SECURITY_POLICY = "default-src ws: http: data: blob: 'unsafe-inline' 'unsafe-eval';"

COOKIE_DEFAULT_DOMAIN = None

COOKIE_DEFAULT_PATH = "/"

DATA_DIR = "C:\Users\AA100077\AppData\Roaming\pgAdmin"

DEBUG = False

DEFAULT_BINARY_PATHS = {'pg': '$DIR/../runtime', 'ppas': ''}

DEFAULT_SERVER = "127.0.0.1"

DEFAULT_SERVER_PORT = 5050

DESKTOP_USER = pgadmin4@pgadmin.org

EFFECTIVE_SERVER_PORT = 50685

ENABLE_BINARY_PATH_BROWSING = False

ENABLE_PSQL = True

ENHANCED_COOKIE_PROTECTION = True

FILE_LOG_FORMAT = "%(asctime)s: %(levelname)s          %(name)s:       %(message)s"

FILE_LOG_LEVEL = 30

HELP_PATH = "../../../docs/en_US/html/"

IS_WIN = True

KERBEROS_CCACHE_DIR = "C:\Temp\Kerberos\cache"

KRB_APP_HOST_NAME = "127.0.0.1"

KRB_AUTO_CREATE_USER = False

KRB_KTNAME = "<KRB5_KEYTAB_FILE>"

LANGUAGES = {'en': 'English', 'zh': 'Chinese (Simplified)', 'cs': 'Czech', 'fr': 'French', 'de': 'German', 'it': 'Italian', 'ja': 'Japanese', 'ko': 'Korean', 'pl': 'Polish', 'ru': 'Russian', 'es': 'Spanish'}

LDAP_ANONYMOUS_BIND = False

LDAP_AUTO_CREATE_USER = True

LDAP_BASE_DN = "<Base-DN>"

LDAP_BIND_USER = None

LDAP_CA_CERT_FILE = ""

LDAP_CERT_FILE = ""

LDAP_CONNECTION_TIMEOUT = 10

LDAP_KEY_FILE = ""

LDAP_SEARCH_BASE_DN = "<Search-Base-DN>"

LDAP_SEARCH_FILTER = "(objectclass=*)"

LDAP_SEARCH_SCOPE = "SUBTREE"

LDAP_SERVER_URI = "ldap://<ip-address>:<port>"

LDAP_USERNAME_ATTRIBUTE = "<User-id>"

LDAP_USE_STARTTLS = False

LOGIN_ATTEMPT_FIELDS = ['password']

LOGIN_BANNER = ""

LOG_FILE = "C:\Users\AA100077\AppData\Roaming\pgAdmin\pgadmin4.log"

LOG_ROTATION_AGE = 1440

LOG_ROTATION_MAX_LOG_FILES = 90

LOG_ROTATION_SIZE = 10

MAIL_DEBUG = False

MAIL_PORT = 25

MAIL_SERVER = "localhost"

MAIL_USERNAME = ""

MAIL_USE_SSL = False

MAIL_USE_TLS = False

MASTER_PASSWORD_REQUIRED = True

MAX_LOGIN_ATTEMPTS = 3

MAX_QUERY_HIST_STORED = 20

MAX_SESSION_IDLE_TIME = 60

MODULE_BLACKLIST = ['test']

NODE_BLACKLIST = []

OAUTH2_AUTO_CREATE_USER = True

OAUTH2_CONFIG = [{'OAUTH2_NAME': None, 'OAUTH2_DISPLAY_NAME': '<Oauth2 Display Name>', 'OAUTH2_CLIENT_ID': None, 'OAUTH2_CLIENT_SECRET': None, 'OAUTH2_TOKEN_URL': None, 'OAUTH2_AUTHORIZATION_URL': None, 'OAUTH2_API_BASE_URL': None, 'OAUTH2_USERINFO_ENDPOINT': None, 'OAUTH2_SCOPE': None, 'OAUTH2_ICON': None, 'OAUTH2_BUTTON_COLOR': None}]

ON_DEMAND_RECORD_COUNT = 1000

OVERRIDE_USER_INACTIVITY_TIMEOUT = True

PG_DEFAULT_DRIVER = "psycopg2"

PROXY_X_FOR_COUNT = 1

PROXY_X_HOST_COUNT = 0

PROXY_X_PORT_COUNT = 1

PROXY_X_PREFIX_COUNT = 0

PROXY_X_PROTO_COUNT = 1

SECURITY_EMAIL_SENDER = "no-reply@localhost"

SECURITY_EMAIL_SUBJECT_PASSWORD_CHANGE_NOTICE = "Your password for pgAdmin 4 has been changed"

SECURITY_EMAIL_SUBJECT_PASSWORD_NOTICE = "Your pgAdmin 4 password has been reset"

SECURITY_EMAIL_SUBJECT_PASSWORD_RESET = "Password reset instructions for pgAdmin 4"

SECURITY_EMAIL_VALIDATOR_ARGS = {'check_deliverability': False}

SEND_FILE_MAX_AGE_DEFAULT = 31556952

SERVER_MODE = False

SESSION_COOKIE_DOMAIN = None

SESSION_COOKIE_HTTPONLY = True

SESSION_COOKIE_NAME = "pga4_session"

SESSION_COOKIE_SAMESITE = "Lax"

SESSION_COOKIE_SECURE = False

SESSION_DB_PATH = "C:\Users\AA100077\AppData\Roaming\pgAdmin\sessions"

SESSION_EXPIRATION_TIME = 7

SESSION_SKIP_PATHS = ['/misc/ping']

SETTINGS_SCHEMA_VERSION = 31

SHOW_GRAVATAR_IMAGE = True

SQLALCHEMY_TRACK_MODIFICATIONS = False

SQLITE_PATH = "C:\Users\AA100077\AppData\Roaming\pgAdmin\pgadmin4.db"

SQLITE_TIMEOUT = 500

STORAGE_DIR = "C:\Users\AA100077\AppData\Roaming\pgAdmin\storage"

STRICT_TRANSPORT_SECURITY = "max-age=31536000; includeSubDomains"

STRICT_TRANSPORT_SECURITY_ENABLED = False

SUPPORT_SSH_TUNNEL = True

TEST_SQLITE_PATH = "C:\Users\AA100077\AppData\Roaming\pgAdmin\test_pgadmin4.db"

THREADED_MODE = True

UPGRADE_CHECK_ENABLED = True

UPGRADE_CHECK_KEY = "pgadmin4"

UPGRADE_CHECK_URL = https://www.pgadmin.org/versions.json

USER_INACTIVITY_TIMEOUT = 0

WEB_SERVER = "Python"

WTF_CSRF_HEADERS = ['X-pgA-CSRFToken']

X_CONTENT_TYPE_OPTIONS = "nosniff"

X_FRAME_OPTIONS = "SAMEORIGIN"

X_XSS_PROTECTION = "1; mode=block"

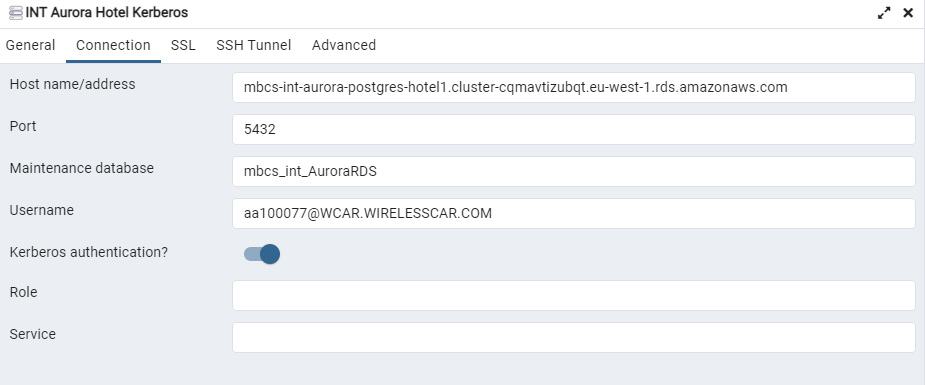

Pgadmin-connection









PSQL login error

C:\app\PostgreSQL\14\bin>psql --version

psql (PostgreSQL) 14.1



C:\app\PostgreSQL\14\bin>psql -d mbcs_int_AuroraRDS -h mbcs-int-aurora-postgres-hotel1.cluster-cqmavtizubqt.eu-west-1.rds.amazonaws.com -U aa100077@WCAR.WIRELESSCAR.COM -p 5432

psql: error: connection to server at "mbcs-int-aurora-postgres-hotel1.cluster-cqmavtizubqt.eu-west-1.rds.amazonaws.com" (10.183.41.9), port 5432 failed: SSPI continuation error: The specified target is unknown or unreachable

(80090303)





AWS Setup have been done, according to:

https://aws.amazon.com/blogs/database/preparing-on-premises-and-aws-environments-for-external-kerberos-authentication-for-amazon-rds/





From: Khushboo Vashi <khushboo.vashi@enterprisedb.com>
Sent: den 4 januari 2022 06:21
To: Börje Johansson <borje.johansson.2@wirelesscar.com>
Cc: pgAdmin Support <pgadmin-support@postgresql.org>
Subject: Re: pgAdmin support for Kerberos on AWS Cloud DB ?



CAUTION: This email originated from outside of the organization. Do not click links or open attachments unless you can confirm the sender and know the content is safe.

Hi Börje,



[Looping pgAdmin support....]



On Mon, Jan 3, 2022 at 7:46 PM Börje Johansson <borje.johansson.2@wirelesscar.com> wrote:

Hi Khushboo



My name is Börje and working at WirelessCar in Sweden.

I’m working with Databases and Postgres a lot.

I read your description of Kerberos authentication, that was great!



We have introduce Kerberos/AD for our AWS Cloud Postgres databases, and trying pgAdmin to work here…

We have mostly Windows Client and cannot get it to work.

If your pgAdmin is installed on Windows and installation has been done by pgAdmin installers (by default pgAdmin is in desktop mode on Windows (single user mode)), then it should work.



Share the details of the steps you performed to setup the Kerberos on AWS as well as on Windows and pgAdmin.



Thanks,

Khushboo



Do you know if there are support for Windows Clients against AWS Cloud Postgres RDS ?





Thanks,

Khushboo



Rgds Börje
