On 2020-09-04 11:53:04 -0700, Andres Freund wrote:
> There's a seperate benchmark that I found to be quite revealing that's
> far less dependent on scheduler behaviour. Run two pgbench instances:
>
> 1) With a very simply script '\sleep 1s' or such, and many connections
> (e.g. 100,1000,5000). That's to simulate connections that are
> currently idle.
> 2) With a normal pgbench read only script, and low client counts.
>
> Before the changes 2) shows a very sharp decline in performance when the
> count in 1) increases. Afterwards its pretty much linear.
>
> I think this benchmark actually is much more real world oriented - due
> to latency and client side overheads it's very normal to have a large
> fraction of connections idle in read mostly OLTP workloads.
>
> Here's the result on my workstation (2x Xeon Gold 5215 CPUs), testing
> 1f42d35a1d6144a23602b2c0bc7f97f3046cf890 against
> 07f32fcd23ac81898ed47f88beb569c631a2f223 which are the commits pre/post
> connection scalability changes.
>
> I used fairly short pgbench runs (15s), and the numbers are the best of
> three runs. I also had emacs and mutt open - some noise to be
> expected. But I also gotta work ;)
>
> | Idle Connections | Active Connections | TPS pre | TPS post |
> |-----------------:|-------------------:|--------:|---------:|
> | 0 | 1 | 33599 | 33406 |
> | 100 | 1 | 31088 | 33279 |
> | 1000 | 1 | 29377 | 33434 |
> | 2500 | 1 | 27050 | 33149 |
> | 5000 | 1 | 21895 | 33903 |
> | 10000 | 1 | 16034 | 33140 |
> | 0 | 48 | 1042005 | 1125104 |
> | 100 | 48 | 986731 | 1103584 |
> | 1000 | 48 | 854230 | 1119043 |
> | 2500 | 48 | 716624 | 1119353 |
> | 5000 | 48 | 553657 | 1119476 |
> | 10000 | 48 | 369845 | 1115740 |

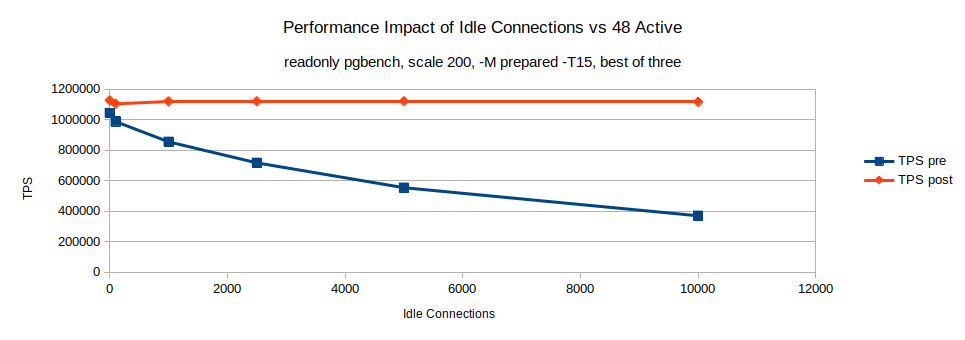

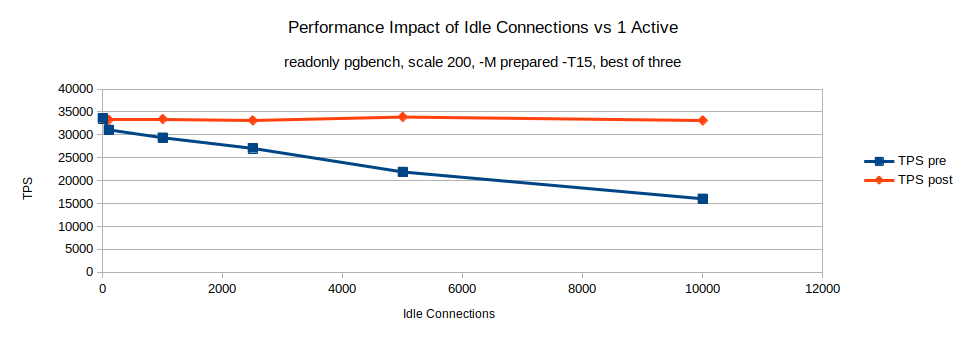

Attached in graph form.
Greetings,
Andres Freund
