Re: Checkpointer write combining - Mailing list pgsql-hackers

Hi Milanie,

Thanks for updating the patch set. I review 1-6 and got a few more small comments. I didn’t review 0007 as it’s marked as WIP.

>
> - Melanie
> <v7-0001-Refactor-goto-into-for-loop-in-GetVictimBuffer.patch><v7-0002-Split-FlushBuffer-into-two-parts.patch><v7-0003-Eagerly-flush-bulkwrite-strategy-ring.patch><v7-0004-Write-combining-for-BAS_BULKWRITE.patch><v7-0005-Add-database-Oid-to-CkptSortItem.patch><v7-0006-Implement-checkpointer-data-write-combining.patch><v7-0007-WIP-Refactor-SyncOneBuffer-for-bgwriter-only.patch>

1 - 0001
```
--- a/src/include/storage/buf_internals.h
+++ b/src/include/storage/buf_internals.h
@@ -421,6 +421,12 @@ ResourceOwnerForgetBufferIO(ResourceOwner owner, Buffer buffer)
 /*
  * Internal buffer management routines
  */
+
+
+/* Note: these two macros only work on shared buffers, not local ones! */
```

Nit: here you added two empty lines, I think we need only 1.

2 - 0002
```
+static void
+CleanVictimBuffer(BufferDesc *bufdesc,
+                                 bool from_ring, IOContext io_context)
+{

-       /* Find smgr relation for buffer */
-       if (reln == NULL)
-               reln = smgropen(BufTagGetRelFileLocator(&buf->tag), INVALID_PROC_NUMBER);
+       XLogRecPtr      max_lsn = InvalidXLogRecPtr;
+       LWLock     *content_lock;
```

Nit: the empty line after “{“ should be removed.

3 - 0003
```
+/*
+ * Return the next buffer in the ring or InvalidBuffer if the current sweep is
+ * over.
+ */
+Buffer
+StrategySweepNextBuffer(BufferAccessStrategy strategy, int *sweep_cursor)
+{
+       if (++(*sweep_cursor) >= strategy->nbuffers)
+               *sweep_cursor = 0;
+
+       return strategy->buffers[*sweep_cursor];
+}
```

Feels the function comment is a bit confusing, because the function code doesn’t really perform sweep, the function is just a getter. InvalidBuffer just implies the current sweep is over.

Maybe rephrase to something like: “Return the next buffer in the range. If InvalidBuffer is returned, that implies the current sweep is done."

4 - 0003
```
static BufferDesc *
NextStratBufToFlush(BufferAccessStrategy strategy,
Buffer sweep_end,
XLogRecPtr *lsn, int *sweep_cursor)
``

“Strat” is confusing. I think it’s the short version of “Strategy”. As this is a static function, and other function names all have the whole word of “strategy”, why don’t also use the whole word in this function name as well?

5 - 0004
```
+uint32
+StrategyMaxWriteBatchSize(BufferAccessStrategy strategy)
+{
+       uint32          max_possible_buffer_limit;
+       uint32          max_write_batch_size;
+       int                     strategy_pin_limit;
+
+       max_write_batch_size = io_combine_limit;
+
+       strategy_pin_limit = GetAccessStrategyPinLimit(strategy);
+       max_possible_buffer_limit = GetPinLimit();
+
+       max_write_batch_size = Min(strategy_pin_limit, max_write_batch_size);
+       max_write_batch_size = Min(max_possible_buffer_limit, max_write_batch_size);
+       max_write_batch_size = Max(1, max_write_batch_size);
+       max_write_batch_size = Min(max_write_batch_size, io_combine_limit);
+       Assert(max_write_batch_size < MAX_IO_COMBINE_LIMIT);
+       return max_write_batch_size;
+}
```

This implementation is hard to understand. I tried to simplify it:
```
uint32
StrategyMaxWriteBatchSize(BufferAccessStrategy strategy)
{
        int strategy_pin_limit = GetAccessStrategyPinLimit(strategy);
        uint32 max_write_batch_size = Min(GetPinLimit(), (uint32)strategy_pin_limit);

        /* Clamp to io_combine_limit and enforce minimum of 1 */
        if (max_write_batch_size > io_combine_limit)
                max_write_batch_size = io_combine_limit;
        if (max_write_batch_size == 0)
                max_write_batch_size = 1;

        Assert(max_write_batch_size < MAX_IO_COMBINE_LIMIT);
        return max_write_batch_size;
}
```

Best regards,
--
Chao Li (Evan)
HighGo Software Co., Ltd.
https://www.highgo.com/



Hello All,

As per reference to the previous mails, I understood the changes made and had tried to replicate the patches into the source code for the bug fix but it didn't show any significant bug. Also I ran some verification tests for the recent changes related to batched write statistics during checkpoints.

Below are my observations and results:

Test Setup

• PostgreSQL version: 19devel (custom build)

• OS: Ubuntu Linux

• Port: 55432

• Database: postgres

• Test tool: pgbench

• Duration: 120 seconds

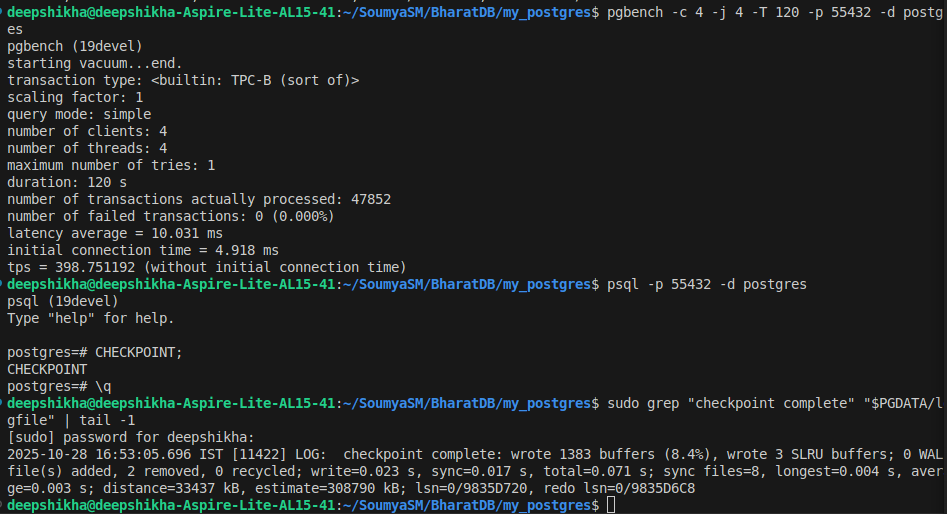

• Command used: pgbench -c 4 -j 4 -T 120 -p 55432 -d postgres

The total time closely matches the sum of write and sync times, with only a small overhead (expected for control file updates).

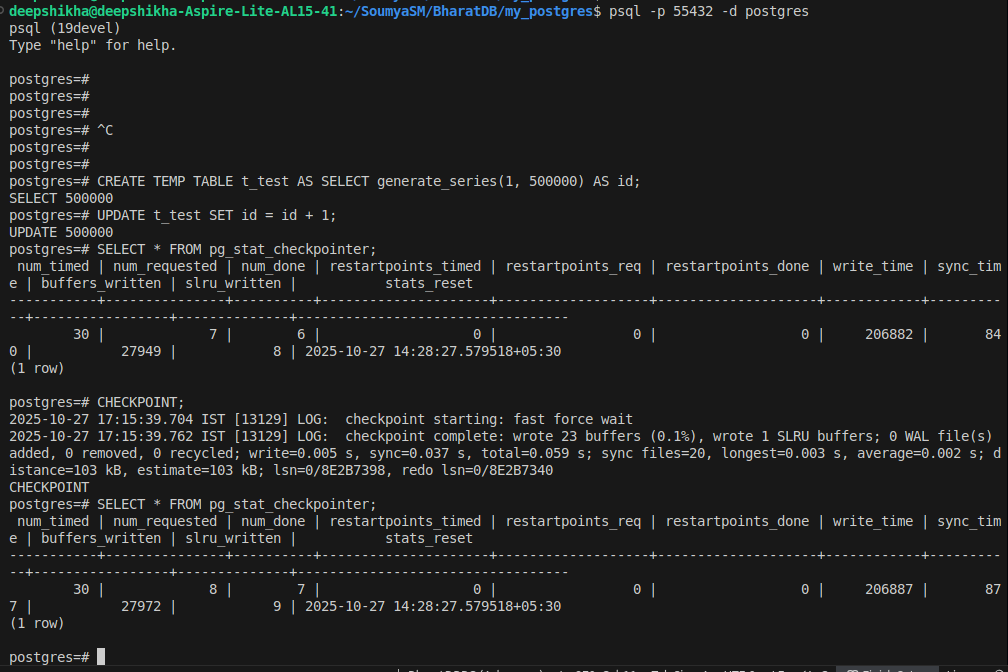

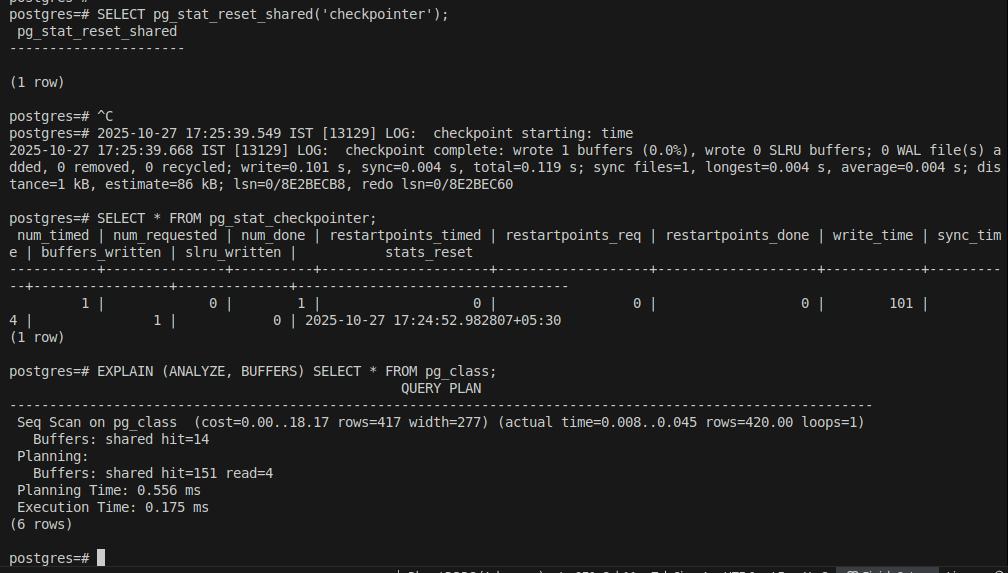

Checkpoint stats in pg_stat_checkpointer also updated correctly, with no missing or duplicated values.

Expected behavior observed:

• write + sync ≈ total (no zero, truncation, or aggregation bug)

• Buffer counts and timing scale realistically with workload

• No evidence of under- or over-counted times

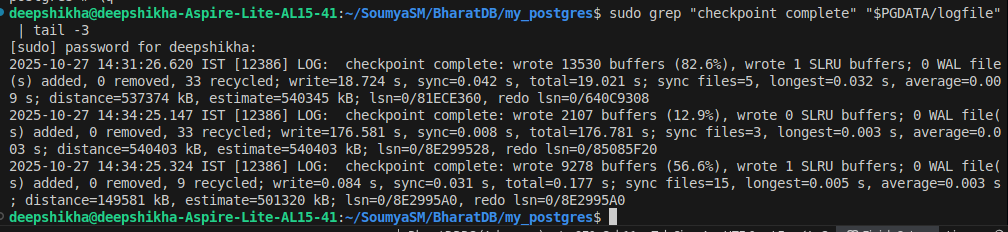

• Checkpoint stats properly recorded in log and pg_stat_checkpointer

Inference:

• The reported write, sync, and total timings are consistent and realistic.

• No anomalies or timing mismatches were seen.

• Checkpoint performance seems stable and accurate under moderate load.

• No regression or counter accumulation issues detected.
