Hello,

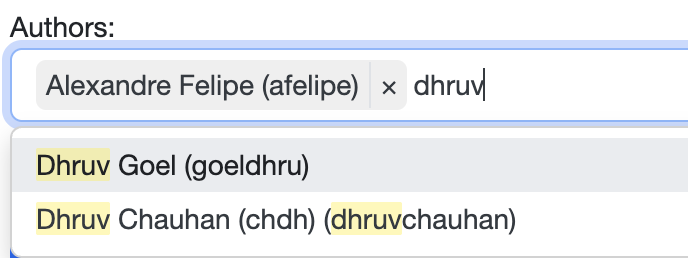

I want to create a commit fest entry for this, but I can't find Dhruv Aron there.

On Mon, Sep 14, 2026 at 7:34 PM Alexandre Felipe <o.alexandre.felipe@gmail.com> wrote:

v4.0 is not so fancy, but it works.

No apparent bugs on this version, passing check-world [1]

The best test to stress this feature is in the recovery suite [2]

The main open question is whether we should add a second attempt if we have

a lookup miss and the partition is locked (who knows it was locked by someone

inserting the tag we want).

I am curious to see the results of this with some real pgbench. So I would be

grateful if some of you can stress that out.

This version keeps the lock for insertion (and deletions), on the first failure at

lookup, it acquires a LW_SHARED there too. These failures are very rare

so the impact of that lock in performance should be negligible compared to

acquiring the lock for every lookup.

Not having to acquire a lock on its own can make the buffer lookup faster (buffer hits).

I am pasting three tables from my own benchmarks, from which I would like

to highlight a few results.

LWLockAcquire, LWLockRelease (nothing in between)

Uncontended with 10 workers: 218ns

Contended with 10 workers : 555 microseconds in one run 1.03ms in the other

Notice that the average is above q3 (0.57 quantile), indicating that it is very

skewed, it is fast, but when it gets slow it becomes very slow. And this is

precisely what I have seen with LWLock BufferMapping waits, they either

don't show up, or they take the cluster down (I am not a DBA, so it is anecdotal

evidence).

Average uncontended hit and miss.

2 workers, with lock (36, 38)

10 workers, with lock (225,409)

10 workers, without lock (156,252)

 workers | op / wait  |   avg   |   q1    |   med   |   q3    | count
---------+------------+---------+---------+---------+---------+--------
       2 | delete / 0 |   42.58 |   39.76 |   42.28 |   44.28 | 127999
       2 | delete / 1 | 5625.00 | 5625.00 | 5625.00 | 5625.00 |      1
       2 | hit / 0    |   36.01 |   33.86 |   35.81 |   37.77 | 128000
       2 | insert / 0 |   36.59 |   35.11 |   36.47 |   38.41 | 128000
       2 | LWLock / 0 |   35.59 |   33.23 |   35.17 |   37.14 | 128000
       2 | miss / 0   |   37.63 |   35.78 |   37.72 |   39.09 | 128000

 workers | op / wait  |    avg     |    q1     |    med    |     q3     | count
---------+------------+------------+-----------+-----------+------------+--------
      10 | delete / 0 |     792.11 |    166.58 |    225.58 |     277.75 | 119522
      10 | delete / 1 | 1844238.60 |  45823.00 | 470479.00 | 2568042.25 |    478
      10 | hit / 0    |     224.66 |     76.42 |    121.50 |     187.42 | 120000
      10 | insert / 0 |     952.21 |    104.25 |    180.58 |     246.42 | 119566
      10 | insert / 1 | 2154981.29 |  76708.00 | 703666.00 | 3334916.00 |    434
      10 | LWLock / 0 |     218.06 |     69.33 |    104.17 |     152.67 | 119987
      10 | LWLock / 1 | 1029929.62 | 126708.00 | 488459.00 |  836708.00 |     13
      10 | miss / 0   |     408.87 |     76.42 |    156.08 |     184.00 | 120000

 workers | op / wait  |    avg     |    q1     |    med    |     q3     | count
---------+------------+------------+-----------+-----------+------------+--------
      10 | delete / 0 |     628.94 |    166.58 |    236.08 |     291.85 | 119595
      10 | delete / 1 | 2135859.85 |  80125.00 | 704750.00 | 3329688.00 |    405
      10 | hit / 0    |     155.96 |     55.33 |    104.17 |     145.67 | 120000
      10 | insert / 0 |     792.89 |    100.67 |    190.83 |     250.00 | 119634
      10 | insert / 1 | 2272327.08 | 114083.00 | 666959.00 | 3580042.00 |    366
      10 | LWLock / 0 |     305.68 |     69.50 |    107.58 |     159.75 | 119993
      10 | LWLock / 1 |  555255.86 |  77437.50 | 390458.00 |  528979.50 |      7
      10 | miss / 0   |     251.58 |     45.25 |     93.83 |     121.58 | 120000

1. With './configure'  '--prefix' ... '--without-icu' '--without-readline' '--enable-tap-tests' --enable-cassert && make -j -s clean && make -j -s && make check-world

2. make -C src/test/recovery check PROVE_TESTS="t/027_stream_regress.pl"

PS.: I nearly forgot to attach the patches 🤣
